User Manual

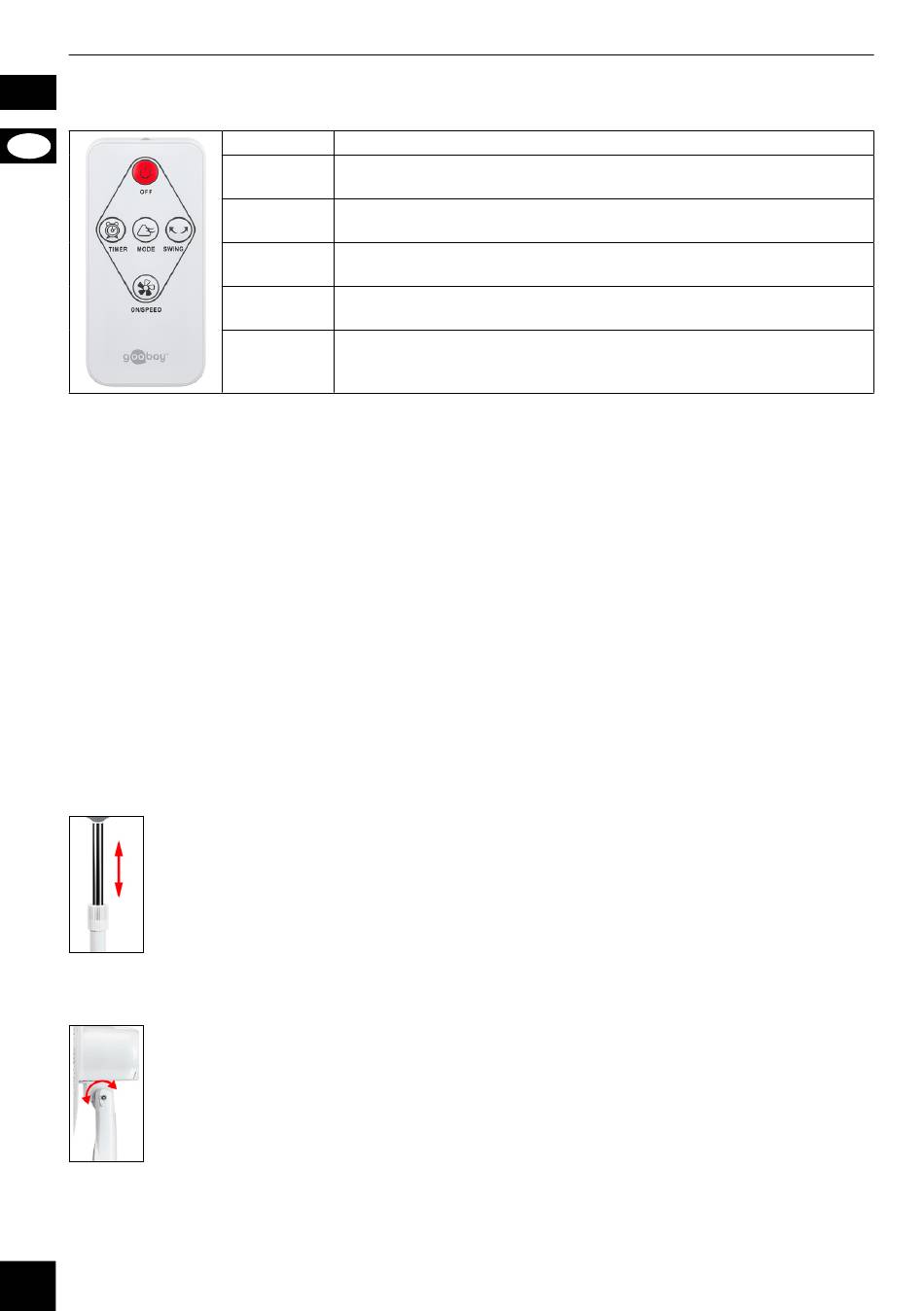

7.2 Explanation of the buttons

You can also control the fan via the remote control.
The following table describes the function of the buttons on the remote control.
EN
7.3 Changing the battery
If necessary, replace the empty battery with a new one of the same type. See chapter 2.4.
1. Open the battery compartment (20) by pushing the small lever to the side and then pulling out the battery compartment.
2. Remove the empty battery.
3. Place the new battery in the battery compartment with the positive pole facing upwards.
4. Close the battery compartment again.
5. Dispose of the empty battery properly.
See also chapter 10.2.
8

Connection and operation

8.1 Commissioning
1. Select a suitable location for the fan.
Pay particular attention to the requirements mentioned in chapter 1 „Safety instructions".
2. Connect the fan's mains cable (17) to a free and easily accessible socket.
3. Turn the front of the fan in the direction you want to ventilate.
The fan is now ready for operation.
4. Set the power level, mode and timer function using the function buttons (16) or the remote control (12).
5. Switch off the fan after use.
8.2 Adjusting the height
You can adjust the height of the fan from 108 to 128 cm.
1. Unplug the mains cable from the socket before adjusting the height.
2. Turn the locking ring (19) anticlockwise to loosen it.
3. Weight down the base with your foot and grasp the fan by the housing where the function buttons and status indi-
4. Slide the upper part of the fan up or down until you have set the desired height and hold the fan at this position.
5. With the other hand, turn the locking ring clockwise to tighten it.
8.3 Adjusting the tilt angle
You can also adjust the fan's tilt angle.
1. Unplug the mains cable from the socket before adjusting the tilt angle.
2. Turn the locking screw (18) anticlockwise to loosen it.
3. Hold the fan by the blade guard and move it back and forth along the horizontal axis until you have set the desi-
4. With the other hand, turn the locking screw clockwise to tighten it.
15
Designation Description
OFF Press the button to switch off the fan.
Press the button to activate the timer function. Press the button again to extend the du-
TIMER
ration of the timer function.
MODE Press the button to set the desired mode.
SWING Press the button to switch the oscillation function on or off.
ON/SPEED Press the button to switch on the fan. Press the button again to select the power level.
cators are located.
The height of the fan is now adjusted.
red tilt angle. Hold the fan in this position.
The fan's tilt angle is now adjusted.
