Dimensions And Technical Data - Kranzle 41.259 7 Original-Betriebsanleitung Mit Ersatzteilliste

Table of Contents
Deutsch ......................................................................................... 2
English .........................................................................................10
DE - Deutsch Vor Inbetriebnahme Sicherheitshinweise lesen und beachten!
Bewahren Sie das Heft für einen späteren Gebrauch oder Nachbesitzer auf.
EN - English Read and conform safety instructions before use!
Keep the leaflet for later use or any subsequent owners.

Dimensions and technical data ......................................................................... 11

Cross-sectional view ........................................................................................ 12
Possibilities of mounting the hose reel ............................................................ 13
Mounting on walls and ceiling ........................................................................ 14
1. Purpose and application ............................................................................... 15
2. Hose mounting ............................................................................................ 15
3. Rearranging the hose outlet ........................................................................ 15
4. Mounting the hose reel ............................................................................... 16
5. Repairs ......................................................................................................... 16
6. Maintenances .............................................................................................. 17
7. Warning ....................................................................................................... 17
Guarantee ....................................................................................................... 17
Declaration of CE-Conformity for machines ..................................................... 17
Spare parts list ................................................................................................ 18
10
Dimensions and technical data
12
Dimensions and technical data
nominal wide/
Retractable hose Max.
Art.-Nr thread
length (NW 8) pressure
(see illustration F)
m mm inch bar
41.259 7 20 10 3/8" 300
41.259 8 30 10 3/8" 300

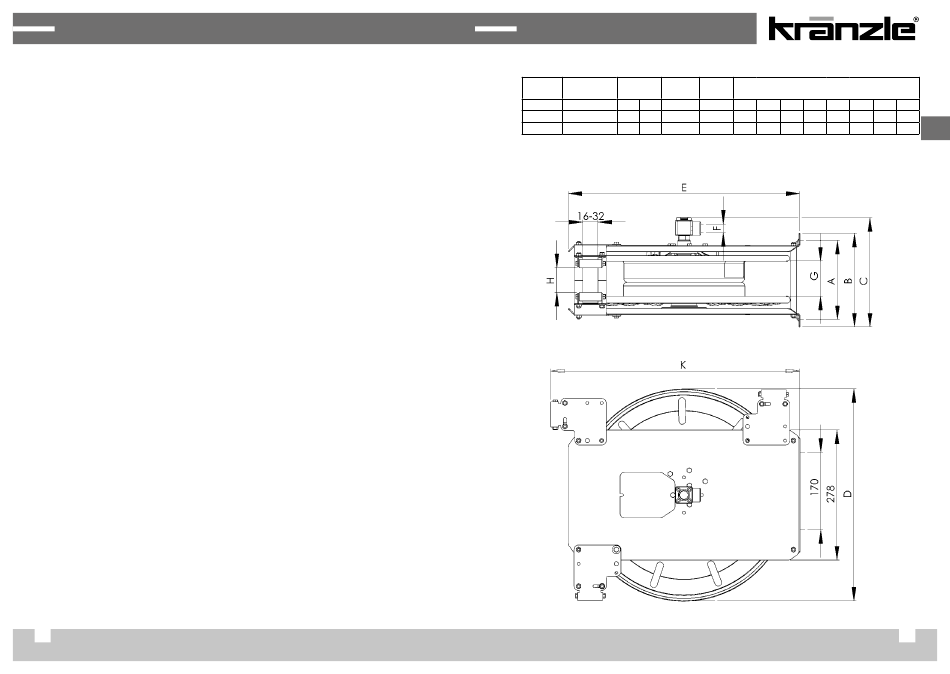

Schlauchaufroller Baureihe ST, Maßzeichnung
Montagemöglichkeiten des Schlaucheinlauffensters:
Standardposition : 1
Alternative Positionen : 2 u. 3
weight dimensions mm
kg A B C D E G H
16 176 206 239 400 440 75 48
18 226 256 304 460 500 125 106
GB
K
470
EN
530
11
