3.11 Adjusting the eyepiece diopter
setting
Your camera has a diopter adjustment system built into the eyepiece.
You can use this to adjust the eyepiece focus up to ±2 diopters,
making it easier to use the camera if you usually wear glasses.
To adjust the eyepiece diopter setting:

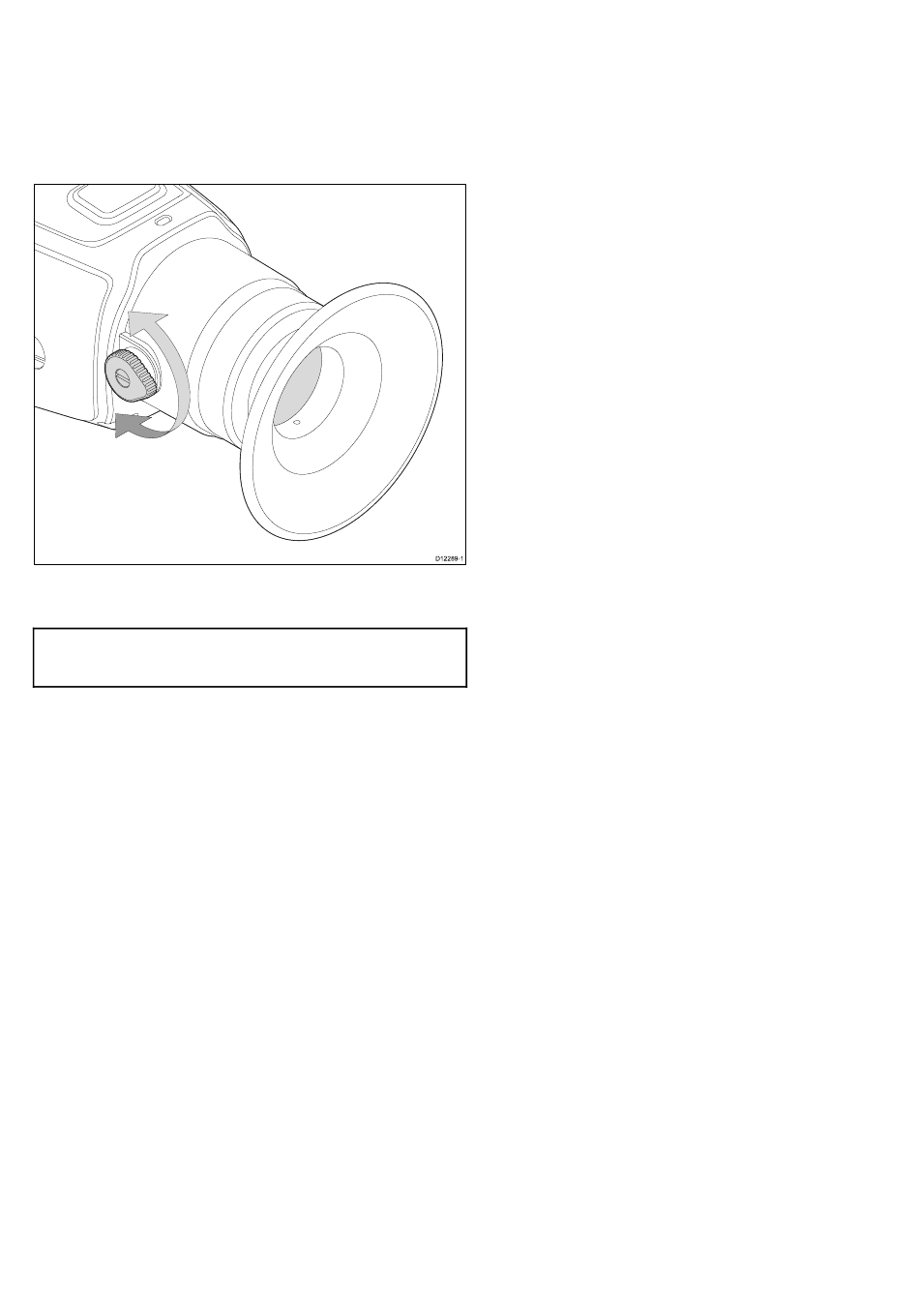

1. While looking through the eyepiece with the camera switched on,
slowly rotate the diopter control until the display appears in focus.
2. Once you have adjusted the diopter setting, leave the diopter
control in its new position unless someone else needs to use
the camera.
Note: When the pointed side of the diopter control is directed
towards the camera eyepiece, it is in its neutral position (zero
diopters).
