Kaba c-lever Kurzanleitung Seite 14

Quick Guide
14
EN

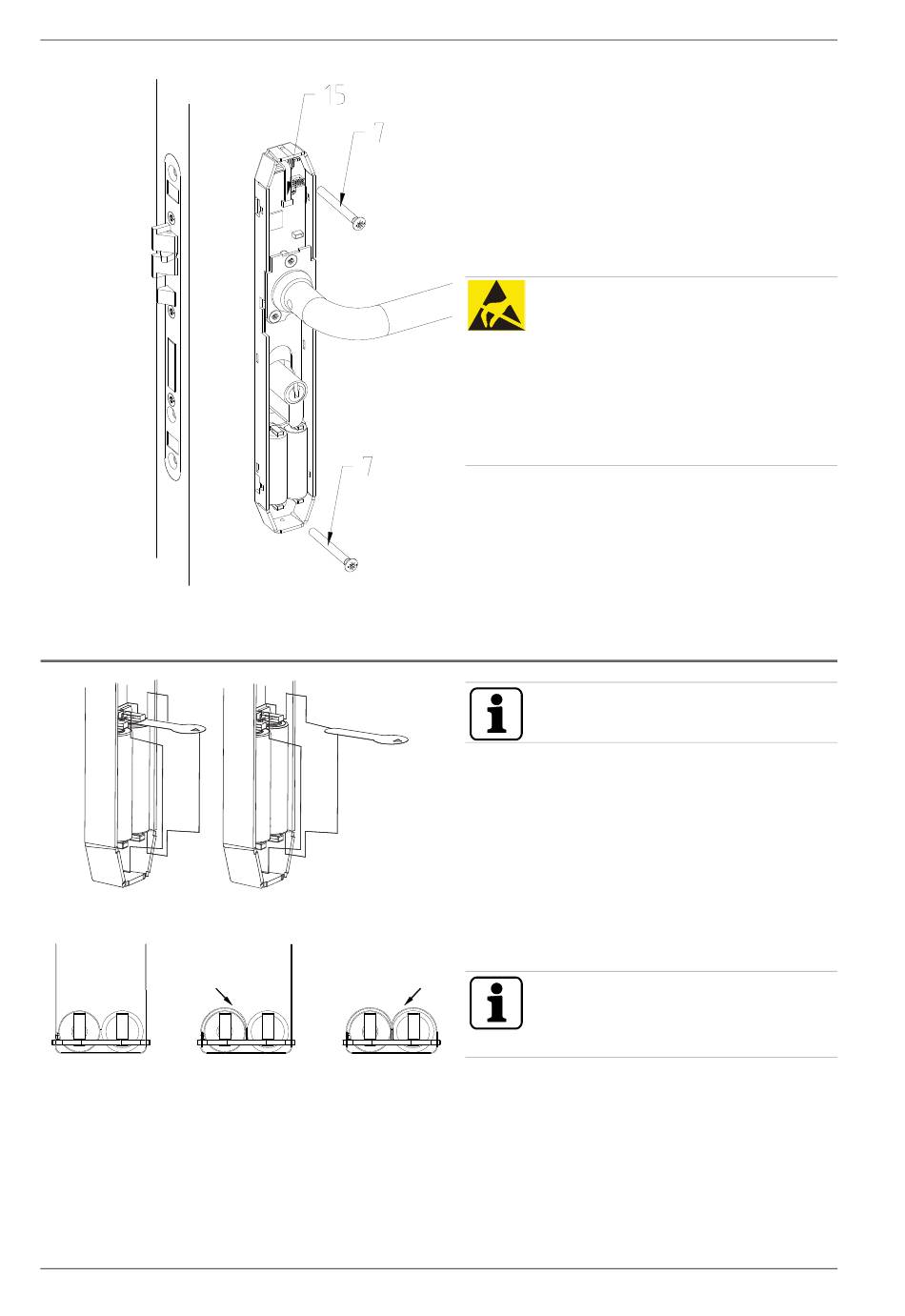

Put the inside plate (6) onto the spindle (5)
and locking cylinder (16) and fasten it to
the outside shield with the two fixing
screws (7).
Tightening torque: 2,5 ±0,5 Nm
Connect the antenna cord (15) to the plug
on the inside plate (6).
Pull the contact protection film out.
Slide the battery protection foil between
the batteries.
k2evo704xy-2013-09
ATTENTION: Printed circuit boards
can be damaged by electrostatic
discharge especially by direct
contact, but also by indirect
contact. Always wear an suitable
ESD earthing strap when installing
or repairing equipment!
NOTE: Pay attention to the correct
position of the batteries.
NOTE: Only use lithium batteries
on doors in an outside environ-
ment.
Installation
Kaba c-lever
