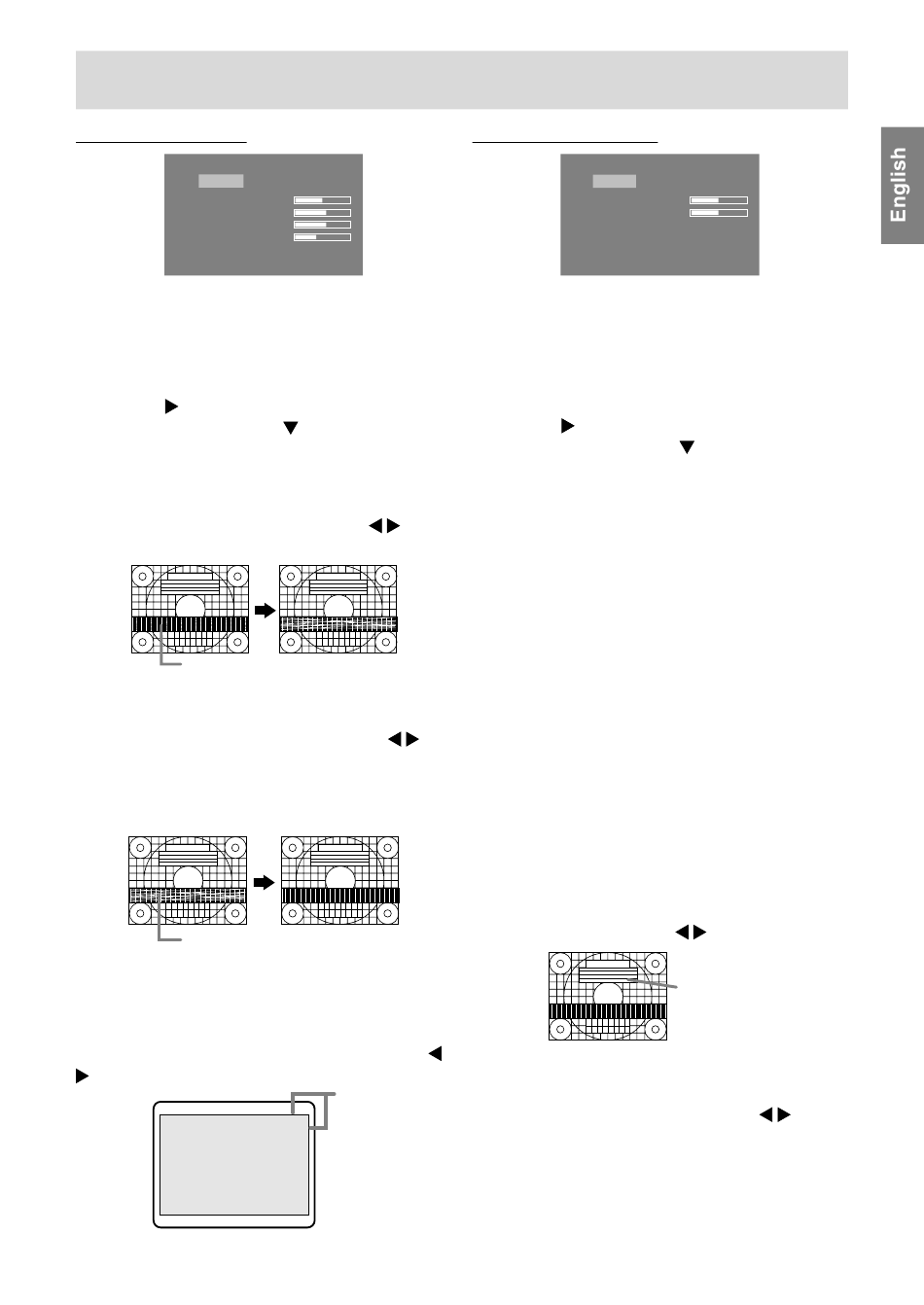

Adjusting the screen display and speaker volume
ADJUSTMENT Menu
ADJUSTMENT
MANUAL
CLOCK
PHASE
H-POS
V-POS
1024x768
V : 6 0Hz H : 4 8.4kHz
MANUAL: Individual menu options are manually
adjusted.
AUTO: Every menu option is automatically
adjusted.
Notes:
- Press the button to select [AUTO].
- To choose a menu option:
- To go to the next menu: MENU button
CLOCK
The figure below demonstrates how to adjust so
that vertical flicker noise is not emitted. (
buttons)
Vertical flicker noise
PHASE
The figure below demonstrates how to adjust so
that horizontal flicker noise is not emitted. (
buttons)
Note:
- Adjustments to PHASE should be made only
after CLOCK has been correctly set.
Horizontal flicker noise
H-POS (horizontal positioning) and V-POS
(vertical positioning)
To center the adjustment pattern within the
boundaries of the screen, adjust the left-right (H-
POS) values and the up-down (V-POS) values. (
buttons)
Adjustment
pattern
AUTO
127
16
200
29
/ MODE button
Screen frame
GAIN CONTROL Menu
GAIN CONTROL
MANUAL
BLACK LEVEL
CONTRAST
1024x768
V : 6 0Hz H : 4 8.4kHz
MANUAL: Individual menu options are manually
adjusted.
AUTO: Every menu option is automatically
adjusted using the Auto Gain Control*
function.
Notes:
- Press the button to select [AUTO].
- To choose a menu option:
- To go to the next menu: MENU button
* Auto Gain Control function
- The Auto Gain Control adjusts contrast and
black level based on the brightest and darkest
colors of the image displayed. If you are not
using the Adjustment Pattern it is necessary to
have black area and white area of at least 5 mm
x 5 mm on the screen. Adjustment may not be
possible without those areas.
- If the signal coming from the computer is
composite sync or sync on green, automatic
adjustment cannot be performed. Please perform
manual adjustment instead.
- If [OUT OF ADJUST] is displayed, perform
manual adjustment.
- When using the Auto Gain Control function, set
[WHITE BALANCE] to other than [USER]. If
[USER] is set, the Auto Gain Control function
cannot be used.
BLACK LEVEL
Total screen brightness can be adjusted while
watching the color pattern. (
CONTRAST
While watching the color pattern, adjustments can
be made so that all gradations appear. (
buttons)
19
AUTO
32
50
/ MODE button
buttons)
Color pattern
