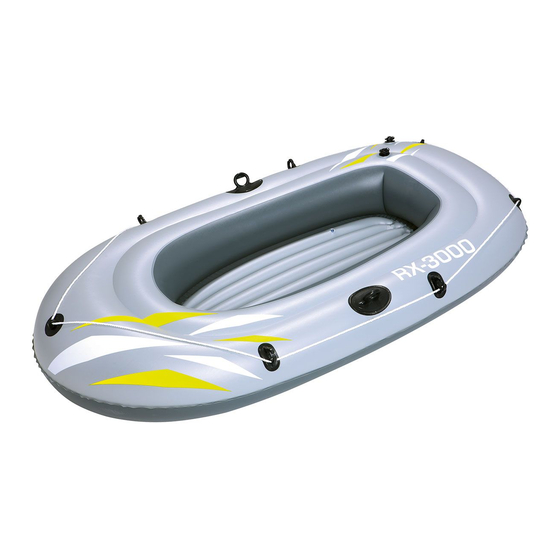

Bestway RX-3000 Handbuch

PLEASE CAREFULLY READ THIS MANUAL BEFORE USING YOUR INFLATABLE BOAT.
#61103; #61104; #61105; #61106
Screw Valve x 2
Boat
Components:
• Repair Patch
• Deflation Pipe
#61107
Boat
• Inflation Scale
Components:
• Repair Patch
• Deflation Pipe
Technical Specifications
Item 61106
1.55m x 93cm
Inflated Size
(61'' x 37'')
Maximum Weight 80 kg (178 lbs.)
Passenger Capacity 1 adult
0.03 bar
Inflation Pressure
(0.435 psi)
Construction of the boat
Grab Rope
Rope Grommet
Pressure-Scale
Tow grommet
NOTE: All drawings for illustration purpose only. May not reflect actual product. Not to scale.
EN ISO 6185 - 1 TYPE I
SHELTERED WATER
0.03 bar
= = 1
0.435 psi
+ = 80 kg (178 lbs.)
HOLDER OF CERTIFICATE:
BESTWAY INFLATABLES &
MATERIAL CORP.
NO.3065 CAOAN ROAD,
SHANGHAI, 201812, CHINA
TYPE OF MODEL NUMBER: 61106
MANUFACTURER:
COUNTRY OF ORIGIN: CHINA
S-S-005414/21x28.5cm(#61103/#61104/#61105/#61106/#61107) JS-YF-2016-B-11226-英
Safety rope
• Inflation Scale
Oar Hand Pump
Screw Valve x 2
Safety rope
61103 61104 / 61107
1.88m x 98cm 2.23m x 1.10m 2.50m x 1.18m
(74'' x 39'') (88'' x 43'') (98'' x 46'')
120 kg (264 lbs.) 190 kg (418 lbs.) 225 kg (495 lbs.)
1 adult +1 child 2 adults 2 adults +1 child
0.03 bar 0.03 bar
(0.435 psi) (0.435 psi) (0.435 psi)
Screw Valve
Printed scale
Oarlock
Inflatable Floor
EN ISO 6185 - 1 TYPE I
SHELTERED WATER
0.03 bar
= 0 = = 1
0.435 psi
+ = 120 kg (264 lbs.)
HOLDER OF CERTIFICATE:
BESTWAY INFLATABLES &
MATERIAL CORP.
NO.3065 CAOAN ROAD,
SHANGHAI, 201812, CHINA
TYPE OF MODEL NUMBER: 61103
MANUFACTURER:
COUNTRY OF ORIGIN: CHINA
EN ISO 6185 - 1 TYPE I
SHELTERED WATER
0.03 bar
=
0.435 psi
+
HOLDER OF CERTIFICATE:
BESTWAY INFLATABLES &
MATERIAL CORP.
NO.3065 CAOAN ROAD,
SHANGHAI, 201812, CHINA
TYPE OF MODEL NUMBER: 61104
COUNTRY OF ORIGIN: CHINA
EN ISO 6185 - 1 TYPE I
SHELTERED WATER
0.03 bar
=
0.435 psi
+
HOLDER OF CERTIFICATE:
BESTWAY INFLATABLES &
MATERIAL CORP.
NO.3065 CAOAN ROAD,
SHANGHAI, 201812, CHINA
TYPE OF MODEL NUMBER: 61107
COUNTRY OF ORIGIN: CHINA
Boat Design Category D: Designed for a wind force up to, and including 4 and significant
wave height up to, and including 0.3m, with occasional waves of 0.5m maximum height.
WARNING: To avoid damage to the boat and injury to passengers, please don't exceed the
data given on the builder's plate.
61105 Follow all the Safety and Operating Instructions. If you don't follow these instructions, it may cause
the boat to overturn or explode and result in drowning.
1. Do not exceed the maximum recommended number of persons. Regardless of the number of
persons on board, the total weight of persons and equipment must never exceed the maximum
recommended load. Always use the seats /seating spaces provided.
2. When loading the craft, never exceed the maximum recommended load: Always load the craft
0.03 bar
carefully and distribute loads appropriately to maintain design trim (approximately level). Avoid
placing heavy weights high up. NOTE: The maximum recommended load includes the weight of
all persons onboard, all provisions and personal effects, any equipment not included in the light
craft mass, cargo (if any) and all consumable liquids (water, fuel, etc.).
3. When using the boat, life saving devices such as life jackets and buoys should be pre-inspected
and used at all times.
4. Before every use, carefully inspect all boat components including air-chambers, grab ropes,
oars, and air valves, to ensure everything is in good condition and tightly secured. If you find any
damage, please stop to repair it.
5. Buckets, water scoops and air pumps should always be available in case of air leakage or if the
boat takes on water.
6. When the boat is in motion, all passengers must remain seated at all times to avoid falling
overboard. Keep the boat balanced. Uneven distribution of persons or load in the boat may the
boat to overturn and result in drowning.
7. Use the boat near the shore and beware of natural factors such as wind, tide waters and tidal
waves.
Oar Clasp
BE AWARE OF OFFSHORE WINDS AND CURRENTS.
8. If one chamber is punctured when the boat is in the water, it may be necessary to fully inflate the
other air chamber to prevent the boat from sinking.
9. Be careful when landing on the shore. Sharp and rough objects such as rocks, cement, shells,
glass, etc. may puncture the boat. To avoid damage, do not drag the boat on rough surfaces.
10. When choosing an outboard motor, refer to the technical specifications section of this manual
to determine acceptable horsepower ratings.
11. For electrical motors equipped with batteries, note that battery acid can be caustic, which can
cause damage to both skin and boat materials.
12. For motors which use fuels such as gas, oil or petrol, since fuel is a flammable substance, it
should be kept away from open flames. Further, clean the boat material immediately if fuel
spatters onto the boat surface. Be aware of the potential harmful effects of liquids such as
battery acid, oil or petrol. The liquids may damage your boat.
= 1
13. Inflate according to the numbered air chamber and rated pressure of the boat, or it will cause
over-inflation and boat explosion. Exceeding the data given on the capacity plate may cause
the craft to be damaged, overturn and lead to drowning.
14. If you use the tow rings to tow the boat, go slowly to avoid over-towing as damage may occur.
15. Know how to operate a boat. Check in your local area for information and/or training as
needed. Inform yourself about local regulations and dangers related to boating and/or other
water activities.
1
EN ISO 6185 - 1
CATEGPRY D
0.03 bar
= 2 = 0 =
0.435 psi
= 190 kg (418 lbs.)
+
HOLDER OF CERTIFICATE:
BESTWAY INFLATABLES &
MATERIAL CORP.
NO.3065 CAOAN ROAD,
SHANGHAI, 201812, CHINA
MANUFACTURER:
2013/53/EU
TYPE OF MODEL NUMBER: 61105
COUNTRY OF ORIGIN: CHINA
= 2 = 0
= 190 kg (418 lbs.)
MANUFACTURER:
Warning
IMPORTANT SAFETY INSTRUCTIONS
TYPE I
= 2 = 1
= 225 kg (495 lbs.)
MANUFACTURER:
S-S-005414
