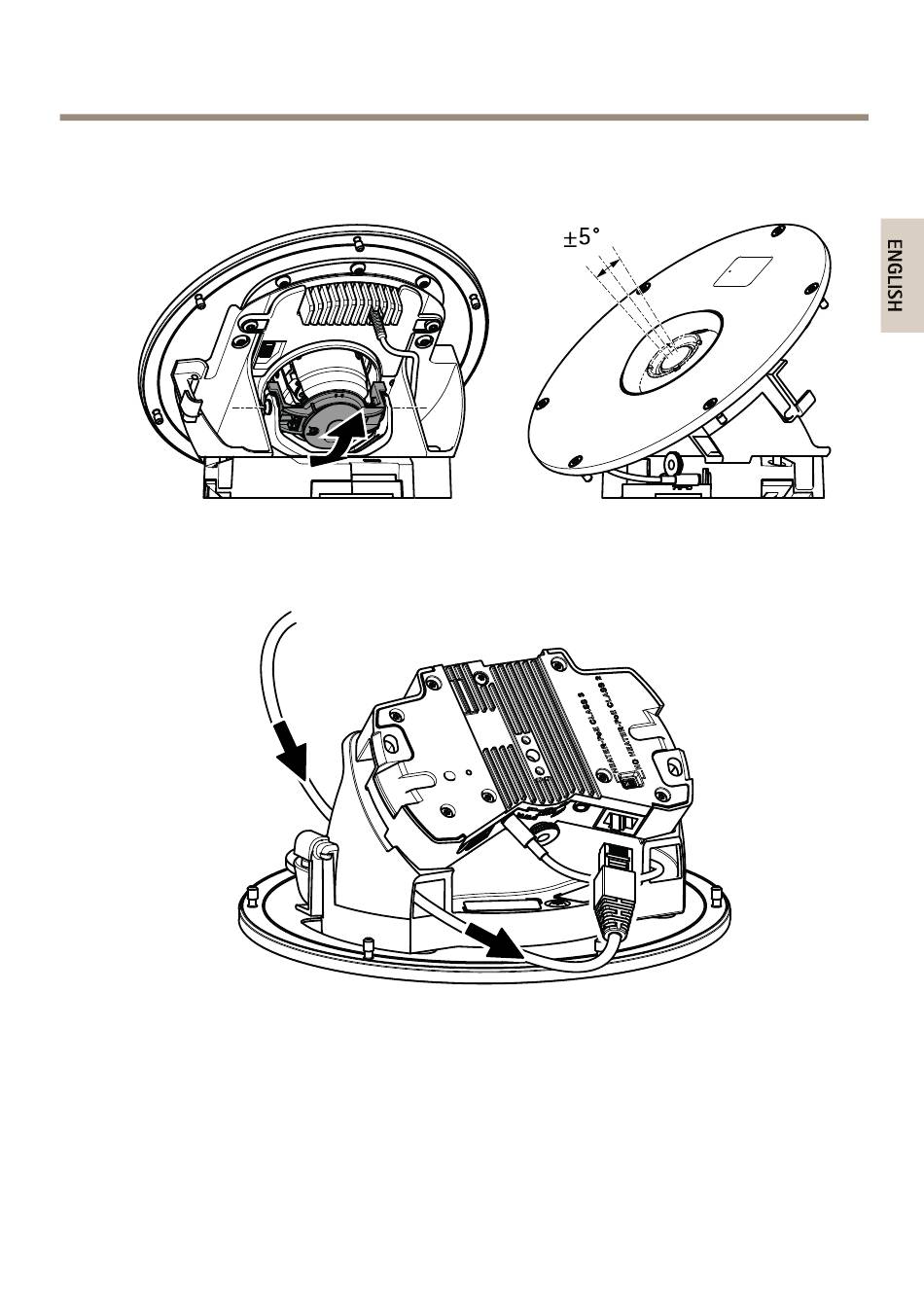

18. If necessary: Manually adjust the angle of the lens to adapt to the size and shape of the
monitored area. For tilt positions, see Set Up the Field of View on page 20
19. Guide the network cable through the cable tunnel to the back of the camera assembly
and plug the network cable into the network connector.
20. If applicable: Guide the I/O cable through the cable tunnel to the back of the camera
assembly and plug the I/O cable into the I/O connector.
21. Hold the camera assembly so that the IR window on the front is in a six o'clock position,
and place the bottom of the camera assembly against the bottom of the back chassis
opening.
