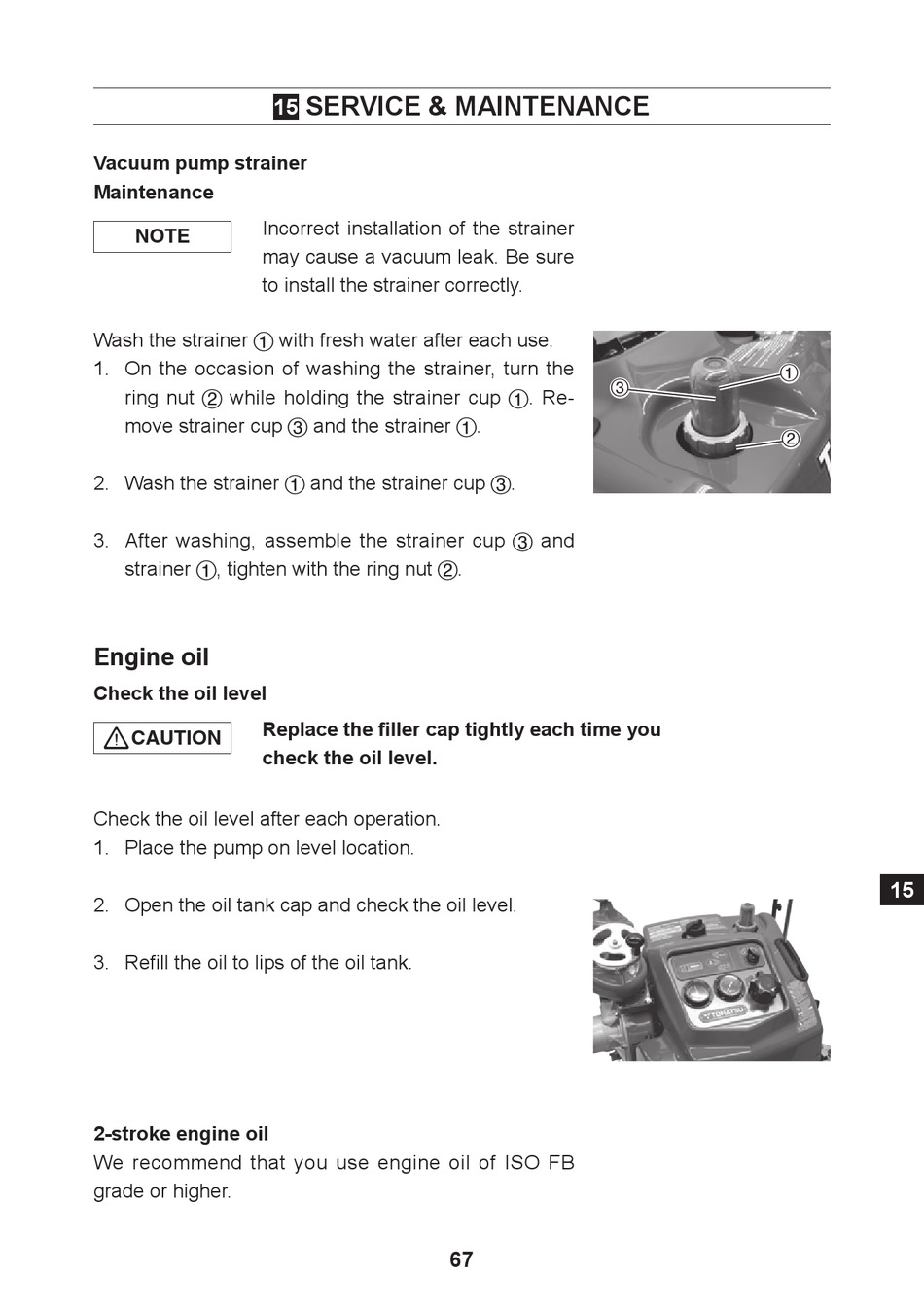

Vacuum pump strainer
Maintenance
Incorrect installation of the strainer
NOTE
may cause a vacuum lea . Be sure
to install the strainer correctly.
Wash the strainer 1 with fresh water after each use.
1. On the occasion of washing the strainer, turn the
ring nut 2 while holding the strainer cup 1 .
move strainer cup 3 and the strainer 1 .
2. Wash the strainer 1 and the strainer cup 3 .
3. After washing, assemble the strainer cup 3 and
strainer 1 , tighten with the ring nut 2 .

Engine oil

Chec the oil level
Replace the ller cap tightl each time ou
CAUTION
chec the oil level.
Chec the oil level after each operation.
1. lace the pump on level location.
2. Open the oil tan cap and chec the oil level.
3. e ll the oil to lips of the oil tan .
2-stro e engine oil
We recommend that you use engine oil of ISO
grade or higher.
SERVICE & MAINTENANCE
