Stereo/Mono Operation

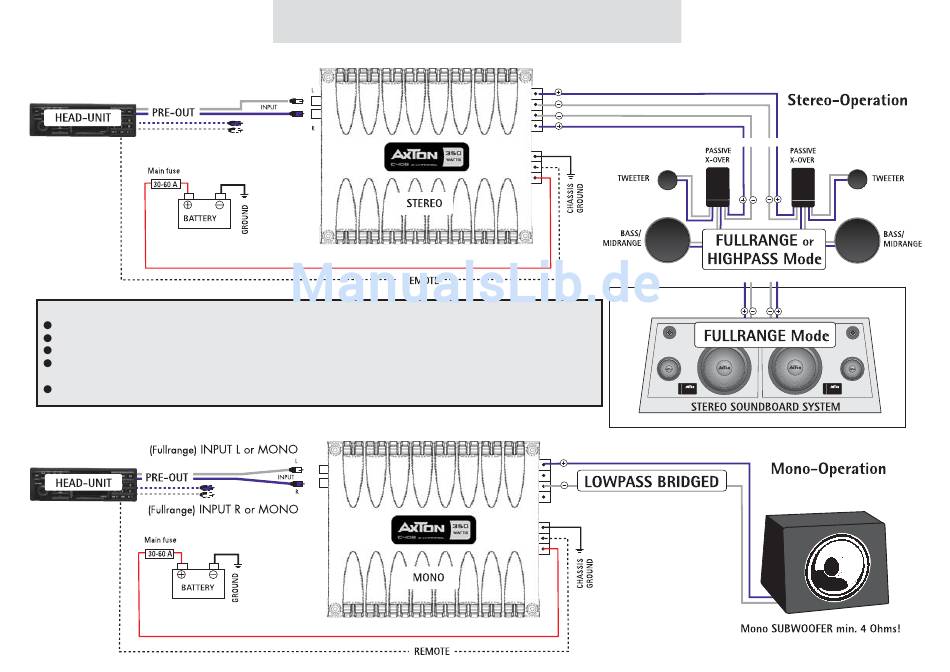

CONNECTING DIAGRAM 1+2 C208 / C408
Please note!
The AXTON C208 and C408 amplifier models may be used in FULLRANGE, HIGHPASS or LOWPASS mode.
In stereo operation speaker impedance may be 2-4 Ohms.
In bridged mono operation minimum speaker impedance is 4 Ohms.
For mono operation/bridged output both inputs (L&R) must still be used (if necessary use
Y-adaptors)!
A main fuse (not included) of appropriate amperage must be installed within 30 cm of the car battery!
