12 Instructions for normal
operation
12.1 Visualizing the state of the
pan & tilt

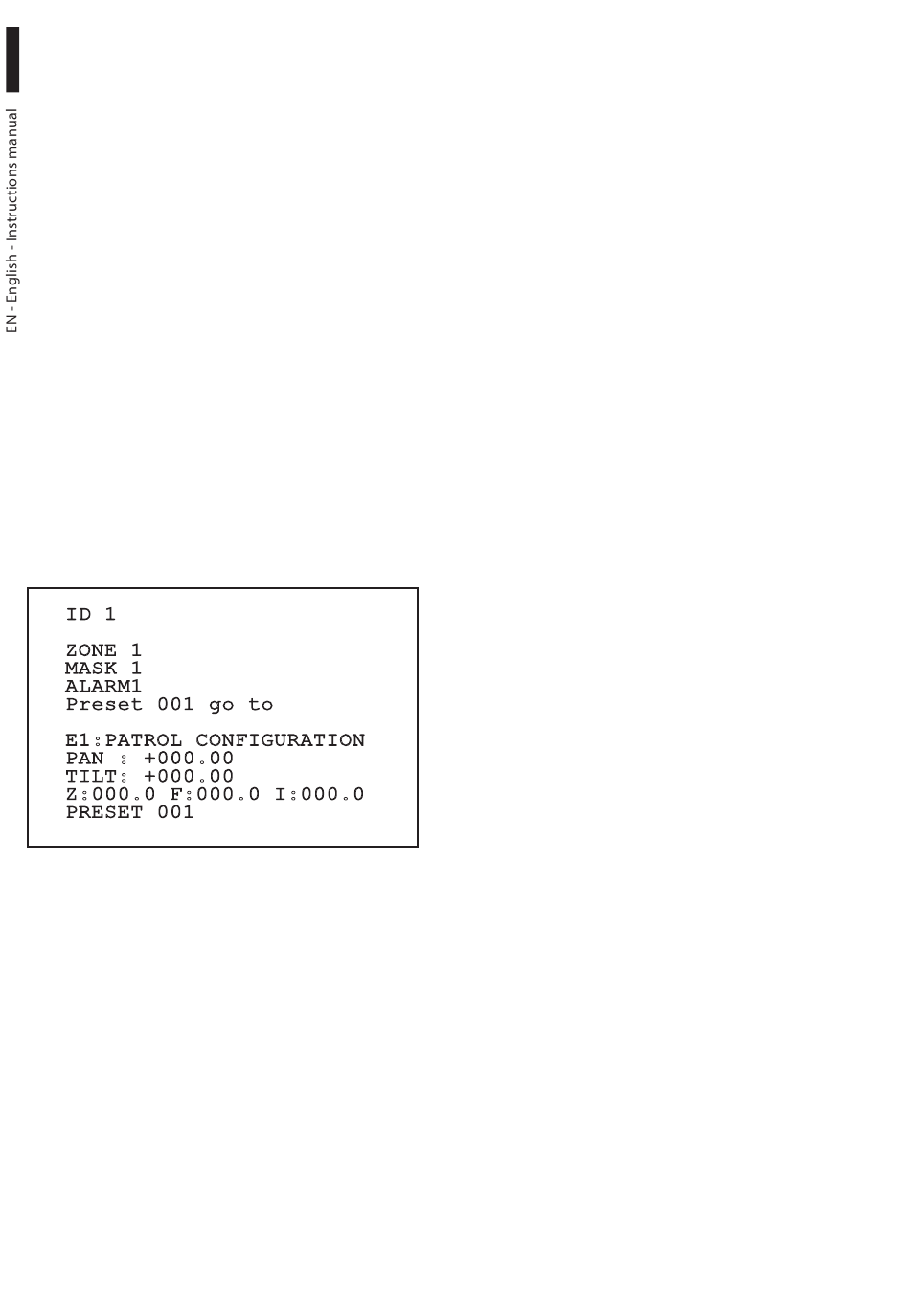

During normal operation the pan & tilt displays
on screen, at user's choice, the data organized as
illustrated. The visualization can be enabled or
disabled (10.1.9 Display Menu, page 49).
ID 1: Receiver's address;
ZONE 1: Name of the area where one is currently
located;
MASK 1: Name of the mask displayed;
ALARM 1: Text regarding the last active alarm;
Preset 001 go to: Commands received via serial;
E1:PATROL CONFIGURATION: Display of the errors
detected during system operation;
PAN/TILT/Z/F/I: Current position of PAN, TILT, ZOOM,
FOCUS and IRIS;
PRESET 001: Name of selected active preset.
ID 1
ZONE 1
MASK 1
ALARM1
Preset 001 go to
E1:PATROL CONFIGURATION
PAN : +000.00
TILT: +000.00
Z:000.0 F:000.0 I:000.0
PRESET 001
Fig. 124
54

12.2 Saving a Preset

The current position can be saved using the control
device being used (for additional information refer to
the manual of the device being used).
12.3 Restore a Preset position
(Scan)
Using the control device it is possible to recall a
previously saved Preset position (for additional
information refer to the manual of the device being
used).

12.4 Recalling the Home position

Using the control device it is possible to recall a
previously saved Home (Scan n.1) position (for further
information refer to the manual of the control device
in use).

12.5 Patrol enabling

The Patrol function loads the saved Presets in
sequence.
To activate/deactivate this function, refer to the
manual of the control device used or to the relative
chapter (12.11 Special controls, page 56).
To deactivate this function, move the joystick or
restore a different type of movement.
Refer to the relative chapter for the configuration of
this function (10.1.8.6 Patrol Menu, page 48).
