Operation

7.1 Control panel
The control elements are located on the top right side
of the device. The device is equipped with a configur-
able electronic control unit, consisting of a display and
six touchscreen keys.
The heating device also has an adjustable room ther-
mostat for controlling the room temperature. The ad-
justable minimum temperature is 7 ° C.
The maximum temperature is set to 26 ° C at the fac-
tory, but can be increased to a maximum of 32 ° C.
A temperature of 21 ° C corresponds to a normal room
temperature.

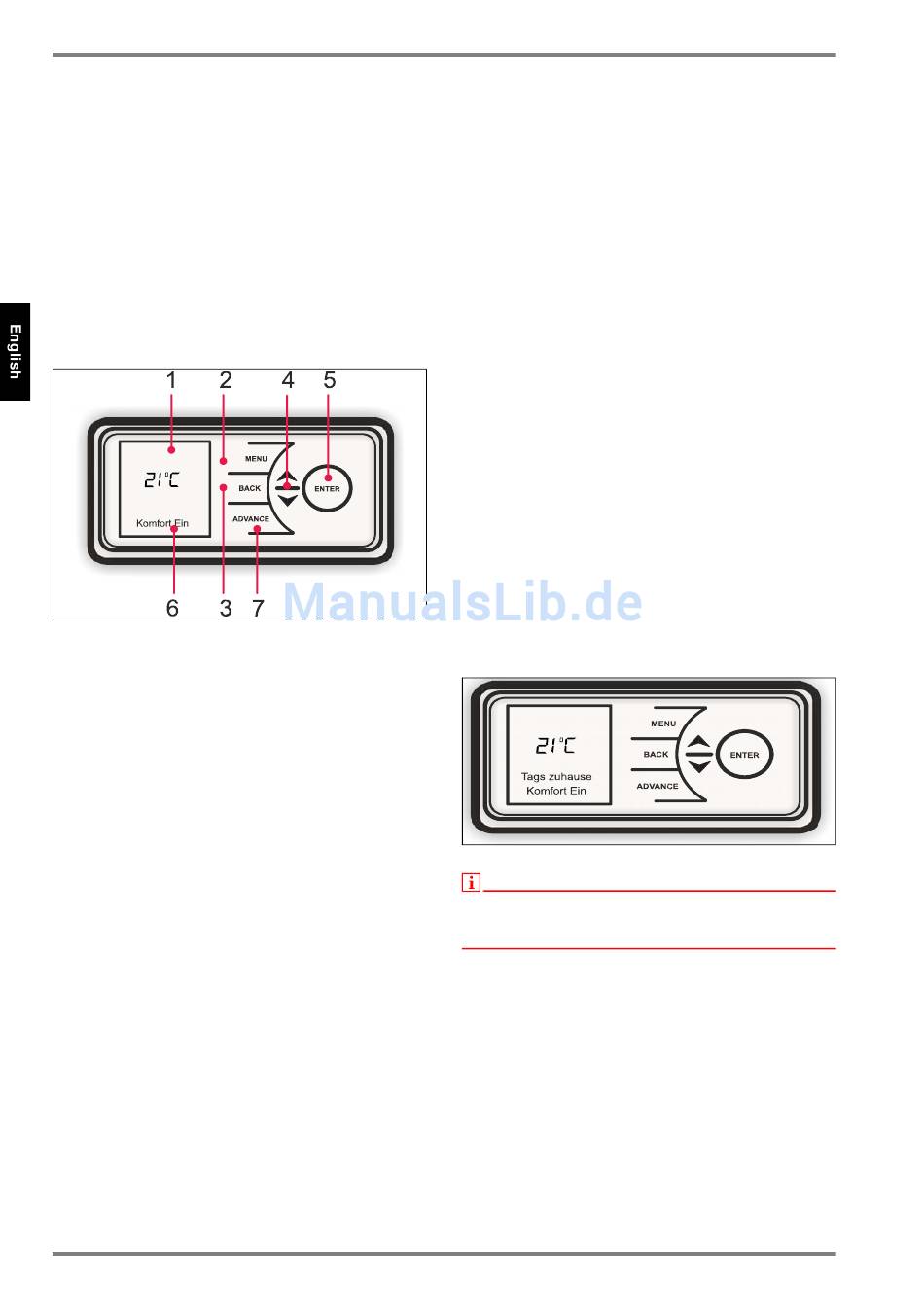

(1) Display
(2) Menu key
(3) Back key
(4) Up/down key
(5) Enter key
(6) Status display
(7) Advance key
7.2 Operating functions
The parameters of the device can be set easily using
the six keys on the display user interface.
The available settings are shown on the display.
1. Menu - Shows the most important functions:
Date / Time - Date and time setting.
Mode - Time Program, Manual Temperature Se-
lection, Setback, Frost Protect, Off.
Options - Summer Time, Auto Lock, Service Info,
Temp Units, Audio Feedback (keys)
2. Back key: Return to the previous program item
3. Up and down keys:
Used to navigate through the menu and to change
the setting values.
The up and down keys are also used for setting the
desired room temperature.
The display colour changes from blue to red based
on the selected temperature.
EN-16
4. ENTER key: Used to confirm the settings. Press-
ing the ENTER key shows the current activated
function.
5. Comfort On: The times during which the heating
device heats up to the set comfort temperature.
This is shown in the bottom area of the display.
6. Comfort Off: The times during which the heating
device is not switched on. The set mode is shown
in the bottom area of the display.
7. ADVANCE key: Overwrites the heating settings
and changes the operating status of the heating
device.
If a Timer Mode is activated, pressing the ADVANCE
key changes the mode.
It can switch between "Comfort Off" and "Comfort On",
for example.
The ADVANCE key is also used to activate the Boost
Mode. The Boost Mode delivers heat for between one
and four hours.
7.3 Main screen
If no input is made for 30 seconds, the display returns
to the main screen. The selected temperature is shown
here, along with the mode. The use of the Advance
function is also shown.
The activated functions are shown by pressing the
ENTER key.
If no change is made for a prolonged period, the screen
switches to "Sleep Mode" and the display is turned off.
Press any key to activate the display.
.
NOTE NOTE
If no key is pressed, the display returns to the Main
Menu after 30 seconds. The activated functions are
shown by pressing the ENTER key.
7.4 Initial start-up
When commissioning the heater in the display the start
screen is displayed. Here you can set the language,
date, time, time zone, key lock, key sounds and tempe-
rature unit. These values can be changed later again.
See the corresponding chapter in the manual.
