SilverStone PRECISION PS04B Bedienungsanleitung

P

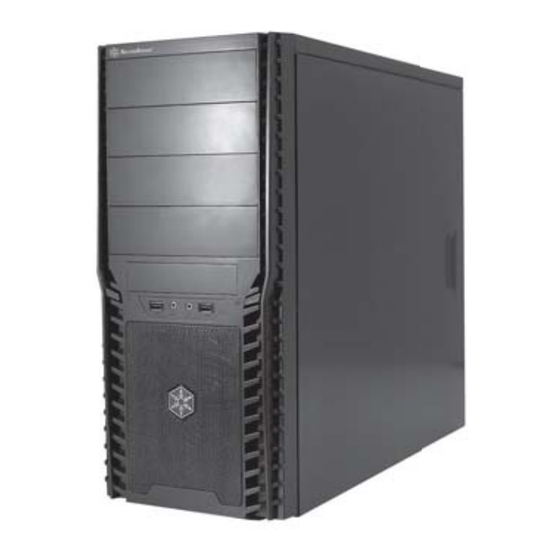

roduct Overview
b
4
Specification:
Material : High-strength plastic and meshed front panel
Motherboard : ATX, Micro ATX
Driver Bay : External 5.25" x 4, 3.5" x 1
Internal 3.5" x 5
Cooling System : Front 1 x 120mm fan slot
Rear 1 x 120mm exhaust fan
Expansion Slot : 7
Front I/O Port : USB2.0 x 2, Audio x 1, MIC x 1
Power Supply : 1 x Optional standard PS2 (ATX)
Dimension : 183.4mm (W) x 412.5 mm (H) x 487.8 mm (D)
Disassemble Chart
LEFT PANEL
12025 FAN
EXPANSION SLOTS x 7
PS2 PSU (OPTION)
3.5" DRIVE BAY (HIDDEN) x 5
5.25" DEVICE LOCKING CLIP x 4
3.5" DEVICE LOCKING CLIP x 5
USB2.0 CONNECTOR PARTS PACKAGE
USB+5V USB+5V
PHOTO PART NAME
LP- LP-
LP+ LP+
GND
GND
NC METAL STANDOFF
Pin
Pin
SCW-PW-M3*6
HD AUDIO CONNECTOR
AUD GND PORT1L
SCW-HW- #6-32*6
PRESENCE# PORT1R
SENSE1_RETURN PORT2R
NO PIN SENSE_SEND
MANUAL
SENSE2_RETURN PORT2L
Pin
RIGHT PANEL
5.25" DRIVE BAY x 4
RESET BUTTON
3.5" DRIVE BAY
FRONT I/O USB2.0 x 2 + SPK + MIC
POWER BUTTON
PURPOSE
FOR SECURE
MOTHERBOARD
FOR SECURE
MOTHERBOARD
FOR SECURE PSU
-
January, 2010
NO:G11211380
