- Seite 2 Adobe Systems Incorporated. DLP® , DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments. InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries.
-
Seite 3: Important Safety Information
Important Safety Information Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. Symbols Used Warning symbols are used on the unit and in this manual to alert you of hazardous situations. - Seite 4 Projector Installation Notice Place the projector in a horizontal position The tilt angle of the projector should not exceed 15 degrees. In addition, the projector should not be installed in any other way except desktop and ceiling mount positions. Otherwise lamp life could decrease dramatically, and may lead to other unpredictable damage.
- Seite 5 Power Safety Only use the supplied power cord. Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic. Remove the batteries from the remote control when storing or not in use for a prolonged period. Replacing the Lamp Replacing the lamp can be hazardous if done incorrectly.
-
Seite 6: Inhaltsverzeichnis
Table of Contents GETTING STARTED .............................. 1 ............................. 1 ACKING HECKLIST ..........................2 IEWS OF ROJECTOR ARTS Front-right View ............................... 2 Top view—On-screen Display (OSD) buttons and LEDs ................3 Rear view ................................. 4 Bottom view ..............................6 ............................. 7 EMOTE ONTROL ARTS... - Seite 7 SPECIFICATIONS ..............................53 ..............................53 PECIFICATIONS (XGA) ................... 54 ROJECTION ISTANCE VS ROJECTION Projection Distance and Size Table ......................54 ( WXGA) ..................55 ROJECTION ISTANCE VS ROJECTION Projection Distance and Size Table ......................55 (1080 ) ..................56 ROJECTION ISTANCE VS ROJECTION Projection Distance and Size Table ......................
-
Seite 8: Getting Started
ETTING TARTED Packing Checklist Carefully unpack the projector and check that the following items are included: DLP P ROJECTOR WITH EMOTE CONTROL CABLE OWER CORD ATTERIES NOT INCLUDED CD-ROM & UICK TART UIDE AFETY WARRANTY BOOKLET ’ S MANUAL Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommended that you keep the original packing material in case you ever need to return the equipment for warranty service. -

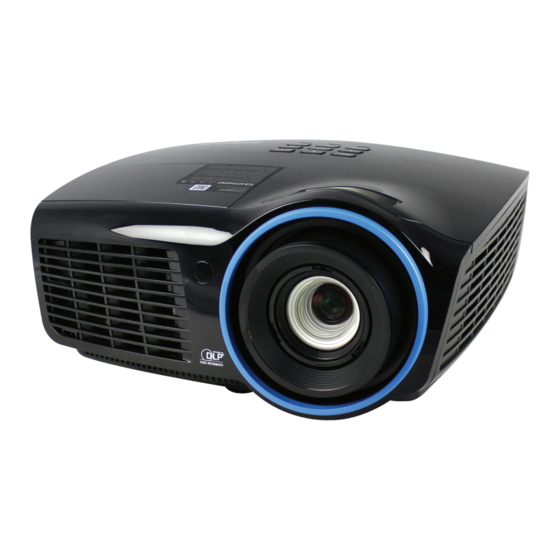

Seite 9: Views Of Projector Parts
Views of Projector Parts Front-right View ABEL ESCRIPTION EE PAGE Receive IR signal from remote control. IR receiver Lens Projection Lens. Focus ring Focuses the projected image. Zoom ring Enlarges the projected image. See Top view—On-screen Display (OSD) buttons Function keys and LEDs. -
Seite 10: Top View-On-Screen Display (Osd) Buttons And Leds
Top view—On-screen Display (OSD) buttons and LEDs 12 11 ABEL ESCRIPTION EE PAGE Menu Open and exit OSD menus. Navigate and change settings in the OSD. ◄ / VOL- Quick Menu – For Volume Navigates the OSD. Quick Menu – For Keystone Enter or confirm highlighted OSD menu item. -
Seite 11: Rear View
Rear view 3 4 5 6 7 8 ABEL ESCRIPTION EE PAGE AC IN Connect a POWER cable. VGA IN Connect a RGB cable from a computer. VGA IN Connect a RGB cable from a computer. Service use only. (USB) VGA OUT Connect a RGB cable to an external monitor/display. - Seite 12 When connected to the screen through a commercially available cable, DC 12V TRIGGER the screen deploys automatically on start up of the projector. The screen retracts when the projector is powered off (see notes below). DC12V Trigger Note: To use this feature, you must plug in the connector before turning on/off the projector. ...
-
Seite 13: Bottom View
Refer to the installation guide that comes with the InFocus Ceiling Mount kit for more information. The warranty does not cover any damage caused by use of non-approved ceiling mount kits or by installing in an improper location. -
Seite 14: Remote Control Parts
Remote Control Parts Important: 1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation. 2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens. -
Seite 15: Remote Control Operating Range
ABEL ESCRIPTION EE PAGE Navigates up and changes settings in the OSD. Enter Changes settings in the OSD. Power Turns the projector on or off. Right Navigates to the right and changes settings in the OSD. Volume + Increases volume. Volume - Decreases volume. -
Seite 16: Setup And Operation
1. Only use a 3V lithium battery (CR2025). 2. Dispose of used batteries according to local ordinance regulations. 3. Remove the battery when not using the projector for prolonged periods. Note: Batteries are not normally included with InFocus projectors. — 9 —... -
Seite 17: Turning The Projector On And Off
Turning the projector on and off Connect the power cord to the projector. Connect the other end to a wall outlet. POWER LED on the projector light. Turn on the connected devices. Ensure the POWER LED is not flashing. Then press the POWER button to turn on the projector. - Seite 18 To turn the projector off, press the POWER button. When the “Power Off? Press Power again” message appears, press the POWER button. The projector turns off. Caution: 1. Be sure to remove the lens cap before starting projector. 2. Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has cooled down.
-
Seite 19: Setting An Access Password (Security Lock)
Keep the password in a safe place. Without the password, you will not be able to use the projector. If you lose the password, contact InFocus Support for information on clearing the password. Press the MENU button to open the OSD menu. - Seite 20 Enter the password in the order you set it on step 5. If you forget the password, please contact InFocus. Visit our website at www.infocus.com/support or call us. — 13 —...
-
Seite 21: Adjusting The Projector Level
Adjusting the Projector Level Take note of the following when setting up the projector: The projector table or stand should be level and sturdy. Position the projector so that it is perpendicular to the screen. Ensure the cables are in a safe location. You could trip over them. To adjust the angle of the picture, turn the tilt-adjuster right or left until the desired angle has been achieved. -
Seite 22: Adjusting The Zoom, Focus And Keystone
Adjusting the Zoom, Focus and Keystone Use the Image-zoom control (on the projector only) to resize the projected image and screen size Use the Image-focus control (on the projector only) to sharpen the projected image Use the KEYSTONE buttons on the remote control to correct trapezoid image issues (wider top or bottom). -
Seite 23: On-Screen Display (Osd) Menu Settings
(OSD) M CREEN ISPLAY ETTINGS OSD Menu Controls The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control arrow buttons to navigate and make changes to the OSD. 1. -
Seite 24: Setting The Osd Language
Setting the OSD Language Set the OSD language to your preference before continuing. 1. Press the MENU button. Press the ◄► buttons to navigate to Settings 1. Press the ▲▼ buttons to move to the Advanced 1 menu. (Enter) or ► to enter the Advanced 1 sub menu. Press the ▲▼ buttons until 2. -
Seite 25: Osd Menu Overview
OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. ETTINGS Image Display Mode Presentation, Bright, Game, Movie, TV, sRGB, Blackboard, User Brightness 0~100 Contrast 0~100 Computer Horizontal Position -5~5 (depend on Autolock) Vertical Position -5~5 (depend on Autolock) Frequency... - Seite 26 ETTINGS Settings 1 Source Source reference Input Source Select (IR/Keypad) Projection Normal, Real, Ceiling, Real+Ceiling Aspect Ratio Fill, 4:3, 16:9, Letter Box, Native, 2.35:1 Keystone -40~40 Digital Zoom -10~10 Audio Volume 0~10 Mute Off, On English, Français, Deutsch, Español, Advanced 1 Language Português, 簡体中文, 繁體中文, Italiano, Norsk, Svenska, Nederlands, Русский,...
- Seite 27 ETTINGS Settings 2 Auto Source Off, On No Signal 0~180 Power Off Auto Power Off, On Lamp Mode ECO , Normal, Dynamic ECO Reset All Status Active Source Video Information Lamp Hours(ECO, Normal, Dynamic ECO) Serial Number Software Version Advanced 1 Menu Position Center, Down, Up, Left, Right Translucent Menu...
-
Seite 28: Image Menu
Image Menu Attention ! When image options are changed, the Display Mode changes to User. Press the MENU button to open the OSD menu. Press the ◄► buttons to move to the Image Menu. Press the ▲▼ buttons to move up and down in the Image menu. Press the ◄► buttons to enter and change setting values. -
Seite 29: Computer Menu
Computer Menu Press the MENU button to open the OSD menu. Press the ◄► buttons to move to the Image menu. Press the ▲▼ buttons to move to the Computer menu and then press (Enter) or ►. Press the ▲▼ buttons to move up and down in the Computer menu. ESCRIPTION Press the ◄►... -
Seite 30: Advanced Features
Advanced Features Press the Menu button to open the OSD menu. Press the ◄► buttons to move to the Image menu. Press the ▼▲ buttons to move to the Advanced menu and then press (Enter) or ►. Press the ▼▲ buttons to move up and down in the Advanced menu. ESCRIPTION Press the ◄►... -
Seite 31: Color Manager
Color Manager Press the Menu button to open the OSD menu. Press the ◄► buttons to move to the Image menu. Press the ▼▲ buttons to move to the Color Manager menu and then press (Enter) or ►. Press the ▼▲ buttons to move up and down in the Color Manager menu. ESCRIPTION Select to enter the Red Color Manager. -
Seite 32: Settings 1 Menu
Settings 1 Menu Press the MENU button to open the OSD menu. Press the ◄► buttons to move to the Settings 1 menu. Press the ▲▼ buttons to move up and down in the Settings 1 menu. Press the ◄► buttons to enter and change setting values. -
Seite 33: Audio
Audio Press the Menu button to open the OSD menu. Press the ◄► buttons to move to the Settings 1 menu. Press the ▼▲ buttons to move to the Audio menu and then press (Enter) or ►. Press the ▼▲ buttons to move up and down in the Audio menu. ESCRIPTION Press the ◄►... -
Seite 34: Advanced 1 Features
Advanced 1 Features Press the Menu button to open the OSD menu. Press the ◄► buttons to move to the Settings 1 menu. Press the ▲▼ buttons to move to the Advanced 1 menu and then press (Enter) or ►. Press the ▲▼... - Seite 35 3D Setting ESCRIPTION Press the ◄► buttons to enter and select different 3D modes. Press the ◄► buttons to enter and enable or disable 3D Sync Invert. 3D Sync Invert Press the ◄► buttons to enter and enable or disable different 3D formats. 3D Format Note: 1.
-
Seite 36: Advanced 2 Features
Advanced 2 Features Press the Menu button to open the OSD menu. Press the ◄► buttons to move to the Settings 1 menu. Press the ▲▼ buttons to move to the Advanced 2 menu and then press (Enter) or ►. Press the ▲▼... -
Seite 37: Settings 2 Menu
Settings 2 Menu Press the MENU button to open the OSD menu. Press the ◄► buttons to move to the Settings 2 menu. Press the ▲▼ buttons to move up and down in the Settings 2 menu. ESCRIPTION Press the ◄► buttons to enter and enable or disable automatic source detection. Auto Source Press the ◄►... -
Seite 38: Status
Status Press the ▲▼ buttons to move up and down in the Settings 2 menu. Select the Status menu and (Enter) or ► to enter. press ESCRIPTION Active Source Displays the current active source type. Displays resolution/video information for RGB sources and color standard for Video Video Information sources. -
Seite 39: Advanced 1 Features
Advanced 1 Features Press the Menu button to open the OSD menu. Press the ◄► buttons to move to the Settings 2 menu. Press the ▲▼ buttons to move to the Advanced 1 menu and then press (Enter) or ►. Press the ▲▼... - Seite 40 Lamp Hour Reset Please refer to Resetting the Lamp Timer on page to reset the lamp hour counter. Network ESCRIPTION Network State Displays the network connection status. Press ◄► to turn DHCP On or Off. DHCP Note: If DHCP is turned Off, complete the IP Address, Subnet Mask, Gateway, and DNS fields.
- Seite 41 This projector supports all commands of PJLink Class1 (Version 1.00). http://pjlink.jbmia.or.jp/english/ For detailed information about the diverse types of external devices which can be connected to the LAN/RJ45 port to control the projector, as well as related control commands, go to www.infocus.com/support — 34 —...
- Seite 42 LAN_RJ45 1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop). 2. On the PC (laptop), select Start → Control Panel →Network and Internet. — 35 —...
- Seite 43 3. Right-click on Local Area Connection, and select Properties. 4. In the Properties window, select the Networking tab, and select Internet Protocol (TCP/IP). 5. Click Properties. 6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK. —...
- Seite 44 7. Press the Menu button on the projector. 8. Select Settings2→ Advanced1 → Network 9. After getting into Network, input the following: DHCP: Off IP Address: 10.10.10.10 Subnet Mask: 255.255.255.0 Gateway: 0.0.0.0 DNS Server: 0.0.0.0 (Enter) / ►...
- Seite 45 RS232 by Telnet Function Besides using Hyper-Terminal for projector control, you can also use RS232 by Telnet with the LAN/RJ45 interface. Quick Start-Guide for “RS232 by TELNET” 1. Locate the IP address from the projector's OSD. 2. Make sure that the laptop/PC can access the projector's web page. 3.
- Seite 46 5. Type the Telnet command in the following format: telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed) (ttt.xxx.yyy.zzz: IP-Address of the projector) 6. When the Telnet connection is ready and you have input an RS232 command, press Enter. Enabling Telnet in Windows Vista/7/8 1.
- Seite 47 4. Select Turn Windows features on or off. 5. Select Telnet Client, and click OK. Telnet specifications Telnet: TCP Telnet port: 23 Telnet utility: Windows Telnet.exe (console mode) Disconnecting Telnet when Telnet is active: Close Windows Telnet utility. Telnet Limitations: 1.
-
Seite 48: Advanced 2 Features
Advanced 2 Features Press the Menu button to open the OSD menu. Press the ◄► buttons to move to the Settings 2 menu. Press the ▲▼ buttons to move to the Advanced 2 menu and then press (Enter) or ►. Press the ▲▼... - Seite 49 Source Filter Press the ENTER button to enter the Source Filter sub menu. This sub menu allows you to enable and disable source inputs. ESCRIPTION Press the ◄► buttons to enter and enable or disable the HDMI1 / MHL-compatible HDMI 1 / MHL source.
-
Seite 50: Maintenance And Security
AINTENANCE AND ECURITY Replacing the Projection Lamp The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer. Important: a. The projection lamp used in this product contains a small amount of mercury. b. - Seite 51 Remove the lamp compartment cover. Remove the three screws from the lamp module. Lift the module handle up. Pull firmly on the module handle to remove the lamp module. Reverse steps 1 to 5 to install the new lamp module. While installing, align the lamp module with the connector and ensure it is...
-
Seite 52: Resetting The Lamp Timer
Resetting the Lamp Timer After replacing the lamp, you should reset the lamp hour timer to zero. Refer to the following: Press the MENU button to open the OSD menu. Press the ◄► buttons to move to the Settings 2 menu. Press the ▼ button to move down to Advanced 1 and press enter. -
Seite 53: Cleaning The Projector
Cleaning the Projector Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so could result in a severe burn. 2. -
Seite 54: Using The Cable Lock System And Security Bar
Note: A Cable Lock System can be purchased from InFocus or your dealer. Refer to the information that comes with the lock for instructions on how to use it. The security lock slot corresponds to Kensington’s MicroSaver Security System. If you have any questions or concerns, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. -
Seite 55: Troubleshooting
ROUBLESHOOTING Common problems and solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. After spending time troubleshooting, the problem can often be traced to something as simple as a loose connection. -
Seite 56: Led Error Messages
In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting the projector. If the Power or Lamp LEDs are still blinking or any other situation that isn't listed in the chart above , please contact InFocus Support. — 49 —... -
Seite 57: Image Problems
Image Problems Problem: No image appears on the screen 1. Verify the settings on your notebook or desktop PC. 2. Turn off all the equipment and power everything up again. The projector should be turned on last. Problem: The image is blurred 1. -
Seite 58: Remote Control Problems
3. Have the projector serviced. Having the Projector Serviced If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton and contact InFocus Support at www.infocus.com/support or call us. — 51 —... -
Seite 59: Hdmi Q & A
HDMI Q & A Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI cable? Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High- Speed cables. ˙Standard (or “category 1”) HDMI cables have been tested to perform at speeds of 75Mhz or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal. -
Seite 60: Specifications
USB (Type mini B) - service only LAN Control (Creston/AMX/TelNet/Extron) 3D Sync USB Type A (5volt, 1.5amp power only) Security Kensington lock / Security Bar Note: InFocus reserves the right to alter product offerings and specifications at any time without notice. — 53 —... -
Seite 61: Projection Distance Vs. Projection Size (Xga)
Projection Distance vs. Projection Size (XGA) Projection Distance and Size Table IN3134a ROJECTION ROJECTION MAGE IAGONAL MAGE IDTH MAGE EIGHT ISTANCE ISTANCE FFSET INCH INCH INCH INCH INCH INCH 1,524 1,219.2 48.0 914.4 36.0 2,231.1 87.8 3,352.8 132.0 128.0 1,778 1,422.4... -
Seite 62: Projection Distance Vs. Projection Size ( Wxga)
Projection Distance vs. Projection Size ( WXGA) Projection Distance and Size Table IN3136a ROJECTION ROJECTION MAGE IAGONAL MAGE IDTH MAGE EIGHT ISTANCE ISTANCE FFSET INCH INCH INCH INCH INCH INCH 1524 1292.3 50.9 807.7 31.8 1886.8 82.6 2843.2 111.9 92.9 1778 1507.7 59.4... -
Seite 63: Projection Distance Vs. Projection Size (1080P)
Projection Distance vs. Projection Size (1080p) Projection Distance and Size Table IN3138HDa ROJECTION ROJECTION MAGE IAGONAL MAGE IDTH MAGE EIGHT ISTANCE ISTANCE FFSET INCH INCH INCH INCH INCH INCH 1524 1328.3 52.3 747.2 29.4 1846.3 72.7 2776.1 109.3 112.1 1778 1549.7 61.0 871.7... -
Seite 64: Timing Mode Table
Timing Mode Table HDMI OMPOSITE IGNAL ESOLUTION OMPONENT ( KH VIDEO NALOG IGITAL ○ － － － － NTSC 15.734 ○ － － － － PAL/SECAM 15.625 ○ ○ － － 720 x 400 31.5 70.1 ○ ○ － － 720 x 400 37.9 85.04... - Seite 65 HDMI OMPOSITE IGNAL ESOLUTION OMPONENT ( KH VIDEO NALOG IGITAL ○ ○ － － 1440 x 900 70.6 ○ ○ － － 1600 x1200 ○ ○ － － 1680 x 1050 64.7 59.9 ○ ○ － － 1680 x 1050 65.3 ○...
-
Seite 66: Projector Dimensions
Projector Dimensions 285.1mm [11.22"] — 59 —... -
Seite 67: Regulatory Compliance
EGULATORY OMPLIANCE FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. -
Seite 68: Appendix I
PPENDIX Serial Communication The following table describes the serial communication configuration that should be used when interfacing to CLI via the serial port. Windows HyperTerminal or ProComm are two tools that can be used to send CLI commands across the serial port. Setting Value Bits per second... - Seite 69 Function Command Min Max Default Step Parameter Video S-Video only = Color saturation Valid only when Display Mode = User Color Space 0:Auto (None) 1:RGB 2:YUV Valid only when Display Mode = User Source Color Temp 0:Warm Specific 1:Normal 2:Cold Valid only when Display Contrast Mode = User...
- Seite 70 Function Command Min Max Default Step Parameter 0=ECO Lamp Low Power 1=Normal 2=Dynamic Eco 0:English 1:French 2:German 3:Spanish 4:Portuguese 5:Simplified Chinese 6:Traditional Chinese 7:Italian 8:Norwegian 9:Swedish 10:Dutch 11:Russian 12:Polish Language 13:Finnish 14:Greek 15:Korean 16:Hungarian 17:Czech 18:Arabic 19:Turkish 20:Vietnamese 21:Japanese 22:Thai 23: Farsi(Persian) 24:Hebrew 25:Indonesia...
- Seite 71 Function Command Min Max Default Step Parameter Displays the numbers of hours that the projector Projector High Power 9999 has run in High Power Hours (Normal) mode over its life (including all lamps). Display Projector Info 116V Projector Info menu menu Displays the numbers of hours that the projector...
