Features of transmitter

GB

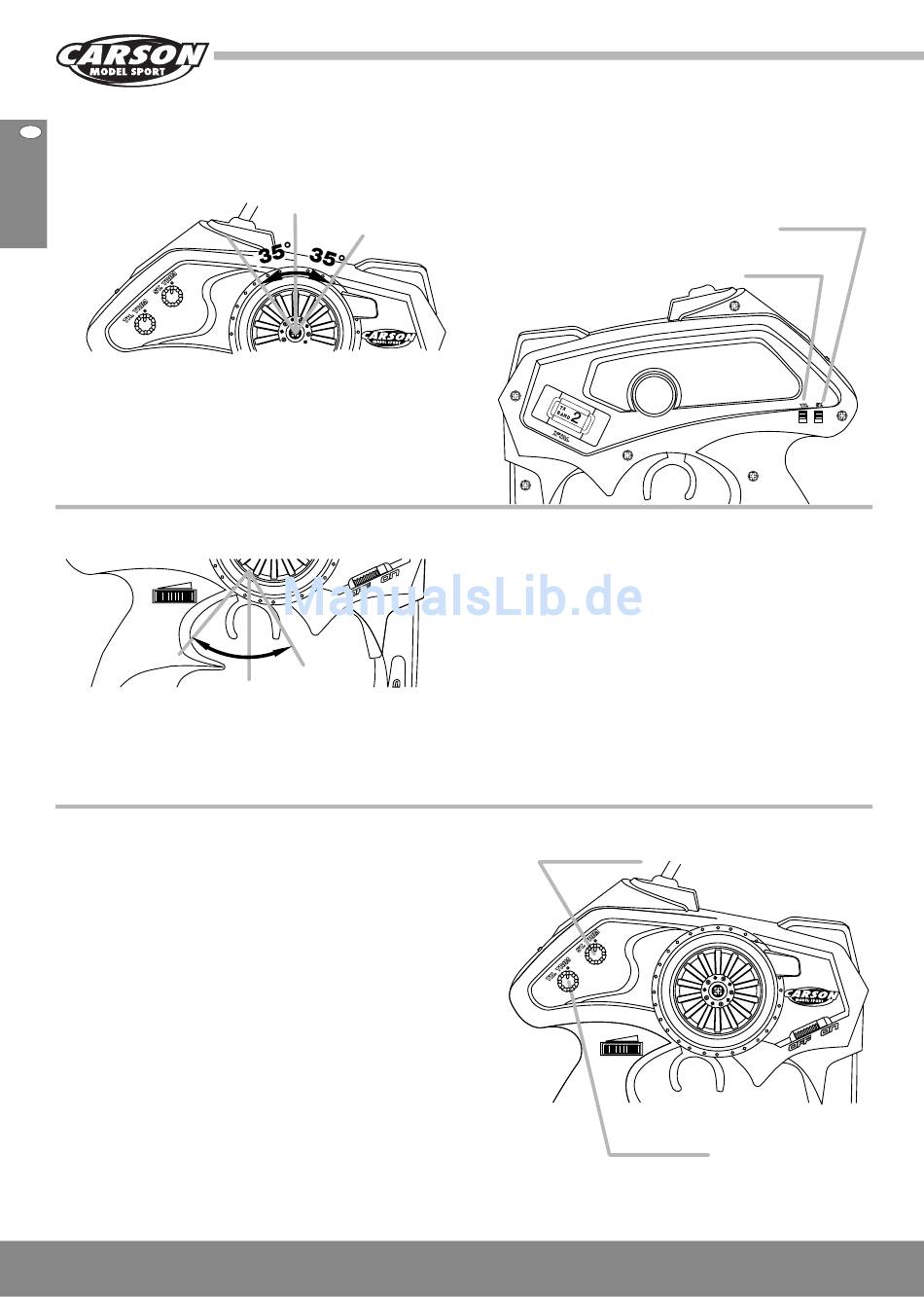

Steering Wheel

Das Lenkrad kann um 35° nach links oder rechts
gedreht werden.

Throttle Trigger

forward
Pull the throttle trigger for running forward and push it for bra-
king and running backwards.
Steering Trim (ST.TRIM)
The steering trim (ST. TRIM) allows the vehicle to drive straight
ahead when the steering wheel is not turned.
To install the steering servo:
1. Set the steering angle control to maximum. Then insert the
servo into the model so that the control mechanism operates
on maximum.
2. If the geometric conditions do not permit a complete turn of
the steering, readjust the steering angle slightly. This may
also be useful for routes with only large curve radii.
Throttle Trim (TH. TRIM)
The throttle trim (TH. TRIM) regulates the neutral position of the
throttle operation with a released throttle trigger, idle running
with a combustion engine, engine "off" with an electric engine.
8 CARSON Automatic RTR: Nitrobone 50 010 3021 Stormracer 50 010 3022
backward

Servo Reverse

40
FM
These Reverse Switches allow the rotation of the servo(s) to be
reversed. The servo(s) rotate(s) clockwise at NOR position and
rotate(s) counterclockwise at REV position.
Steering Trim
Channel 1
Throttle Trim
Channel 2
Drehrichtungs-Umkehr
für Lenkservo Kanal 1
Steering Reverse
Channel 1
