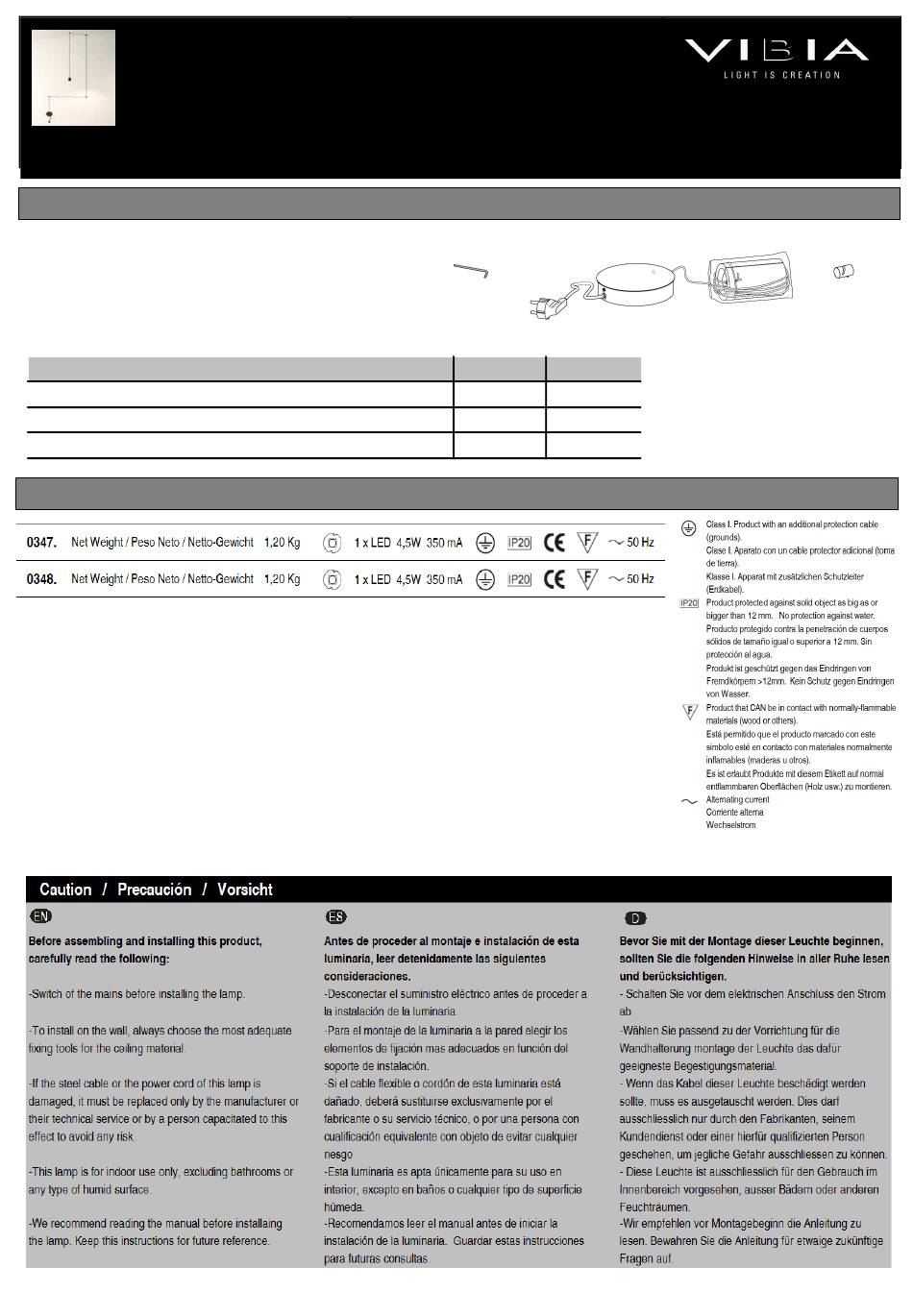

ASSEMBLY INSTRUCTIONS
SUPPLIED MATERIAL
1
Allen key / Llave a llen / In busschlüssel
2
Lamp structure / Estructura luminaria / Leuchte n-Struktur
3
Cable holde rs / Sujet acables / Kabelha l t er
TECHNICAL SPECIFICATIONS
Wireflow
Design by Arik Levy
INSTRUCCIONES DE MONTAJE
MATERIAL SUMINISTRADO
1.
0347
2
1
4
ESPECIFICACIONES TÉCNICAS
MONTAGEANLEITUNG
GELIEFERTES MATERIAL
2.
0348
2
1
4
TECHNISCHE DATEN
3.
Werbung
Verwandte Anleitungen für VIBIA Wireflow 0347
Inhaltszusammenfassung für VIBIA Wireflow 0347
- Seite 1 Wireflow Design by Arik Levy ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG SUPPLIED MATERIAL MATERIAL SUMINISTRADO GELIEFERTES MATERIAL 0347 0348 Allen key / Llave a llen / In busschlüssel Lamp structure / Estructura luminaria / Leuchte n-Struktur Cable holde rs / Sujet acables / Kabelha l t er TECHNICAL SPECIFICATIONS ESPECIFICACIONES TÉCNICAS TECHNISCHE DATEN...
- Seite 2 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 1. Take out screw (A) with the allen key supplied and remove the plate (B) by pulling to free it from the magnet. 2. Fix the housing (C) to the wall using suitable screws and plugs (not supplied). NOTE: There must be a power point (socket) no more than about 2.3 metres away.
- Seite 3 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 5. Fix the cable holders to the ceiling in such a way that when hung (see drawing) the spotlight is in the desired position. 1- Unscrew and remove piece (F). 2- Fix piece (F) to the ceiling using a suitable screw and plug (not supplied).
- Seite 4 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 6. After installation is complete, remove the protective profile (D) of the spotlight by hand, breaking each profile along the pre- cut line. 7. If it is necessary to adjust the height of the light fitting, pull the cables through the piece (H), as shown in the drawing.
- Seite 5 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 9. If after plugging it into the power supply at the socket there is excess cable, the length can be adjusted by cutting it, as shown in the drawings: 1 - VERY IMPORTANT, take the plug out of the socket first.
- Seite 6 Wireflow Design by Arik Levy ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG SUPPLIED MATERIAL MATERIAL SUMINISTRADO GELIEFERTES MATERIAL 0347 0348 Allen key / Llave a llen / In busschlüssel Lamp structure / Estructura luminaria / Leuchte n-Struktur Cable holde rs / Sujet acables / Kabelha l t er TECHNICAL SPECIFICATIONS ESPECIFICACIONES TÉCNICAS TECHNISCHE DATEN...
- Seite 7 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 1. Take out screw (A) with the allen key supplied and remove the plate (B) by pulling to free it from the magnet. 2. Fix the housing (C) to the wall using suitable screws and plugs (not supplied). NOTE: There must be a power point (socket) no more than about 2.3 metres away.
- Seite 8 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 5. Fix the cable holders to the ceiling in such a way that when hung (see drawing) the spotlight is in the desired position. 1- Unscrew and remove piece (F). 2- Fix piece (F) to the ceiling using a suitable screw and plug (not supplied).
- Seite 9 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 6. After installation is complete, remove the protective profile (D) of the spotlight by hand, breaking each profile along the pre- cut line. 7. If it is necessary to adjust the height of the light fitting, pull the cables through the piece (H), as shown in the drawing.
- Seite 10 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 9. If after plugging it into the power supply at the socket there is excess cable, the length can be adjusted by cutting it, as shown in the drawings: 1 - VERY IMPORTANT, take the plug out of the socket first.
