RS-M228X

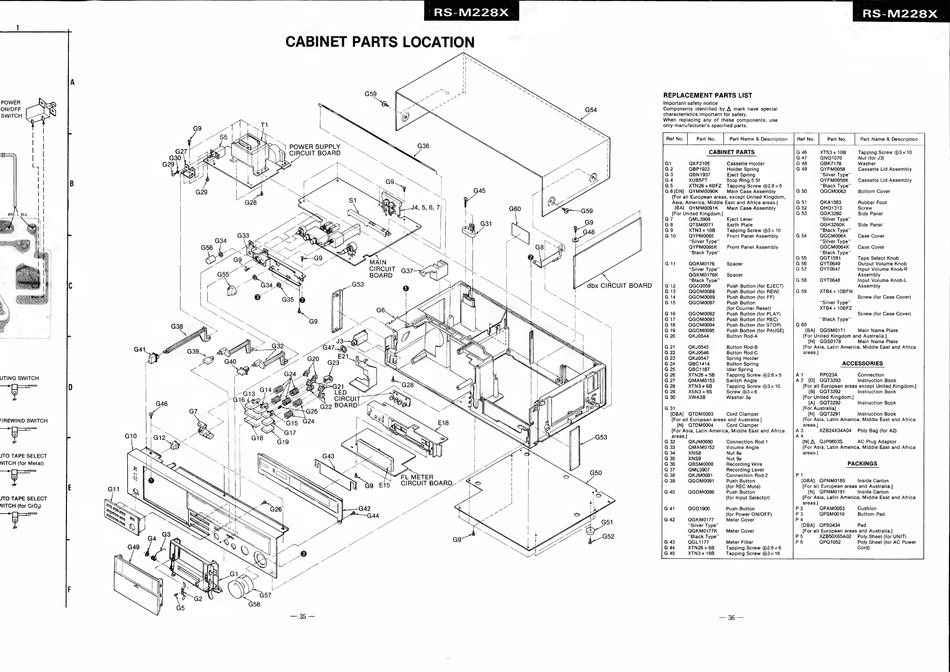

CABINET PARTS LOCATION
CIRCUIT
BOARD
es
dbx CIRCUIT BOARD
REPLACEMENT PARTS LIST
Important safety notice
Components
identified by A mark have special
characteristics important for safety.
When
replacing
any of these components,
use
only manufacturer's specified parts.
RS-M228X
Ref No. | Part No.
l Part Name & Description
Ref No
Part No.
Part Name & Description
CABINET PARTS
G 46
XTS3 + 10B
Tapping Screw @®3x 10
=
G47
QNQ1070
Nut (for J3)
G1
QKF2105
Cassette Holder
G 48
QBK7178
Washer
G2
QBP1923
Holder Spring
G49
QYFM0058
Cassette Lid Assembly
G3
QBN1937
Eject Spring
"Silver Type"
G4
XUB5FT
Stop Ring 5 5f
QYFMO058K
Cassette Lid Assembly
G5
XTN26+6BFZ
Tapping Screw @2.6x6
"Black Type"
G6[(DN]
QYMMO090K
Main Case Assembly
G50
QGCM0063
Bottom Cover
[For all European areas, except United Kingdom,
Asia, America, Middle East and Africa areas.]
G51
QKA1083
Rubber Foot
[BA]
QYMM0091K
Main Case Assembly
G52
QHQ1313
Screw
[For United Kingdom.]
G53
QGK3260
Side Panel
G7
QML3908
Eject Lever
"Silver Type"
G8
QTSM0071
Earth Plate
QGK3260K
Side Panel
G9
XTN3 + 10B
Tapping Screw @3~x 10
"Black Type"
G10
QYPMO0065
Front Panel Assembly
G 54
QGCM0064
Case Cover
"Silver Type"
"Silver Type"
QYPMOO065K
Front Panel Assembly
QGCM0064K
= Case Cover
"Black Type"
"Black Type"
G55
QGT1591
Tape Select Knob
Gil
QGKM0176
Spacer
G 56
QYT0649
Output Volume Knob
"Silver Type"'
G57
QYT0647
Input Volume Knob-R
QGKM0176K
Spacer
Assembly
"Black Type"
G 58
QYT0648
Input Volume Knob-L
G12
QGO02059
Push Button (for EJECT)
Assembly
G13
QGOM0088
Push Button (for REW)
G 59
XTB4 + 10BFN
G14
QGOM0089
Push Button (for FF)
Screw (for Case Cover)
G15
QGOM0097
Push Button
"Silver Type"
(for Counter Reset)
XTB4 + 10BFZ
G 16
QGOMO0092
Push Button (for PLAY)
Screw (for Case Cover)
G17
QGOM0093
Push Button (for REC)
"Black Type"
G18
QGOM0094
Push Button (for STOP)
G60
G19
QGOM0095
Push Botton (for PAUSE)
[BA]
QGSM0171
Main Name Plate
G 20
QKJ0544
Button Rod-A
[For United Kingdom and Australia.]
{N]
QGS0178
Main Name Plate
G21
QKJ0545
Button Rod-B
[For Asia, Latin America, Middle East and Africa
G 22
QKJ0546
Button Rod-C
areas.]
G 23
QKJ0547
Spring Holder
G24
QBC1414
Button Spring
ACCESSORIES
G 25
QBC1187
Idler Spring
G 26
XTN26 + 5B
Tapping Screw @2.6x5
Al
RP023A
Connection
G27
QMAM0153
Switch Angle
A2
[D]
QQT3293
Instruction Book
G 28
XTN3 + 6B
Tapping Screw @3~x 10
[For all European areas except United Kingdom.]
G 29
XSN3+6S
Screw @®3x6
(B]
QQT3292
Instruction Book
G 30
XWA3B
Washer 3¢
[For United Kingdom.]
[A]
QQT3292
Instruction Book
G31
[For Australia]
[DBA]
QTDM0003
Cord Clamper
[IN]
QQT3291
Instruction Book
[For all European areas and Australia.]
[For Asia, Latin America, Middle East and Africa
[N]
QTDM0004
Cord Clamper
areas.]
[For Asia, Latin America, Middle East and Africa
A3
XZB24X34A04
Poly Bag (for A2)
areas.]
A4
G 32
QKJMO0080
Connection Rod-1
[N] A QuUP0603S
AC Plug Adaptor
G 33
QMAM0152
G 34
XNS8
G35
XNS9
G 36
QBSM0008
G37
QML3907
G 38
QKJMO0081
G39
QGOM0091
G 40
QGOMO0096
G41
QG01900
G 42
QGKM0177
"Silver Type"
QGKM0177K
"Black Type"
G43
QGL1177
G 44
XTN26 + 6B
G 45
XTN3 + 16B
Volume Angle
Nut 84
Nut 96
Recording Wire
Recording Lever
Connection Rod-2
Push Button
(for REC Mute)
Push Button
(for Input Selector)
Push Button
(for Power ON/OFF)
Meter Cover
Meter Cover
Meter Filter
Tapping Screw @2.6x6
Tapping Screw @3~x 16
(For Asia, Latin America, Middle East and Africa
areas.]
PACKINGS
P1
[DBA]
QPNM0185
Inside Carton
{For all European areas and Australia.]
[N]
QPNM0191
Inside Carton
[For Asia, Latin America, Middle East and Africa
areas.]
P2
QPAM0053
Cushion
P3
QPSM0010
Buttom Pad
P4
[DBA]
QPS0434
Pad
[For all European areas and Australia.]
P5
XZB50X65A02
Poly Sheet (for UNIT)
P6
QPQ1052
Poly Sheet (for AC Power
Cord)
