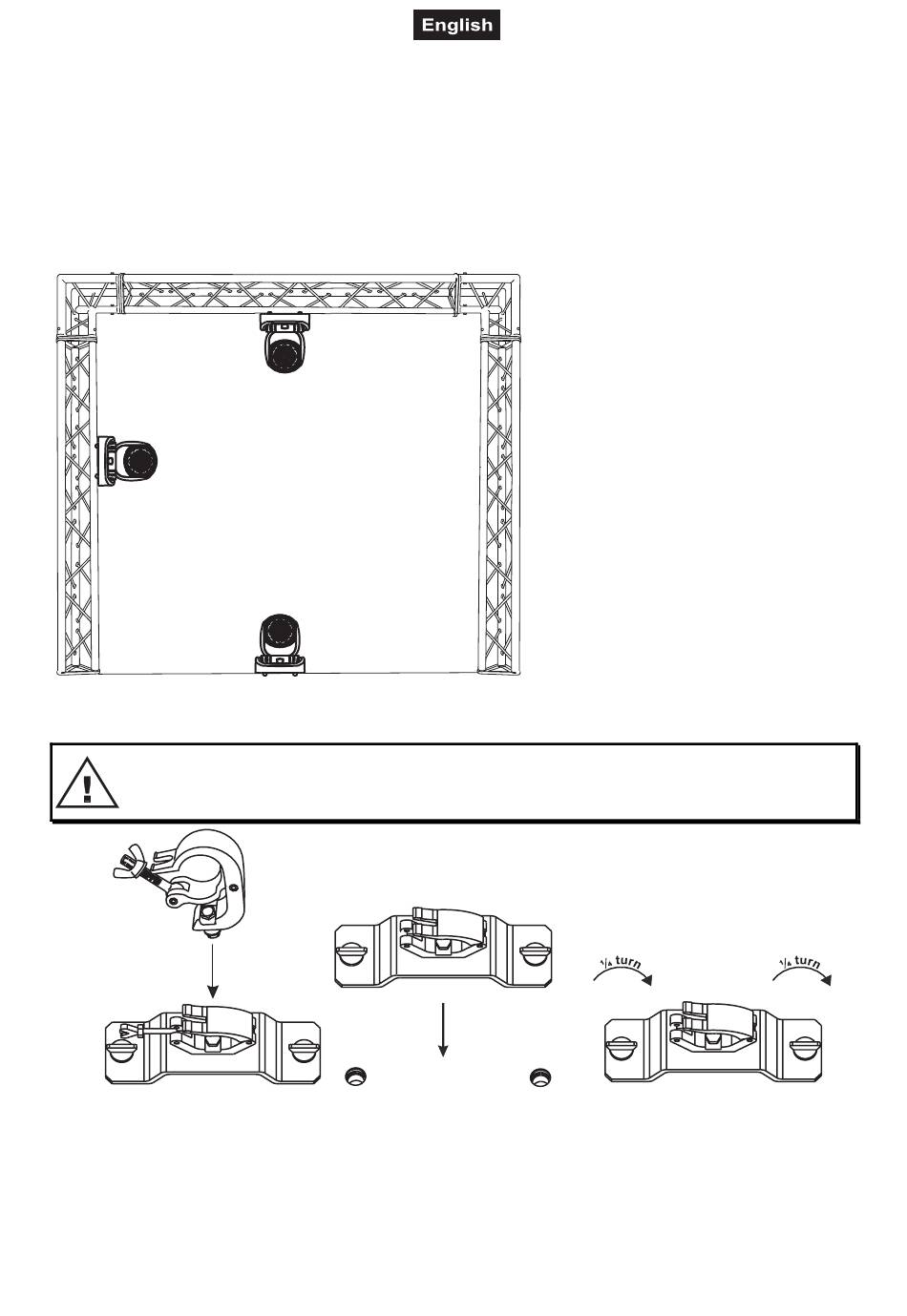

The fixture's base enables to be mounted in two ways.
The Moving-Head can be placed directly on the stage floor or rigged in any orientation on a truss without
altering its operation characteristics (see the drawing).
For overhead use (mounting height >100 cm), always install an appropriate safety bond.
You must only use safety bonds complying with DIN 56927, quick links complying with DIN 56927, shackles
complying with DIN EN 1677-1 and BGV C1 carbines. The safety bonds, quick links, shackles and the
carbines must be sufficiently dimensioned and used correctly in accordance with the latest industrial safety
regulations (e. g. BGV C1, BGI 810-3).
A safety bond which already hold the strain of a crash or which is defective must not be used again.
Before taking into operation for the first time, the installation has to be approved by an expert!
Screw one clamp each via a M10 screw and nut onto the Omega-holders.
Insert the quick-lock fasteners of the first Omega-holder into the respective holes on the bottom of the
device. Tighten the quick-lock fasteners fully clockwise. Install the second Omega-holder.
Please note: for overhead rigging in public
or industrial areas, a series of safety
instructions have to be followed that this
manual can only give in part. The operator
must therefore inform himself on the
current safety instructions and consider
them.
The manufacturer cannot be made liable
for
installations
precautions!
Install the safety bond by inserting the
quick link in the hole on the bottom of the
base Pull the safety bond over the trussing
system etc. Insert the end in the quick link
and tighten the fixation screw.
The maximum drop distance must never
exceed 20 cm.
DANGER TO LIFE!
