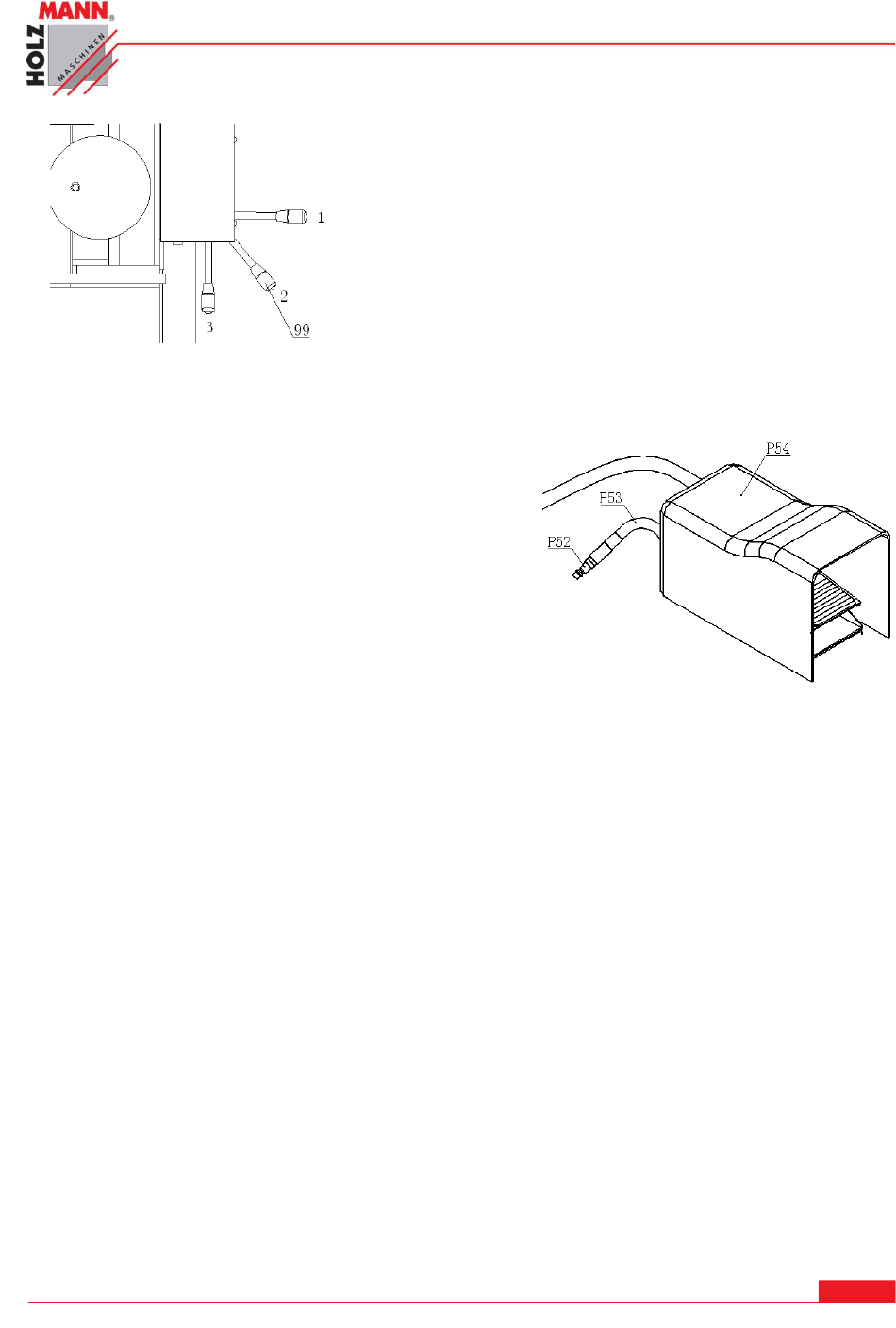

Fig .8
14.2.5 Piston´s extension and retraction WP 100H
Extending the Ram
can be operated either manually or by air.
Operating by air:
Connecting the air hose (P52) of air foot valve to the
compressor. (fig 9)
Turn the handle lever (99) of socket valve to position 3.
(fig 8)
Depress the air foot valve (P54), when the piston rod is
not under load, the air motor (P23) and air motor (P35)
working together, then the piston rod extending quickly.
When the piston rod is under load, the air motor (P35)
stopping working, and only the air motor (P23) is work-
ing, then the piston rod will extend slowly.
Operating manually
Insert the handle tube (50) to the low pressure socket as process 15.2.3 (B) . then pump the
handle and extend the piston rod for quicker operation of the ram.
Insert the handle tube (50) to the high pressure socket as process 15.2.3 (A). then pump the
handle and extend the piston rod for slower operation of the ram.
The operator can extend the piston rod either by air according to process 16.1.1 or manually ac-
cording to process
Please note that when you operate by air, NEVER operate manually according to pro-
cess 16.1.2.1 (Manual Low Pressure) at the same time.
Retracting the Ram
can be operated manually or by air.
Operated by air
Connecting the air hose (P52) of air foot valve to the compressor. (fig 9)
Turn the handle lever (99) of socket valve to position 1. (fig 8)
Depress the air foot valve (54), then the air motor (23) and air motor (P35) work together, and
the piston rod returns quickly.
Operating manually:
Insert the handle tube (50) to the low pressure socket as process 15.2.3 (B) . pumping the han-
dle returns the piston rod quickly.
