Inhaltszusammenfassung für D-Link DGS-1005A
- Seite 1 DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Manual RECYCLABLE V1.00...
- Seite 2 Microsoft Corporation. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. D-Link Corporation disclaims any proprietary interest in trademarks and trade names other than its own.
-
Seite 3: Inhaltsverzeichnis
D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Contents INTRODUCTION .................................. 1 ..............................1 THERNET ECHNOLOGY Fast Ethernet Technology ..............................1 Gigabit Ethernet Technology ............................1 ’ ............................1 REEN ECHNOLOGY ................................2 WITCH ESCRIPTION Features ................................... 2 ..............................3 RONT... - Seite 4 D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Preface The DGS-1005A/DGS-1008A Manual is divided into sections that describe the system installation and operating instructions with examples. Section 1, Introduction - A description of the physical features of the Switch, including LED indicators, ports and panel descriptions.
-
Seite 5: Safety Instructions
D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Safety Instructions Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential damage. Throughout this safety section, the caution icon ( ) is used to indicate cautions and precautions that you need to review and follow. - Seite 6 D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch When connecting or disconnecting power to hot-pluggable power supplies, if offered with your system, observe • the following guidelines: – Install the power supply before connecting the power cable to the power supply.
-
Seite 7: Protecting Against Electrostatic Discharge
D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Protecting Against Electrostatic Discharge Static electricity can harm delicate components inside your system. To prevent static damage, discharge static electricity from your body before you touch any of the electronic components, such as the microprocessor. You can do so by periodically touching an unpainted metal surface on the chassis. -
Seite 8: Introduction
Further, D-Link Green implement the newly ratified IEEE 802.3az Energy Efficient Ethernet standard for reducing energy consumption of network links during periods of low utilization by transitioning interfaces into low-power state without interrupting the network connection. -
Seite 9: Switch Description
Switch Description The DGS-1005A/DGS-1008A Switch is equipped with five or eight ports providing dedicated 10, 100, or 1000 Mbps bandwidth. These ports can be used for connecting PCs, printers, servers, routers, Switches, hubs, and other network devices. The five multi-speed ports use standard twisted pair cabling and are ideal for segmenting networks into small, connected subnets. -
Seite 10: Front-Panel Description

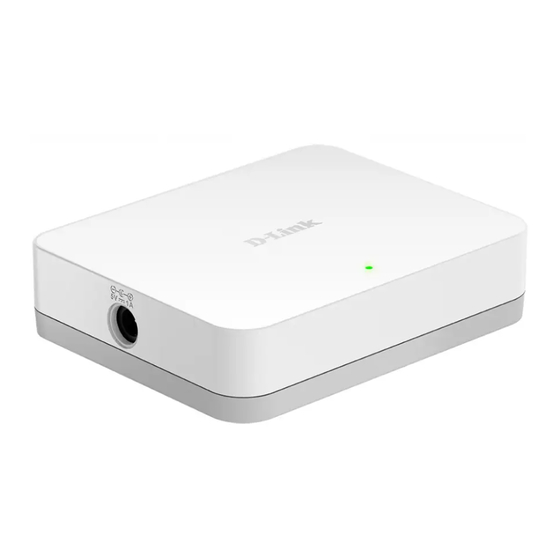

D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Front-Panel Description The LED indicators of the switch include Power and Link/Activity. The following shows the LED indicators for the switch, along with an explanation of each indicator. The Power LED indicator is located on the top side of the switch. This green indicator light is on when the switch is receiving power;... -
Seite 11: Rear Panel Description
D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Rear Panel Description 10/100/1000BASE-T Ports: Five or eight (5/8) Gigabit Ethernet, Auto-Negotiating ports (10/100/1000Mbps) Link/Act: This LED indicator light is green when the port is successfully connected to device and will blink as data is ... -
Seite 12: Side Panel Description
D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Side Panel Description DC Power Jack: Power is supplied through an external AC power adapter. Check the technical specification section for information about the AC power input voltage. Figure 1-3. Side Panel View... -
Seite 13: Installation
Quide installation guide • If any item is missing or damaged, please contact your local D-Link reseller for replacement. Before You Connect to the Network The site where you install the Switch may greatly affect its performance. Please follow these guidelines for setting up the Switch. -
Seite 14: Power On
D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Power On Plug one end of the AC to DC power adapter into the power connector of the Switch and the other end into the local power source outlet. The Power LED indicator light is green when the Switch is receiving power; otherwise, it is off. -
Seite 15: Connecting The Switch
D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Section 3 Connecting the Switch Switch to End Node Switch to Hub or Switch Connecting to a Server NOTE: All 5/8 high-performance NWay Ethernet ports can support both MDI-II and MDI-X connections. Switch to End Node End nodes include PCs outfitted with a 10, 100, or 1000 Mbps RJ-45 Ethernet/Fast Ethernet Network Interface Card (NIC) and most routers. - Seite 16 D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Figure 3-2. Switch connected to a port on a hub or switch using either a straight or crossover cable–any standard Ethernet cable is fine Status Description Power Solid green The Switch is powered and working.
-
Seite 17: Technical Specifications
10% ~ 90% non-condensing Storage Humidity 5% ~ 90% non-condensing DGS-1005A : 94 x 75 x 22.45 mm Dimensions: DGS-1008A: 142 x 75 x 22.45 mm CE Class B, FCC class B, ICES-003 class B, VCCI class B, LVD, RCM, Anatel,... -
Seite 18: Regulatory Statements
D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch Appendix B Regulatory Statements CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. - Seite 19 D-Link DGS-1005A/DGS-1008A 5/8-port Gigabit Easy Desktop Switch • Vermeiden Sie, dass Speisen oder Flüssigkeiten auf Ihr Produkt gelangen, und stecken Sie keine Gegenstände in die Gehäuseschlitze oder -öffnungen Ihres Produkts. • Verwenden Sie dieses Produkt nicht in unmittelbarer Nähe von Wasser und nicht in Bereichen mit hoher Luftfeuchtigkeit oder Kondensation, es sei denn, es ist speziell zur Nutzung in •...
- Seite 20 D-Link recommends that you always switch off or unplug your D-Link products when they are not in use. By doing so you will help to save energy and reduce CO2 emissions.
- Seite 21 D-Link raadt aan om steeds uw D-Link producten uit te schakelen of uit de stekker te halen wanneer u ze niet gebruikt. Door dit te doen bespaart u energie en beperkt u de CO2-emissies.
- Seite 22 D-Link og miljøet Hos D-Link forstår vi oss på og er forpliktet til å minske innvirkningen som vår drift og våre produkter kan ha på miljøet. For å minimalisere denne innvirkningen designer og lager D-Link produkter som er så miljøvennlig som mulig, ved å...
- Seite 23 D-Link anbefaler, at du altid slukker eller frakobler dine D-Link-produkter, når de ikke er i brug. Ved at gøre det bidrager du til at spare energi og reducere CO2-udledningerne.
