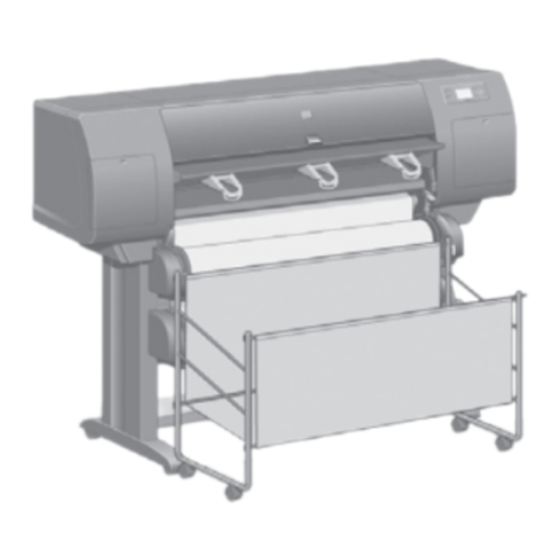

HP Designjet 4520/4520ps
Printer Assembly Instructions
HP Designjet 4520/4520ps
Printer Instructions
d'assemblage
HP Designjet 4520/4520ps
Printer Anleitung zum
Zusammenbau
HP Designjet 4520/4520ps
Printer Istruzioni per
I'installazione
© 2009 Hewlett-Packard Company
Inkjet Commercial Division
Avenida Graells 501 · 08174
Sant Cugat del Vallès
Barcelona · Spain
All rights reserved
Printed in Germany · Imprimé en Allemagne · Stampato in Germania
Scanner (mfp only) / Scanneur (mfp uniquement) /
Scanner (nur mfp) / Scanner (solo MFP)
HP Designjet 4520 with Scanner.
If you have bought the HP Designjet 4520 with
a scanner, you can reduce the overall setup time
by assembling the scanner first and then switching
it on. The scanner will take one hour to warm up
when started for the first time.
HP Designjet 4520 avec scanneur.
Si vous avez acheté l'imprimante HP Designjet 4520
avec un scanneur, vous pouvez réduire le temps
global d'installation en assemblant le scanneur en
premier et en le mettant sous tension. Une heure de
préchauffage est nécessaire au scanneur lors de sa
première utilisation.
HP Designjet 4520 mit Scanner.
Wenn Sie den HP Designjet 4520 mit einem Scanner
erworben haben, können Sie den Zeitaufwand für die
Einrichtung verkürzen, indem Sie zuerst den Scanner
zusammen- bauen und ihn anschließend einschalten.
Der Scanner benötigt nach dem ersten Start eine
Aufwärmphase von 1 Stunde.
HP Designjet 4520 con scanner.
Se avete acquistato HP Designjet 4520 con uno
scanner, potete ridurre il tempo di impostazione
generale assemblando prima lo scanner e quindi
accendendolo. Alla prima accensione, lo scanner
impiegherà un'ora per riscaldarsi.
?
In case of difficulty, please consult:
- Your printer's Embedded Web Server
- Driver and Documentation CD
En cas de problème, consultez :
- Serveur Web intégré de votre imprimante
- CD contenant le pilote et la documentation
Im Fall von Problemen stehen Ihnen die folgenden
Informationsquellen zur Verfügung:
- Integrierter Web-Server des Druckers
- Treiber- und Dokumentations-CD
In caso di difficoltà, consultare:
- Embedded Web Server della stampante
- CD contenente i driver e la documentazione
Read these instructions carefully...
What you will need for this procedure
- Because some of the components of the printer
are bulky, you will need up to four people to
lift them. When this is necessary, this symbol is
displayed:
- To assemble the printer you will need at least
3 × 5 m (10 × 16 ft) of empty floor space,
and about four hours.
Lisez attentivement les instructions suivantes...
Conditions requises pour cette procédure
- Dans la mesure où certains des composants de
l'imprimante sont volumineux, jusqu'à quatre
personnes peuvent être requises pour les
soulever. Dans ce cas, le symbole ci-dessous
s'affiche :
- Pour assembler l'imprimante, vous devez
disposer d'un espace libre d'au moins 3 × 5 m
et compter environ quatre heures.
Lesen Sie diese Anleitung sorgfältig durch.
Voraussetzungen
- Da einige Komponenten des Druckers sehr
sperrig sind, werden bis zu vier Personen
zum Anheben benötigt. In Situationen, in
denen dies erforderlich, wird dieses Symbol
verwendet:
- Für den Zusammenbau des Druckers wird eine
freie Bodenfläche von ca. 3 x 5 m benötigt.
Die Aktion dauert etwa vier Stunden. Für
den Zusammenbau des Druckers wird eine
freie Bodenfläche von ca. 3 x 5 m benötigt.
Die Aktion dauert etwa vier Stunden.
Leggete queste istruzioni attentamente...
Cosa è necessario per questa procedura
- Dato il peso di alcuni componenti della
stampante, potrebbero essere necessarie fino a
quattro persone per sollevarli. In questo caso,
viene visualizzato il seguente simbolo:
- Per assemblare la stampante è necessario uno
spazio pari a 3 × 5 m e circa quattro ore di
tempo.
x4
10 cm
179 cm
Printer working area
Before you start unpacking, consider where
you are going to put the assembled printer.
You should allow some clear space at the back
and at the front of the printer. The recommended
clearances are shown in the illustration above.
Zone de travail de l'imprimante
Avant de commencer à déballer, pensez
à l'emplacement où l'imprimante assemblée sera
placée. Vous devez ménager un espace à l'avant
et à l'arrière de l'imprimante. Les espaces
recommandés sont indiqués dans l'illustration
ci-dessus.
Aufstellort des Druckers
Überlegen Sie sich vor dem Auspacken, wo
Sie den zusammengebauten Drucker aufstellen
möchten. Vor und hinter dem Drucker muss
freier Raum vorhanden sein. Die empfohlenen
Abstände zu Wänden und anderen Gegen-
ständen sind in der obigen Abbildung
angegeben.
Area operativa della stampante
Prima di cominciare a disimballare la stampante,
considerare lo spazio in cui verrà sistemata una
volta assemblata. È necessario lasciare spazio
sia dietro che davanti alla stampante. Lo spazio
consigliato è illustrato nella figura.
