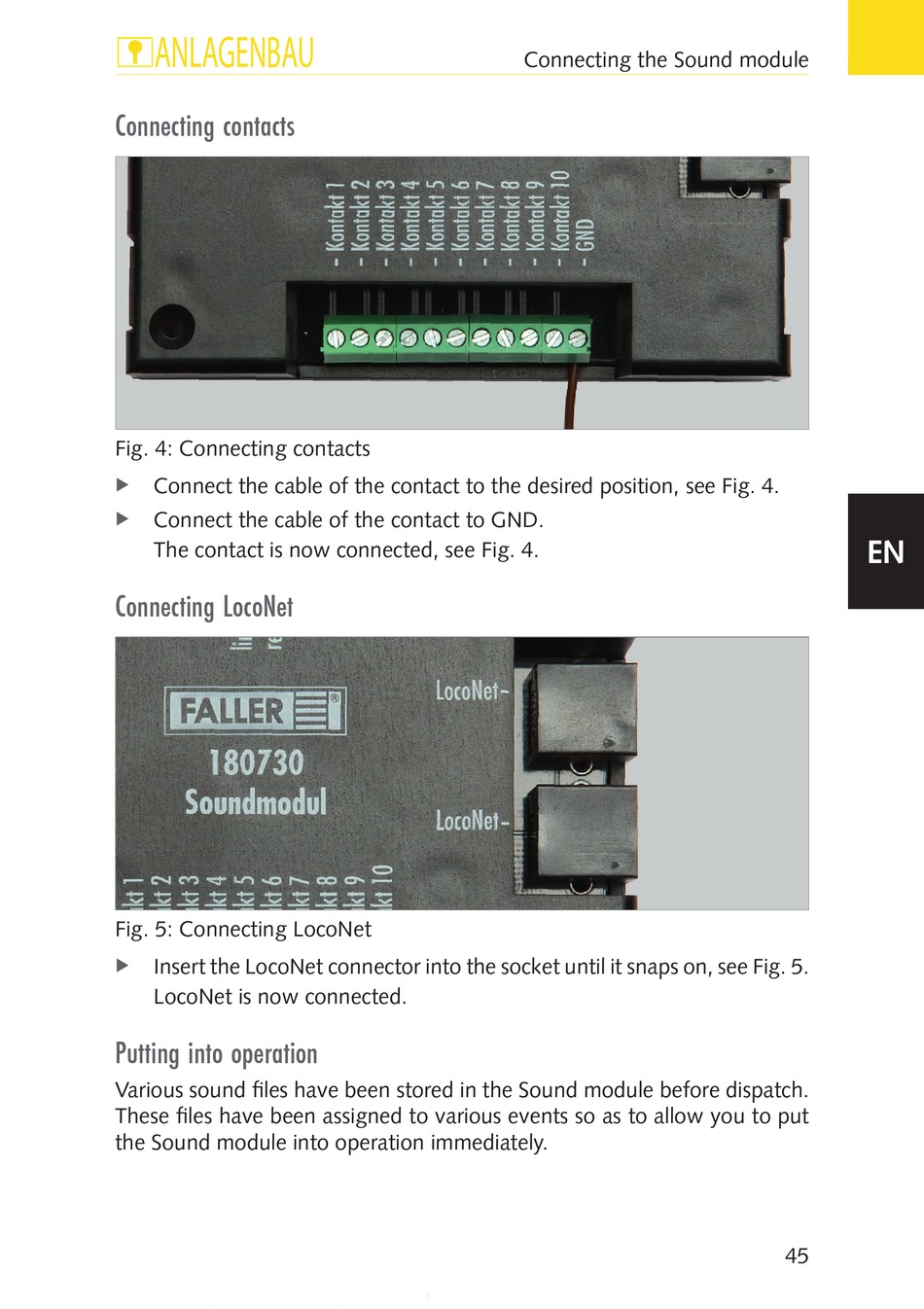

Connecting contacts
Fig.4:Connectingcontacts
Connectthecableofthecontacttothedesiredposition,seeFig.4.
X
ConnectthecableofthecontacttoGND.
X
Thecontactisnowconnected,seeFig.4.
Connecting LocoNet
Fig.5:ConnectingLocoNet
InserttheLocoNetconnectorintothesocketuntilitsnapson,seeFig.5.
X
LocoNetisnowconnected.
Putting into operation
VarioussoundfileshavebeenstoredintheSoundmodulebeforedispatch.
Thesefileshavebeenassignedtovariouseventssoastoallowyoutoput
theSoundmoduleintooperationimmediately.
ConnectingtheSoundmodule
