LHC-M51, PPC-M51
SI00489O-C

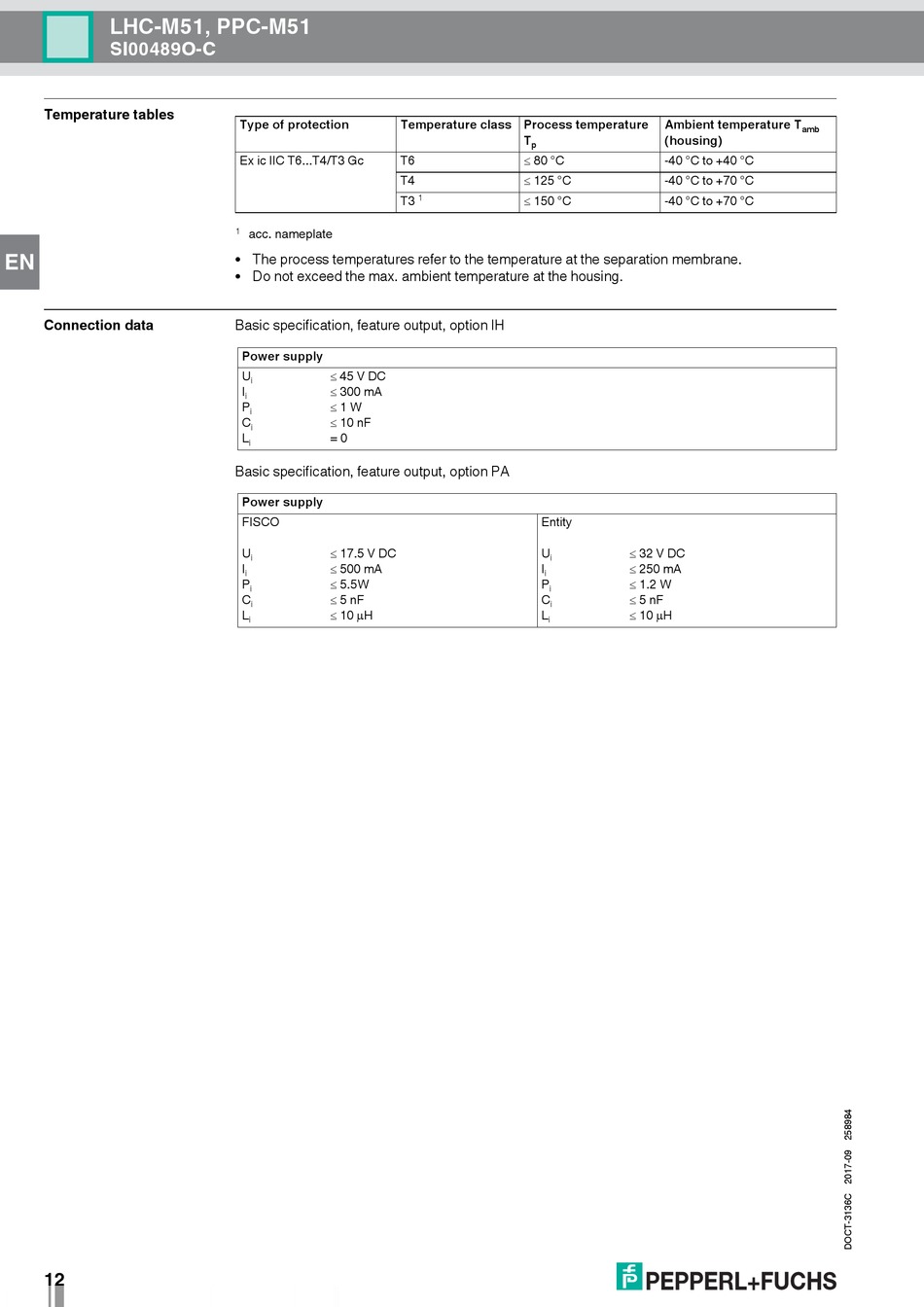

Temperature tables
EN
Connection data
12
Type of protection Temperature class Process temperature
Ex ic IIC T6...T4/T3 Gc T6
T4
T3
1 acc. nameplate
• The process temperatures refer to the temperature at the separation membrane.
• Do not exceed the max. ambient temperature at the housing.
Basic specification, feature output, option IH
Power supply
U  45 V DC
i
I  300 mA
i
P  1 W
i
C  10 nF
i
L = 0
i
Basic specification, feature output, option PA
Power supply
FISCO
U  17.5 V DC
i
I  500 mA
i
P  5.5W
i
C  5 nF
i
L  10 H
i
T
p
 80 °C
 125 °C
1  150 °C
Entity
U
i
I
i
P
i
C
i
L
i
Ambient temperature T
amb
(housing)
-40 °C to +40 °C
-40 °C to +70 °C
-40 °C to +70 °C
 32 V DC
 250 mA
 1.2 W
 5 nF
 10 H
