EngyCal® RH33
Endress+Hauser flowmeters
Flow sensors with PFM or
pulse output:
Proline Prowirl 72 and
Proline Prosonic Flow 92F
Flow sensors with current or
pulse output:
Proline Promag 10W
Proline Promag 50W
Proline Promag 51W
DP sensors:
Deltabar S PMD 70/75
Endress+Hauser

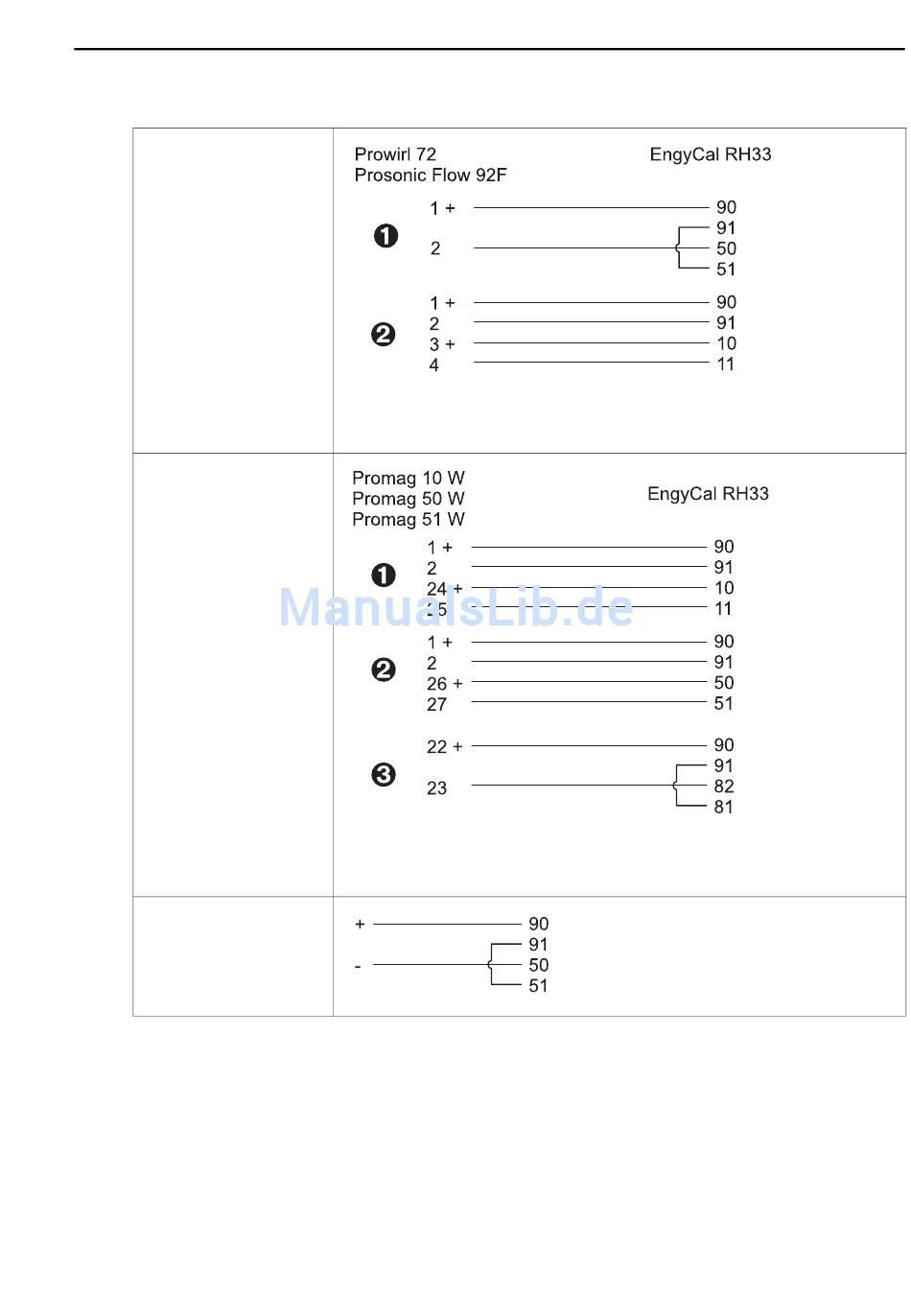

1 = PFM, 2 = Pulse: terminals 90/91 transmitter power supply, alternatively via
external supply unit
1 = pulse input, 2 = current input, 3 = direction signal with open collector
Terminals 90/91 transmitter power supply, alternatively via external supply unit
Wiring
a0014181
a0014183
a0014184
