Power supply
• The refrigerator must be connected to a properly earthed socket in line with relevant valid country
regulations before operating;
• Check the data label (which is on the side of the refrigerator) for voltage and frequency corresponds
to your local one; If not, don't plug your cable into the socket;
When install a Heat pipe Refrigerator, ventilation should be considered seriously, please refer to the
following:
1. there should be left at least 200 cm³ for ventilation
2. the distance between wall and refrigerator side should be at least 20mm
3. the bottom should be left at least 50mm for air fl owing
4. air passing through must not be preheated
5. entire cooling system should be considered in the ventilation

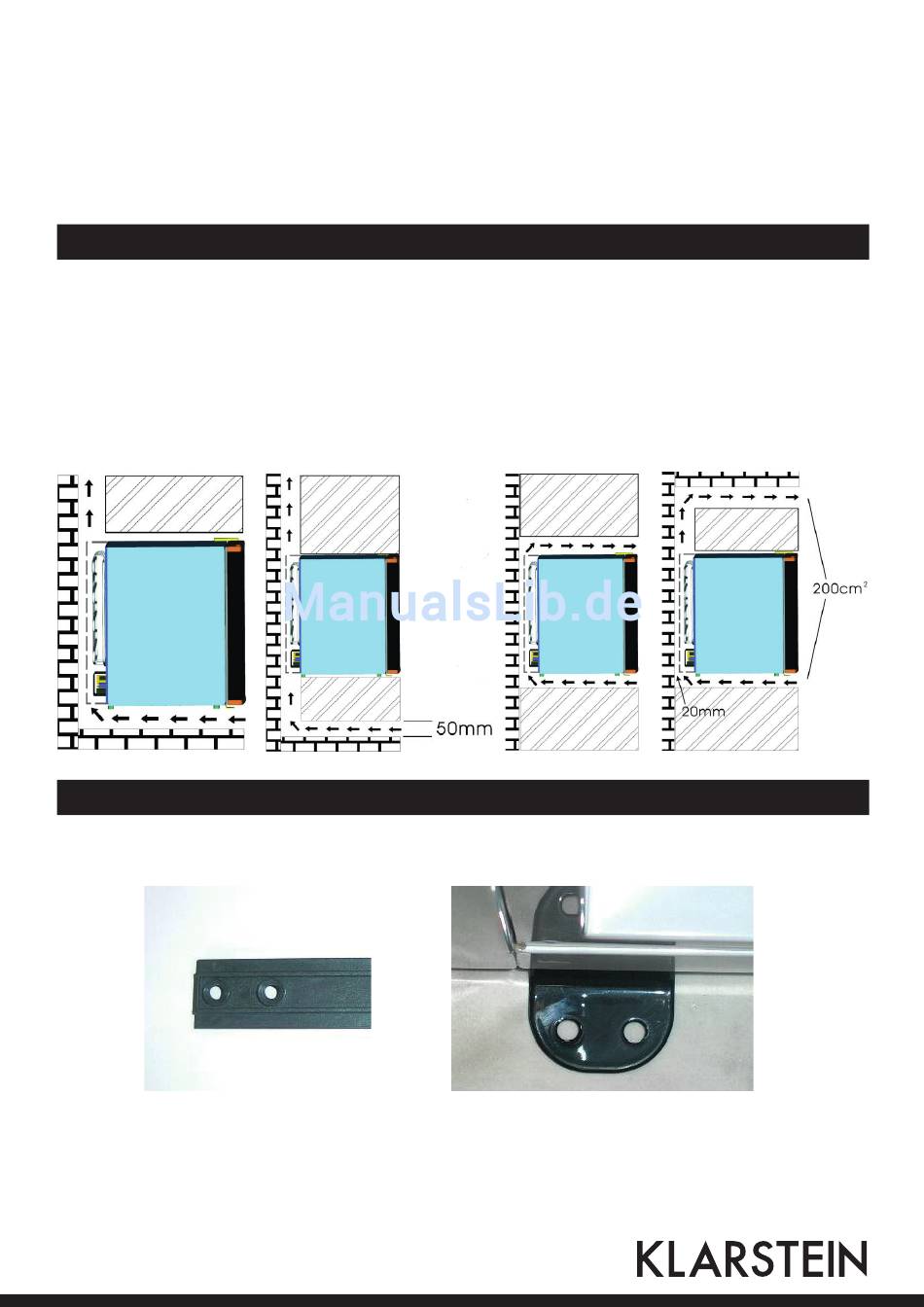

6. the following four pictures show four installation ways:
1. Use two self-screws to fi x the sliding hinge.
2. After checking the suitable distance, use two self-screws to fi x the bottom feet respectively.
1. If the refrigerator is closed, there should be have a distance of 1-2mm between the wooden
cabinet door and the surrounding.
2. There must be left a distance of 6-8mm between the wooden cabinet and the refrigerator door.
3. The maximum distance between the refrigerator's and the cabinet's hinge is about 40mm.
9

Installation Instruction

Instruction of the Sliding Hinge
