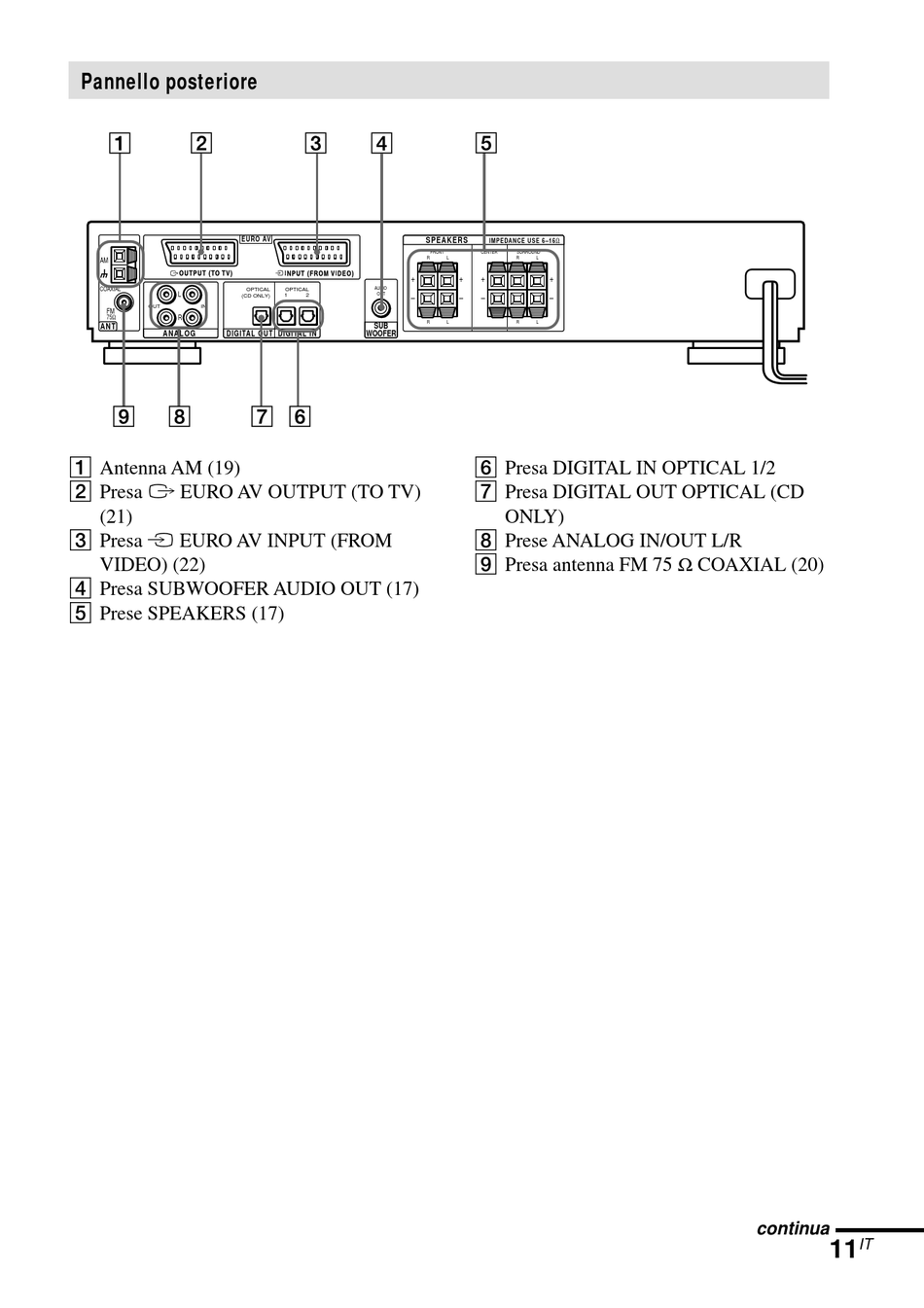

Pannello posteriore

EURO AV
AM
COAXIAL
L
(CD ONLY)
OUT IN
FM
75Ω R
ANT
ANALOG DIGITAL OUT DIGITAL IN
1 Antenna AM (19)
2 Presa T EURO AV OUTPUT (TO TV)
(21)
3 Presa t EURO AV INPUT (FROM
VIDEO) (22)
4 Presa SUBWOOFER AUDIO OUT (17)
5 Prese SPEAKERS (17)
+
AUDIO
OPTICAL OPTICAL
OUT
1 2
–
SUB
WOOFER
SPEAKERS
IMPEDANCE USE 6–16Ω
FRONT CENTER SURROUND
R L R L
+ + +
– – –
R L R L
6 Presa DIGITAL IN OPTICAL 1/2
7 Presa DIGITAL OUT OPTICAL (CD
ONLY)
8 Prese ANALOG IN/OUT L/R
9 Presa antenna FM 75 Ω COAXIAL (20)
continua
IT
11
