(12) LEFT OUTPUT
Pole terminal for left speaker connection.
(13) RIGHT OUTPUT
Pole terminal for right speaker connection.
(14) LEFT OUTPUT
Speaker connection left for the connection with Speakon ® plugs.
(15) RIGHT OUTPUT
Speaker connection right for the connection with Speakon ® plugs.
(16) MAINS switch
Switch to select the operating voltage. Loosen the two screws of the switch cover and open it. With a suit-
able screw driver you set the switch to the standard mains voltage in your country.
It is absolutely necessary to look in the chapter Changing of Fuse, since the value of the fuse needs
to be selected according to the set distribution voltage.
Close the cover and tighten the screws back on.
(17) Power supply and fuse holder
See chapter Terminal Panel on the Back - MAINS Switch and Changing of Fuse
(18) POWER switch
Switches the power amplifier on / off.

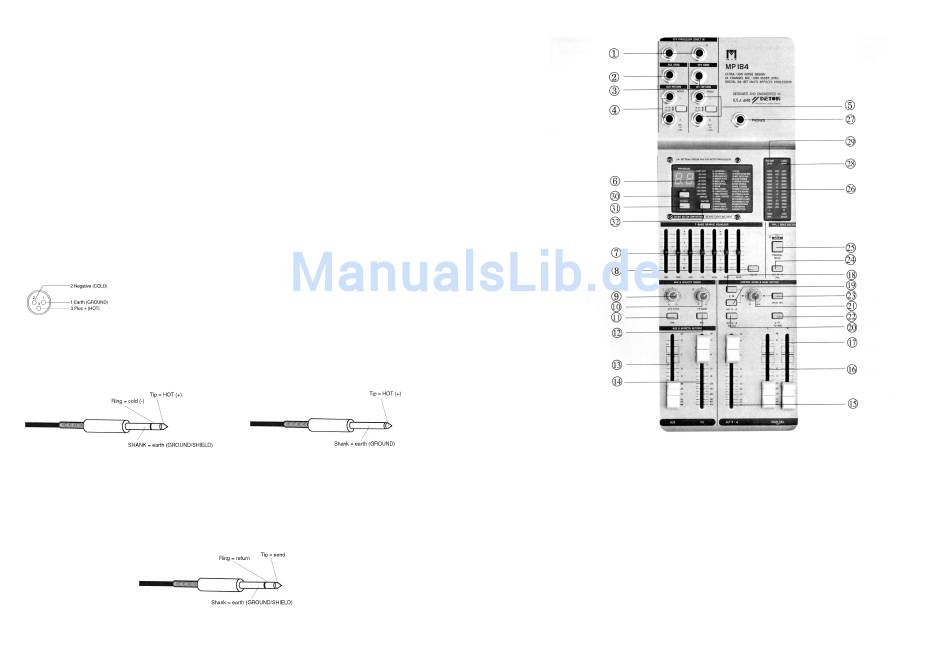

Jack and plug assignment
MIC OUTPUT / MAIN OUTPUT jacks XLR
LINE jacks INPUT OUTPUT 6.3mm jack plug
symmetrical assignment
INSERT jacks 6.3mm jack plug
To be able to use the insert connection as signal
input and output at the same time, a special Y con-
necting cable is necessary (insert plug assignment).
24
asymmetrical assignment
To be able to use the insert connection only as sig-
nal output, a normal 6.3 mono jack cable is neces-
sary. The signal is then no longer available for further
use in this cable.
Master Unit
(1) EFX PROCESSOR DIRECT-IN jacks
External signal inputs L/R for digital 24-bit multi effect processor.
(2) AUX-SEND jack
AUX signal output.
(3) FX-SEND jack
Effect (FX) signal output.
(4) AUX-RETURN jacks
AUX signal inputs L/R.
(5) FX-RETURN jacks
Effect (FX) signal inputs L/R
(6) 24-bit DUAL ENGINE MULTI-EFFECTS PROCESSOR
Digital signal processors with 20 Bit AD/DA transducer and 46 KHz sampling rate. With 32 pre-programmed
sound effects.
(7) 7-BAND GRAPHIC EQUALIZER
Makes the adjustment of ± 10 dB at frequencies of 60 Hz, 160 Hz, 410 Hz, 1.1 KHz, 2.3 KHz, 6.2 KHz and
15.6 KHz possible.
21
