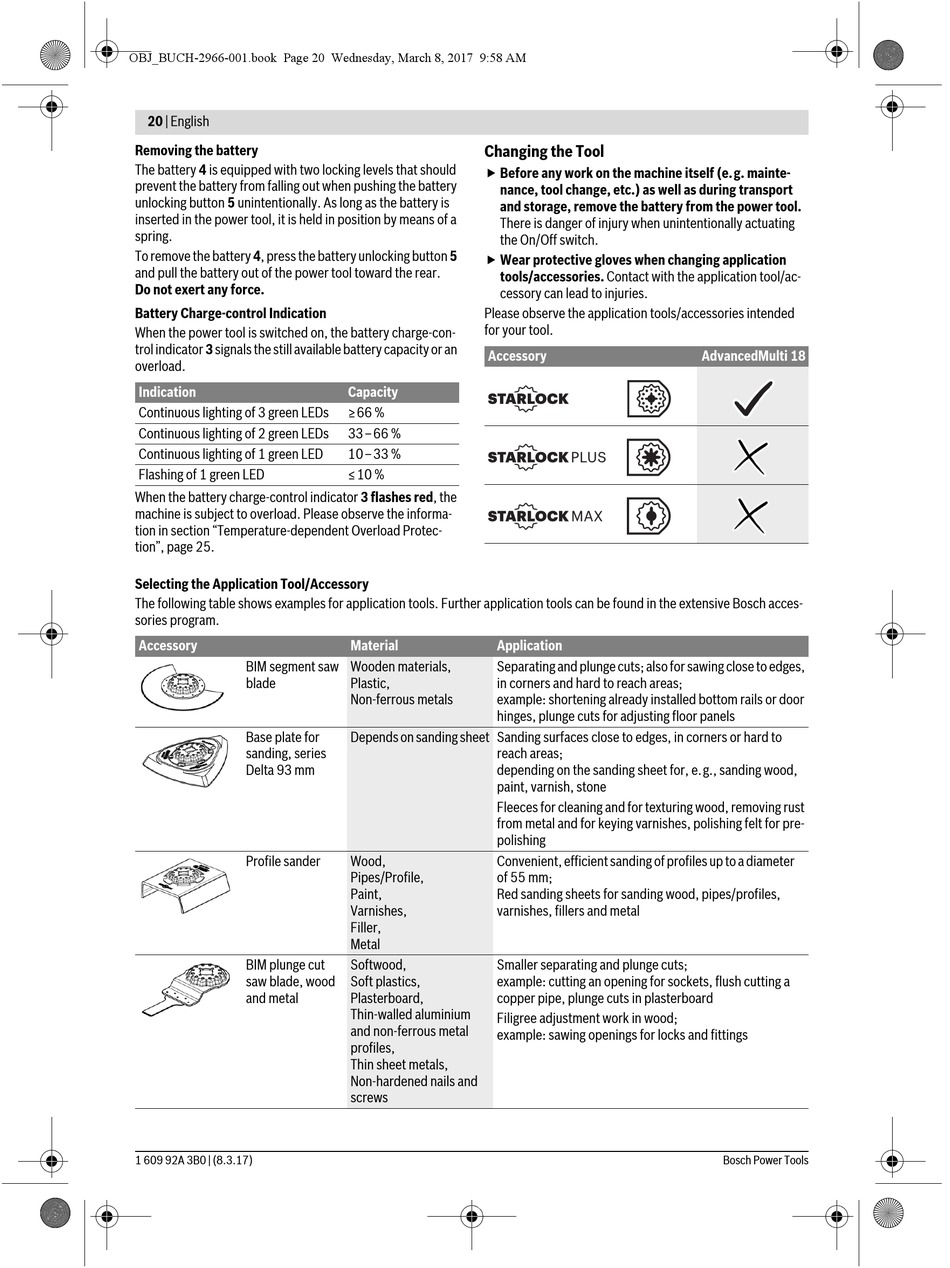

20 | English
Removing the battery
The battery 4 is equipped with two locking levels that should
prevent the battery from falling out when pushing the battery
unlocking button 5 unintentionally. As long as the battery is
inserted in the power tool, it is held in position by means of a
spring.
To remove the battery 4, press the battery unlocking button 5
and pull the battery out of the power tool toward the rear.
Do not exert any force.
Battery Charge-control Indication
When the power tool is switched on, the battery charge-con-
trol indicator 3 signals the still available battery capacity or an
overload.
Indication
Continuous lighting of 3 green LEDs
Continuous lighting of 2 green LEDs
Continuous lighting of 1 green LED
Flashing of 1 green LED
When the battery charge-control indicator 3 flashes red, the
machine is subject to overload. Please observe the informa-
tion in section "Temperature-dependent Overload Protec-
tion", page 25.
Selecting the Application Tool/Accessory
The following table shows examples for application tools. Further application tools can be found in the extensive Bosch acces-
sories program.
Accessory
BIM segment saw
blade
Base plate for
sanding, series
Delta 93 mm
Profile sander
BIM plunge cut
saw blade, wood
and metal
1 609 92A 3B0 | (8.3.17)

Changing the Tool

 Before any work on the machine itself (e.g. mainte-
nance, tool change, etc.) as well as during transport
and storage, remove the battery from the power tool.
There is danger of injury when unintentionally actuating
the On/Off switch.
 Wear protective gloves when changing application
tools/accessories. Contact with the application tool/ac-
cessory can lead to injuries.
Please observe the application tools/accessories intended
for your tool.
Accessory
Capacity
≥66 %
33–66 %
10–33 %
≤10 %
Material Application
Wooden materials, Separating and plunge cuts; also for sawing close to edges,
Plastic, in corners and hard to reach areas;
Non-ferrous metals example: shortening already installed bottom rails or door
hinges, plunge cuts for adjusting floor panels
Depends on sanding sheet Sanding surfaces close to edges, in corners or hard to
reach areas;
depending on the sanding sheet for, e.g., sanding wood,
paint, varnish, stone
Fleeces for cleaning and for texturing wood, removing rust
from metal and for keying varnishes, polishing felt for pre-
polishing
Wood, Convenient, efficient sanding of profiles up to a diameter
Pipes/Profile, of 55 mm;
Paint, Red sanding sheets for sanding wood, pipes/profiles,
Varnishes, varnishes, fillers and metal
Filler,
Metal
Softwood, Smaller separating and plunge cuts;
Soft plastics, example: cutting an opening for sockets, flush cutting a
Plasterboard, copper pipe, plunge cuts in plasterboard
Thin-walled aluminium
Filigree adjustment work in wood;
and non-ferrous metal
example: sawing openings for locks and fittings
profiles,
Thin sheet metals,
Non-hardened nails and
screws
AdvancedMulti 18
