ENGLISH

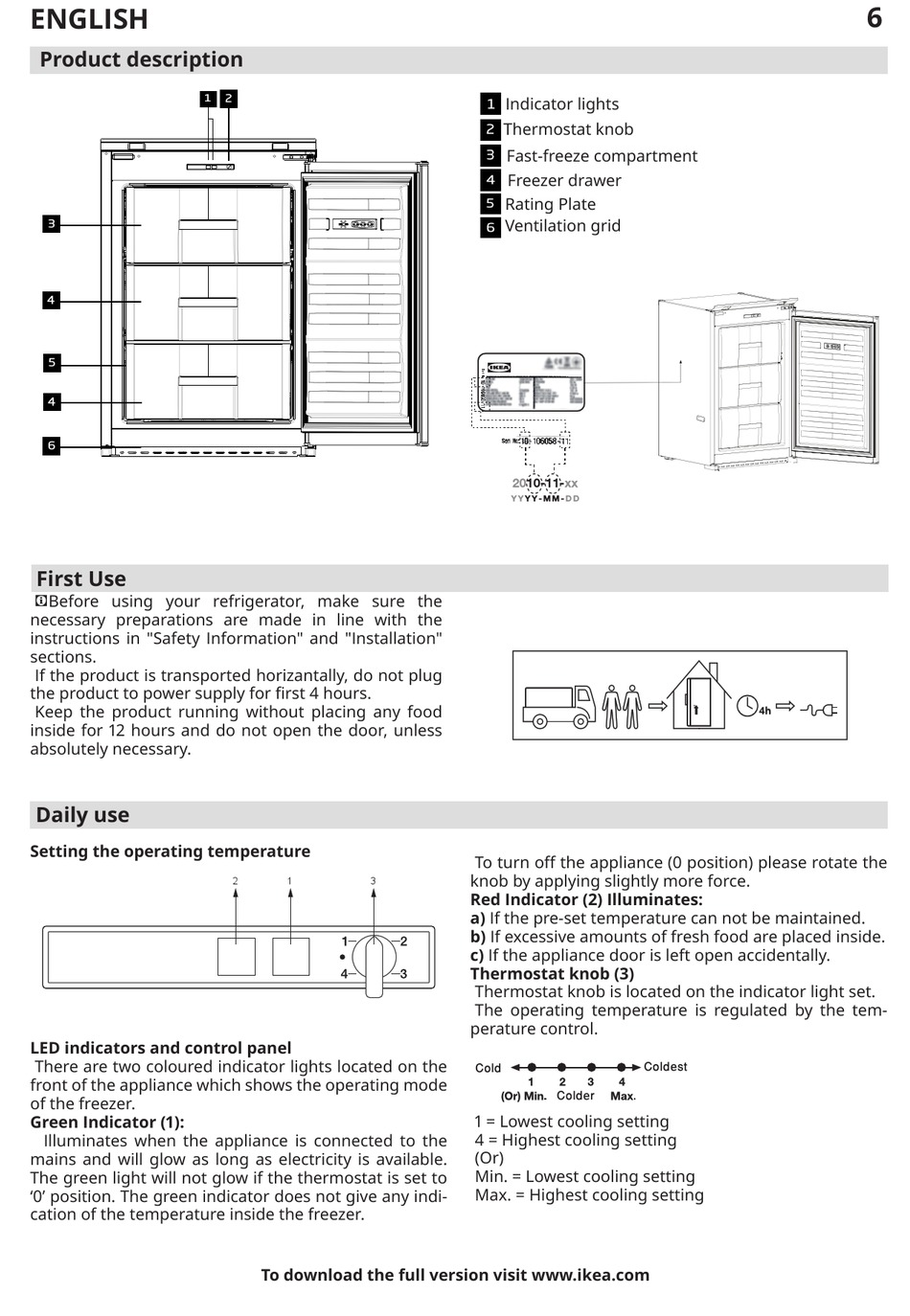

Product description
3
4
5
4
6
First Use
CBefore using your refrigerator, make sure the
necessary preparations are made in line with the
instructions in "Safety Information" and "Installation"
sections.
If the product is transported horizantally, do not plug
the product to power supply for first 4 hours.
Keep the product running without placing any food
inside for 12 hours and do not open the door, unless
absolutely necessary.
Daily use
Setting the operating temperature
LED indicators and control panel
There are two coloured indicator lights located on the
front of the appliance which shows the operating mode
of the freezer.
Green Indicator (1):
Illuminates when the appliance is connected to the
mains and will glow as long as electricity is available.
The green light will not glow if the thermostat is set to
'0' position. The green indicator does not give any indi-
cation of the temperature inside the freezer.
2
1
2 1 3
To download the full version visit www.ikea.com
Indicator lights
Thermostat knob
Fast-freeze compartment
Freezer drawer
Rating Plate
Ventilation grid
2010-11-xx
Y Y Y Y - M M - D D
2010-11-xx
Y Y Y Y - M M - D D
To turn off the appliance (0 position) please rotate the
knob by applying slightly more force.
Red Indicator (2) Illuminates:
a) If the pre-set temperature can not be maintained.
b) If excessive amounts of fresh food are placed inside.
c) If the appliance door is left open accidentally.
Thermostat knob (3)
Thermostat knob is located on the indicator light set.
The operating temperature is regulated by the tem-
perature control.
Cold
Colder
1 = Lowest cooling setting
4 = Highest cooling setting
(Or)
Min. = Lowest cooling setting
Max. = Highest cooling setting
Coldest
6
