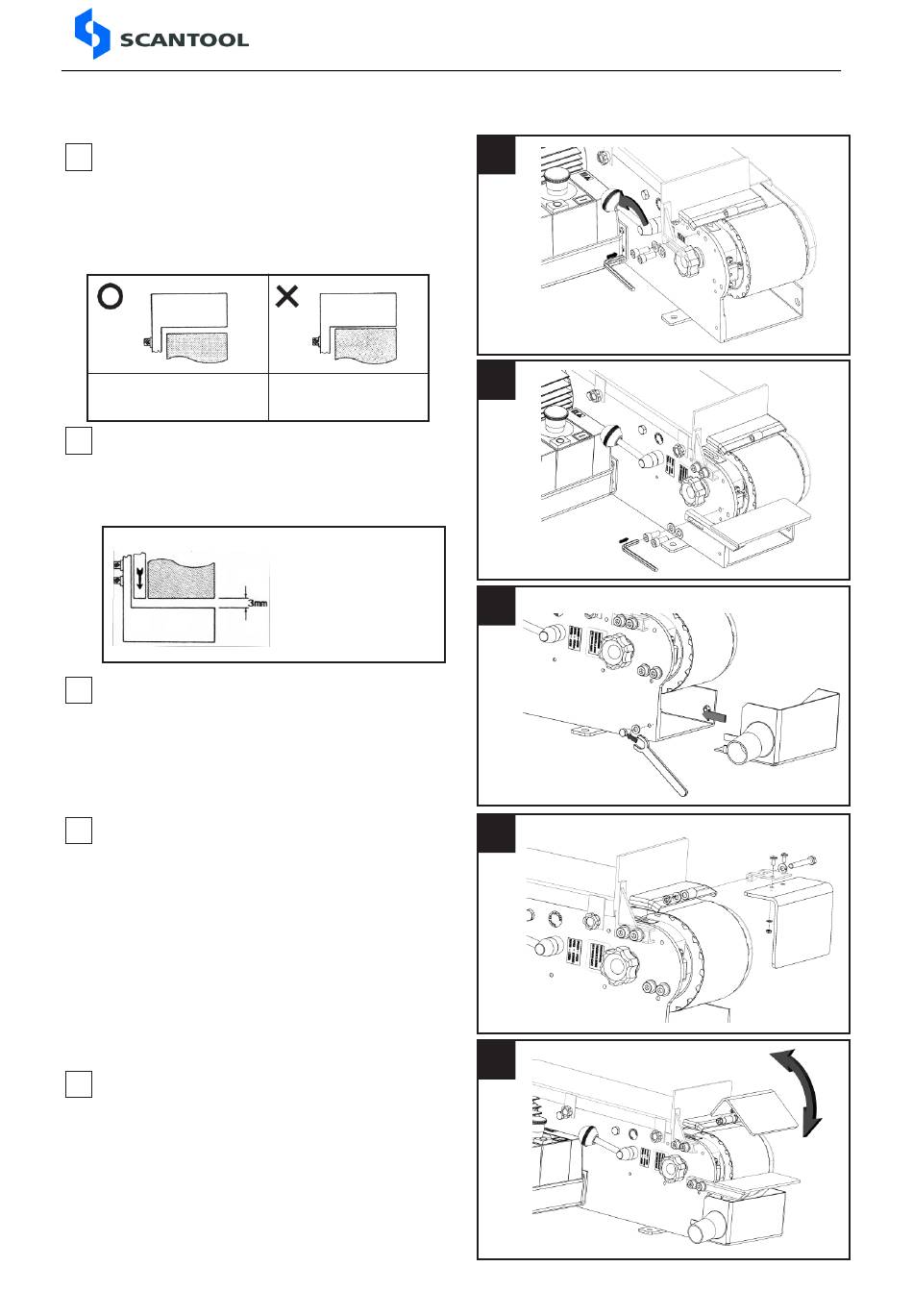

ASSEMBLY OF FITTINGS

The Set Up of Sanding Stop Plate
1
●Push down the belt tension lever to gain tension.
The belt tension was totally released be- fore
delivery ex works.
Install the sanding stop plate and make sure it
does not touch the sanding belt.
A safety distance between the
sanding stop plate and sanding
belt.
The Set Up of Working Table
2
Put working table at correct position and keep
proper distance to the sanding belt.
The Set Up of Dust Collector
3
Fix dust collector unit by using two screws on each
side. Read page 8 for more information.
The Set Up of Eye Shield
4
Install the eyeshield to the machine and make
necessary adjustment to gain the maximum
protection. Read page 8 (exploded view) for more
information.
5 The Adjustment of Eye Shield
Sanding stop plate touches
sanding belt.
A 3mm distance between
working table and sand-
ing belt is required.
1
2
3
4
5
