DQOR CB(W)
®
CLUSTER MOUNT BRACKET FOR DQOR LOUDSPEAKERS
DESCRIPTION
The robust mounting bracket for DQOR speakers for ceiling or floor mounting is made
of powder-coated steel. Due to the internal cable routing, it offers a clean and elegant
solution, both indoors and outdoors. In addition, the bracket has two safety lugs to
secure the mounted speakers. The bracket is available in black (LDDQORCB) and white
(LDDQORCBW). The mounting holes in the support plates are compatible with the wall
brackets CURV500 WMB(W), LDSATWMB10(W/B) and SUWMB10(W/B).
SAFETY INFORMATION
1. Please read these instructions carefully before you start installation and assembly.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Only use the accessories in the manner intended.
DANGER: KEEP AWAY FROM CHILDREN! THE PRODUCT CONTAINS SMALL PARTS THAT CAN BE
SWALLOWED AND PACKAGING MATERIAL THAT CAN BE SWALLOWED! PLASTIC BAGS MUST BE
KEPT OUT OF REACH OF CHILDREN!
PRODUCT INFORMATION
This item is a product-specific accessory intended for use exclusively with LD Systems DQOR
loudspeakers and SATWMB10, SUWMB10 and CURV500WMB wall mounts. These installation
instructions do not replace the operating instructions for the associated product. Always read
the corresponding instruction manual first. These accessories do not affect the intended use
of the associated product. Observe the safety instructions from the operating manual of the
associated product! The technical data specified in the operating technical data may change
in connection with this accessory.
FEATURES
•
Mounting bracket for up to four DQOR Loudspeakers
•
Optimal for a full 360° sound coverage
•
Designed for ceiling and floor mounting
•
Pole allows internal cable routing
•
Compatible with DQOR wall mount as well as CURV500 WMB,
SAT WM10B and SUWMB10(W/B)
•
Typical application examples: Shopping centres, supermarkets, warehouses,
amusement parks and various others.
PACKAGING CONTENT
Remove the product from the packaging and remove all packaging material.
Please check that the delivery is complete and intact and inform your sales partner
immediately after purchase if the delivery is incomplete or damaged.
Included in the packaging content of LDDQORCB(W) are:
•
1 x cluster mount bracket DQOR CB, black (white)
•
Assembly instructions
MANUFACTURER'S DECLARATIONS
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu Anspach
E-Mail Info@adamhall.com / +49 (0)6081 / 9419-0.
Our current warranty conditions and limitation of liability can be found at:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf
In case of service, please contact your sales partner.
DISPOSAL
Packaging:
1. Packaging can be fed into the recycling system via the usual disposal channels.
2. Please separate the packaging according to the disposal laws and recycling
regulations in your country.
Product:
Dispose of the product in accordance with the disposal regulations in force in your country.
Misprints and errors, as well as technical or other changes are reserved!
ASSEMBLY
No installation material, such as screws, nuts and washers, is included in the scope of
delivery of the bracket. Use only suitable mounting material for all connections.
DANGER: Overhead installation requires extensive experience, including
calculation of working load limits, installation materials used, and regular
safety checks of all installation materials and equipment. If you do not have
these qualifications, do not attempt to perform an installation yourself, but use the help of
professional companies. There is a risk that equipment that is not properly installed and
secured will come loose and fall. This can cause serious injury or death to persons.
LD Systems ® is a registered brand of the Adam Hall Group
Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany | Phone: +49 6081 9419-0 | adamhall.com

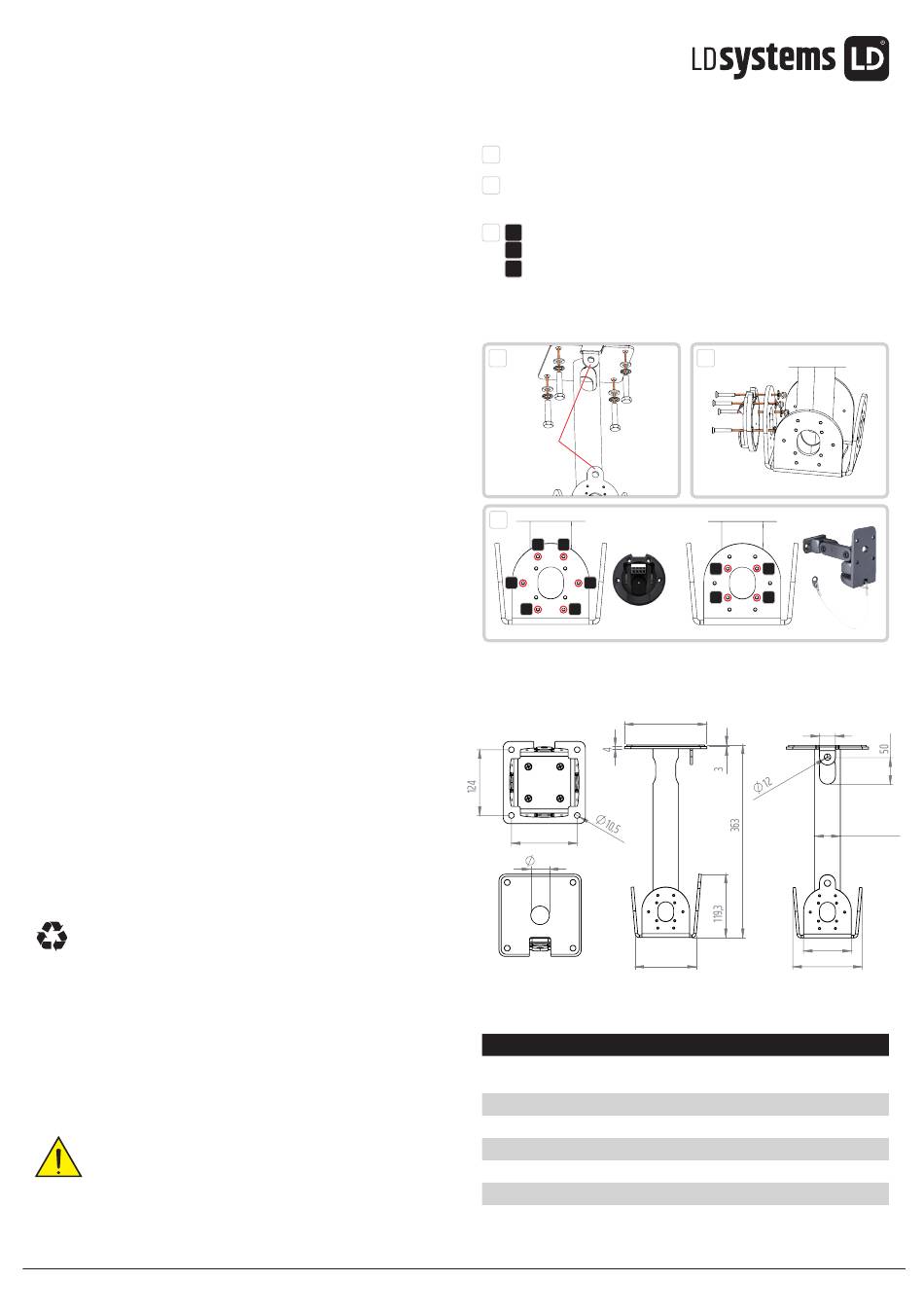

MOUNTING STEPS
1 Screw the bracket to a ceiling (or floor) with sufficient
load-bearing capacity at a suitable location.
2 Screw the DQOR mounting plate (or SATWMB10, SUWMB10 or CURV500WMB)
to the desired support plate of the bracket. The screw holes have an M4 thread.
Tighten the screws using lock nuts and suitable washers.
3 A
Mounting holes for DQOR wall bracket for ceiling mounting,
B
Additional mounting holes for DQOR wall bracket for floor mounting
C
Mounting holes for CURV500 WMB(W), LDSATWMB10(W/B), SUWMB10(W/B)
When mounting wall brackets and loudspeakers, pay attention to the total load
capacity of the DQORCB and the load capacity per support plate!
1
Safetylug
3
A A
A A
B B
DIMENSIONS
124
35
115,4
SPECIFICATIONS
Model name: LDDQORCB(W)
Product type: Installation Speaker Accessories for DQOR Series and
CURV500 WMB(W), LDSATWMB10(W/B), SUWMB10(W/B)
Material: Powder coated steel
Colour: Schwarz (LDDQORCB), Weiß (LDDQORCBW)
Max. total load: 50 kg (centered)
Max. load per carrier plate: 12 kg
Dimensions (W/H/D): 155 mm / 363 mm / 155 mm
Weight 2.9 kg
2
C C
C C
155
30
90
130,7
48,3
