5. Assembling the low cabinet

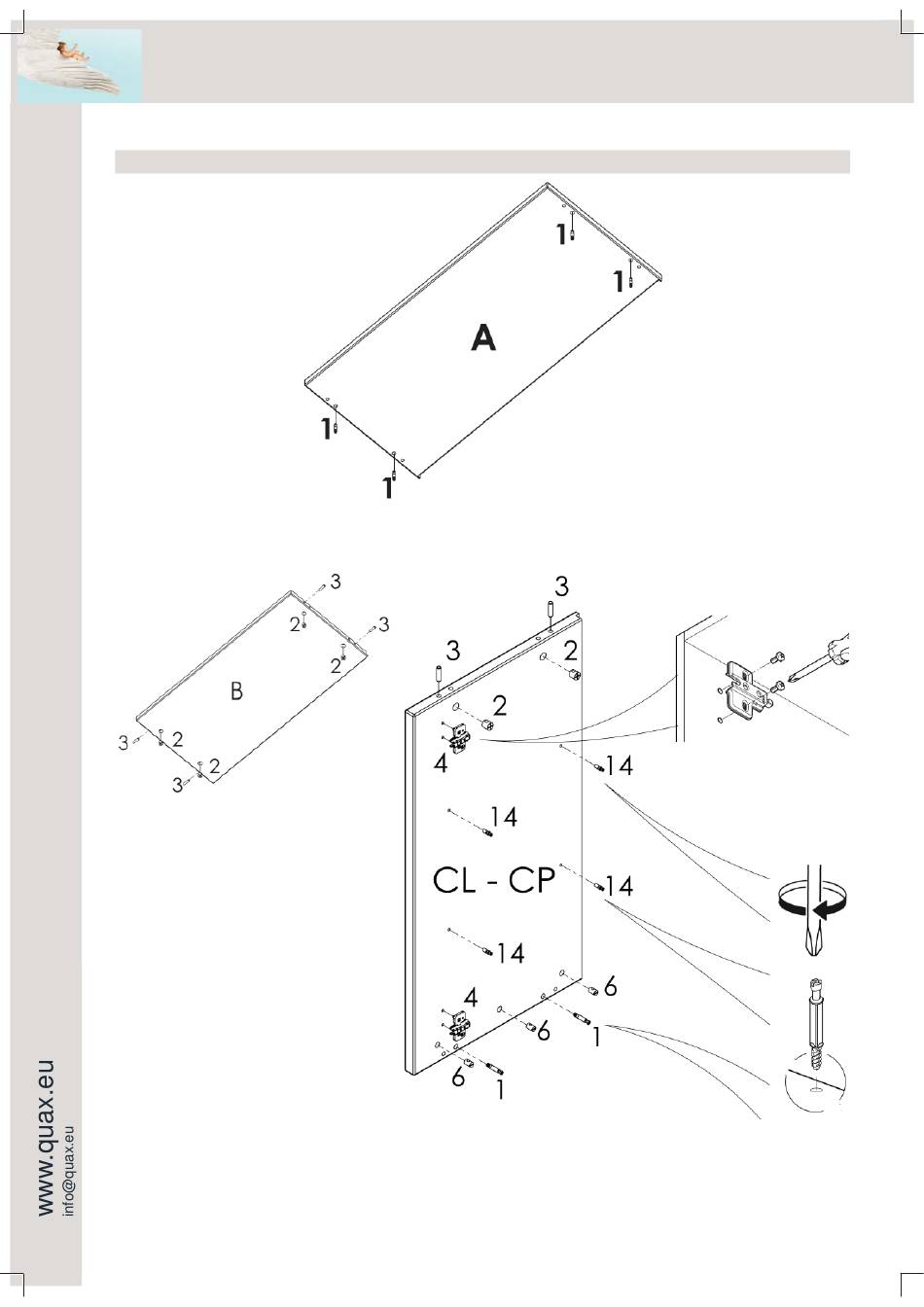

Step 1 : Use the top A and four connectors 1
Tighten the connectors (1) in the provided openings underneath the top (A).
Step 2 : Use the bottom B, four wooden
dowels 3 and four eccentrics 2
Push two wooden dowels (3) in the pro-
vided openings on the sides of the bottom
(B). Insert four eccentrics (2) in the pro-
vided openings underneath the bottom.
Step 3 : Use both end sides CL and CP,
four connectors 1, eight shelfsupports 14,
four wooden dowels 3, four eccentrics 2,
six cylindrical nuts 6 and four mounting
plates 4
Push the wooden dowels (3) in the provided openings at the edges of the end sides (CL and CP). Insert the ec-
centrics (2) in the provided openings at the upperside of the end sides. Fix the connectors (1) in the drillings at
the bottom of the sides. Fix the shelfsupports (14) in the drillings in the middle of the sides. Push the cylindrical
nuts (6) in the holes at the bottom of the sides. Tighten the mounting plates (4) with their provided screws in the
drillings in front of the sides.
