Status displays

The LEDs on the front panels of the computer module or the user module enable
you to control the operating status at all times.

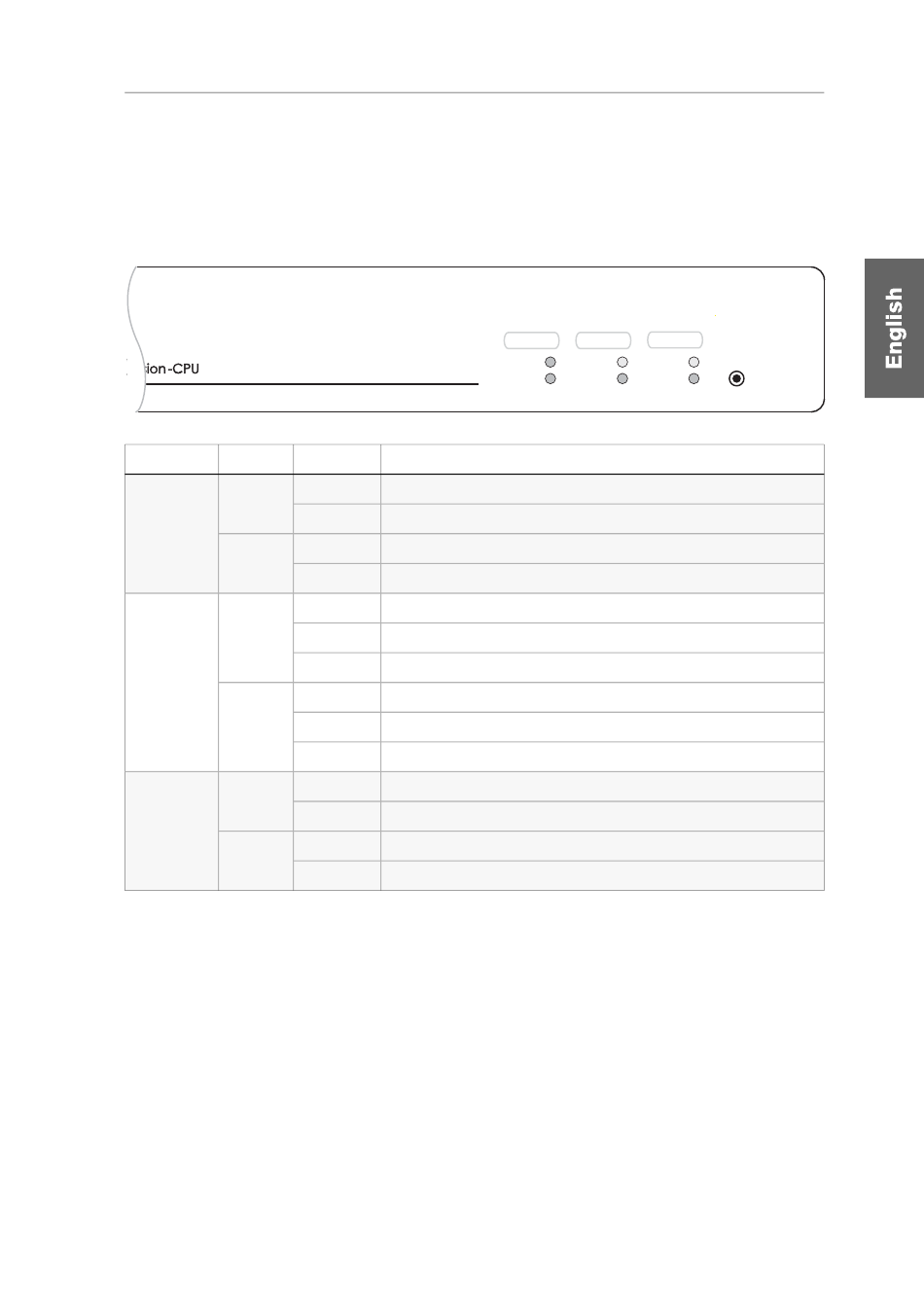

Status displays at the computer module (CATVision-CPU)

Range LED
Power Red.
Main
Local Active
Status
CPU Active
Status
Status Meaning
on power pack connected, necessary voltage supplied
off no power pack connected or no connection to mains
on power pack switched on, necessary voltage supplied
off power pack switched off or no connection to mains
on local console active
off remote console active
blinking no local console keyboard found
on device ready for operation
off no voltage at PS/2 interface and USB bus
blinking defective internal communication
on computer is operated by local and remote console
off computer is not accessed by a console
on keyboard and mouse emulation ok
off keyboard and mouse emulation defective
CPU
Power Local
Red. Active Active
Main Status Status
