Application
BMW
1-Series (E81, E82, E87) 2004 - 2013
5-Series (E60, E61) 2004 - 2010
7-Series (E6* Variants) 2001 - 2008
X1 (E84) 2009 - 2015
Citroen
Berlingo 2008 - 2018
C3-Pluriel (H) 2005 - 2016
C5 (1DC/DE) 2005 - 2008
Jumpy 2007 - 2017
Land Rover
Freelander (II) 2006 - 2014
Peugeot
207 2006 - 2012
308 2007 - 2013
607 2005 - 2012
Expert (G9/X) 2007 - 2016

Prior to Installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of
moisture and away from heat sources. Please ensure that the correct tools are used during the install to avoid any damage to
the vehicle or product. Connects2 can not be held responsible for the installation of this product
Installation guide
Before installation, make sure that the head unit is disconnected from
the power source

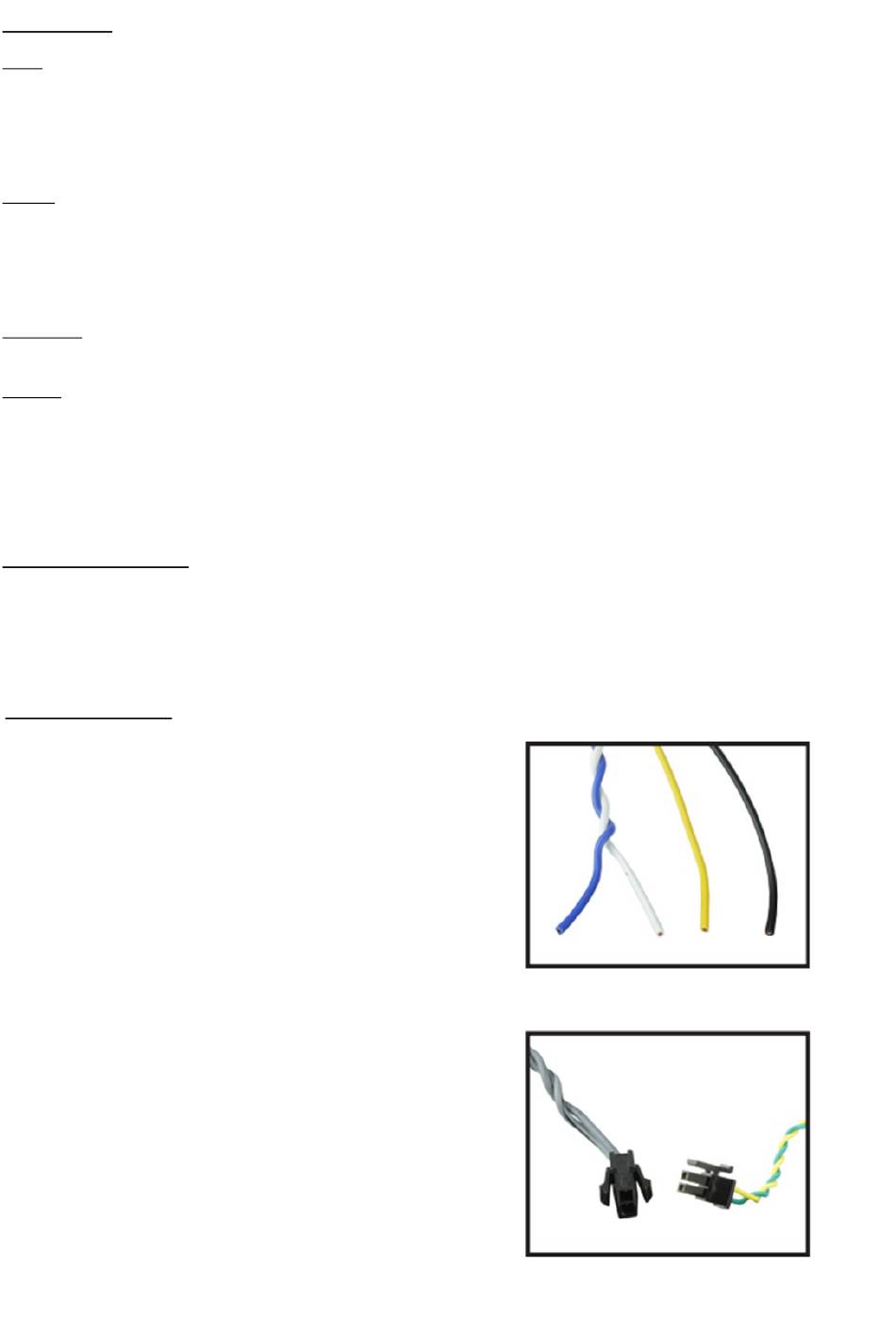

1. Connect the 14-pin molex connector to the 66052 interface. Then
attach the following wires to the rear of the block connector (see
following page for more detail)
Colour
Yellow
Blue
White
Black
2. Connect the 2-pin molex connector from the 66052 harness
and attach this to the provided chime box. Once this is connected,
along with the wiring, connect the head unit to the power source.
3-Series (E90, E91, E92) 2006 - 2013
6-Series (E36, E64) 2004 - 2010
Mini 2006 - 2013
Z4 (E89) 2009 - 2016
C2 (J) 2005 - 2009
C4 (L) 2004 - 2010
C8 2005 - 2014
208 2012 - 2013
3008 2009 - 2013
5008 2009 - 2013
Partner 2008 - 2013
Function
12V Permanent Source
CAN High
CAN Low
Ground
C3-Picasso 2009 - 2017
C4-Picasso 2006 - 2018
DS3 2009 - 2016
307 2005 – 2008
407 2004 - 2010
807 2005 - 2014
RCZ 2010 – 2013
