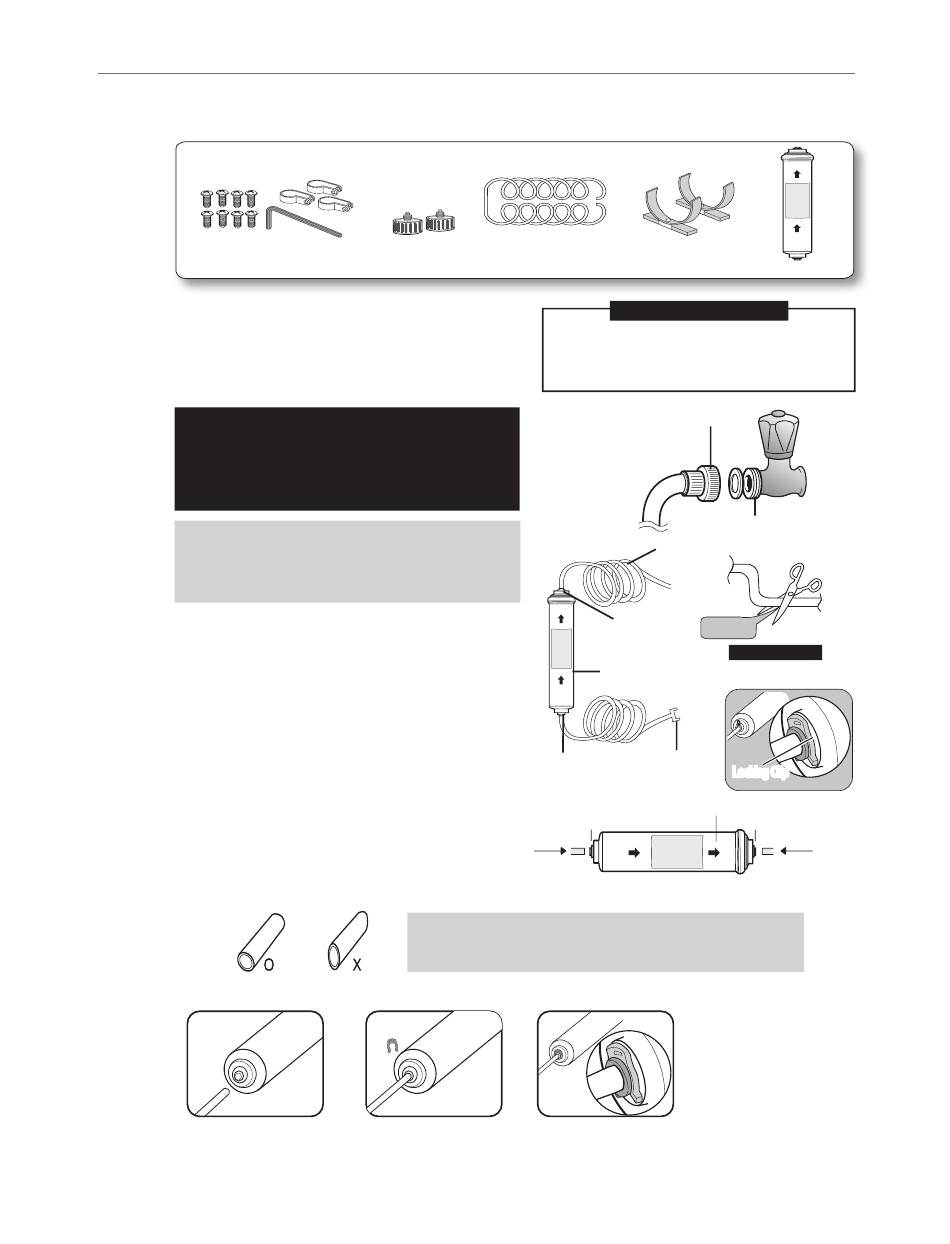

instaLLing tHE watEr DisPEnsEr LinE
For Exterior model
Parts for water line Installation
Water line fixer and
screws
Connecting to the water supply line
Connect the water pipe with coupler and tap.
1. Close the main water tap.
2. Connect coupler "A" to the tap.
WARRANTY INFORMATION
This water line installation is not covered by the
refrigerator or ice maker manufacturer's warranty.
Follow these instructions carefully to minimise the risk of
expensive water damage.
Note:
If the coupler does not fit on the current tap, go
the nearest authorised service dealer and purchase the
right couplers fittings.
select the location where the purifier is
to install. (Model with the purifier)
- If you wish to reassemble the water inlet
and outlet sides of the purifier during purifier
installation, see the reference illustration.
- Cut the water line attached to the purifier to the
appropriate place after measuring the distance
between the purifier and the cold water tap.

Replacement Instructions

1. Shut off water supply.
2. Note the Flow direction on the filter.
3. Insert water supply tube into the inlet side of the filter until the tube stop.
4. After inserting tube, put together the clip strongly. The Clip fix the tube.
5. Turn on the water and check for leaks. If leaks occur, repeat step 1,2,3,4. If leaks persist,
discontinue use and call your supporting dealer.
6. Flush filter for 5 minutes before use.
20_
setting up
All manuals and user guides at all-guides.com
pipe
connector
WATER SUPPLY
INLET SIDE
Note :
Y ou must also ensure that the cut is square and not at
any sort of angle as this could cause a leak
Water line
purifier lock-clip
CAUTION
The water line must be connected to the cold
water pipe. If it is connected to the hot water
pipe, it may cause the purifier to malfunction.
COUPLER "A"
LINE OUTLET
SIDE OF
PURIFIER
PURIFIER WATER
COUPLER
WATER INLET
SIDE OF PURIFIER
FLOW DIRECTION
purifier
TAP
90 degree
CAUTION
Insert Locking Clip After
tube seated
Locking Clip
PERMEAT
