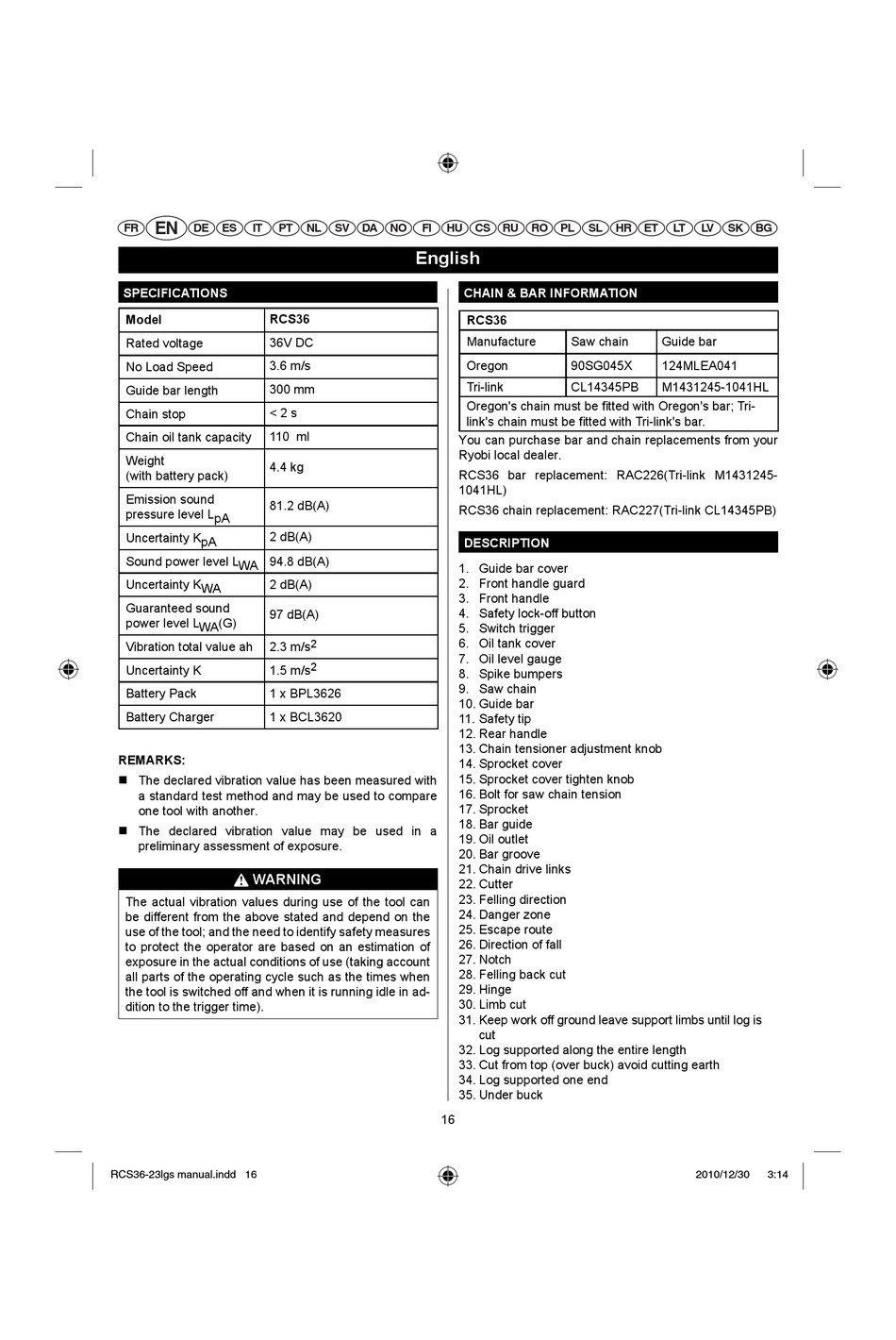

SPECIFICATIONS
RCS36
Model
36V DC
Rated voltage
3.6 m/s
No Load Speed
300 mm
Guide bar length
< 2 s
Chain stop
110 ml
Chain oil tank capacity
Weight
4.4 kg
(with battery pack)
Emission sound
81.2 dB(A)
pressure level L pA
2 dB(A)
Uncertainty K pA
Sound power level L WA 94.8 dB(A)
Uncertainty K WA 2 dB(A)
Guaranteed sound
97 dB(A)
power level L WA (G)
Vibration total value ah 2.3 m/s
Uncertainty K 1.5 m/s
Battery Pack 1 x BPL3626
Battery Charger 1 x BCL3620
REMARKS:
 The declared vibration value has been measured with
a standard test method and may be used to compare
one tool with another.
 The declared vibration value may be used in a
preliminary assessment of exposure.
WARNING
The actual vibration values during use of the tool can
be different from the above stated and depend on the
use of the tool; and the need to identify safety measures
to protect the operator are based on an estimation of
exposure in the actual conditions of use (taking account
all parts of the operating cycle such as the times when
the tool is switched off and when it is running idle in ad-
dition to the trigger time).
RCS36-23lgs manual.indd 16 RCS36-23lgs manual.indd 16
NL SV DA NO FI HU CS RU
English
CHAIN & BAR INFORMATION
RCS36
Manufacture
Oregon
Tri-link
Oregon's chain must be fi tted with Oregon's bar; Tri-
link's chain must be fi tted with Tri-link's bar.
You can purchase bar and chain replacements from your
Ryobi local dealer.
RCS36 bar replacement: RAC226(Tri-link M1431245-
1041HL)
RCS36 chain replacement: RAC227(Tri-link CL14345PB)
DESCRIPTION
1. Guide bar cover
2. Front handle guard
3. Front handle
4. Safety lock-off button
5. Switch trigger
6. Oil tank cover
2
7. Oil level gauge
2
8. Spike bumpers
9. Saw chain
10. Guide bar
11. Safety tip
12. Rear handle
13. Chain tensioner adjustment knob
14. Sprocket cover
15. Sprocket cover tighten knob
16. Bolt for saw chain tension
17. Sprocket
18. Bar guide
19. Oil outlet
20. Bar groove
21. Chain drive links
22. Cutter
23. Felling direction
24. Danger zone
25. Escape route
26. Direction of fall
27. Notch
28. Felling back cut
29. Hinge
30. Limb cut
31. Keep work off ground leave support limbs until log is
32. Log supported along the entire length
33. Cut from top (over buck) avoid cutting earth
34. Log supported one end
35. Under buck
16
RO PL SL HR ET
Saw chain
90SG045X
CL14345PB
cut
LT LV SK BG
Guide bar
124MLEA041
M1431245-1041HL
