The supply cable must be at the lower end of the heater if the heater is installed
at an angle or vertically.

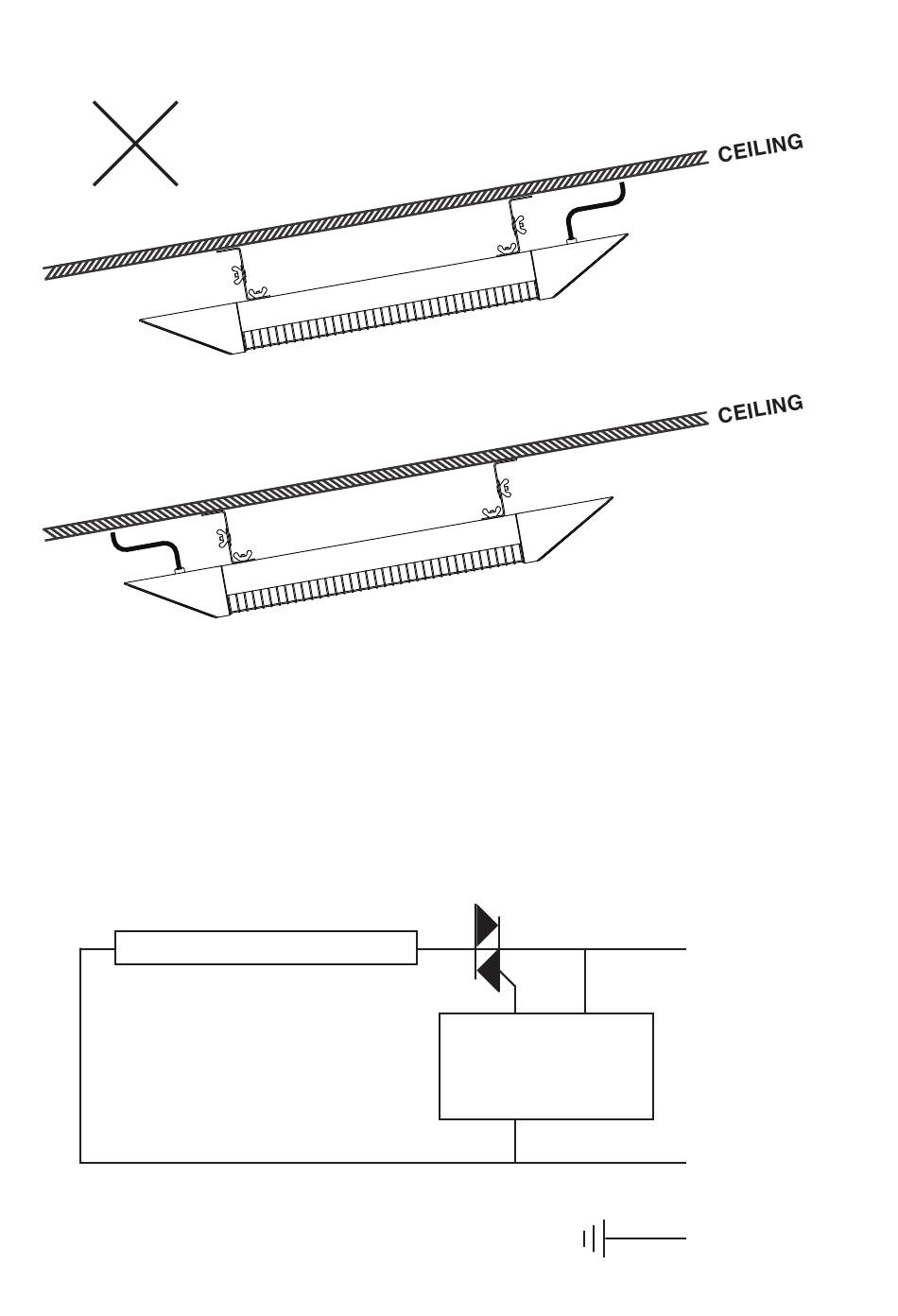

WIRING DIAGRAM

HEATING ELEMENT
INCORRECT INSTALLATION
CORRECT INSTALLATION
9
MAIN BOARD
EN
L
220-240V AC
50/60Hz
N
G
