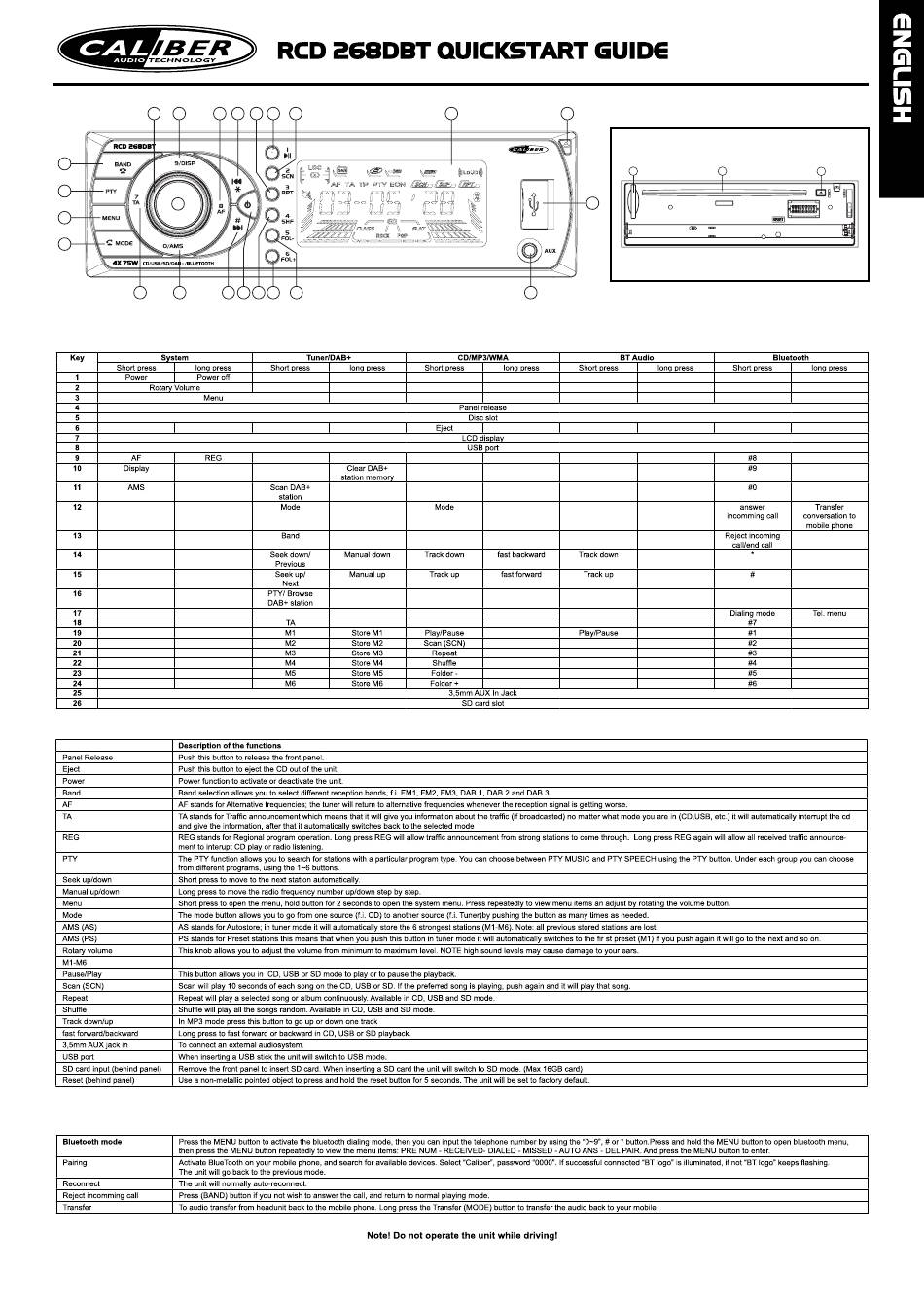

Caliber RCD 268DBT Schnellstartanleitung

2 10 9 14
13
16
3
17
12
18 11 15
Key System
Short press long press
1
Power Power off
2 Rotary Volume
3 Menu
4
5
6
7
26
8
9 AF REG
10
Display
11 AMS
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Description of the functions
Panel Release Push this button to release the front panel.
Eject Push this button to eject the CD out of the unit.
Power Power function to activate or deactivate the unit.
Band Band selection allows you to select different reception bands, f.i. FM1, FM2, FM3, DAB 1, DAB 2 and DAB 3
AF AF stands for Alternative frequencies; the tuner will return to alternative frequencies whenever the reception signal is getting worse.
TA TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (CD,USB, etc.) it will automatically interrupt the cd
and give the information, after that it automatically switches back to the selected mode
REG REG stands for Regional program operation. Long press REG will allow traffic announcement from strong stations to come through. Long press REG again will allow all received traffic announce-
ment to interupt CD play or radio listening.
PTY The PTY function allows you to search for stations with a particular program type. You can choose between PTY MUSIC and PTY SPEECH using the PTY button. Under each group you can choose
from different programs, using the 1~6 buttons.
Seek up/down Short press to move to the next station automatically.
Manual up/down Long press to move the radio frequency number up/down step by step.
Menu Short press to open the menu, hold button for 2 seconds to open the system menu. Press repeatedly to view menu items an adjust by rotating the volume button.
Mode The mode button allows you to go from one source (f.i. CD) to another source (f.i. Tuner)by pushing the button as many times as needed.
AMS (AS) AS stands for Autostore; in tuner mode it will automatically store the 6 strongest stations (M1-M6). Note: all previous stored stations are lost.
AMS (PS) PS stands for Preset stations this means that when you push this button in tuner mode it will automatically switches to the fir st preset (M1) if you push again it will go to the next and so on.
Rotary volume This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.
M1-M6
Pause/Play This button allows you in CD, USB or SD mode to play or to pause the playback.
Scan (SCN) Scan will play 10 seconds of each song on the CD, USB or SD. If the preferred song is playing, push again and it will play that song.
Repeat Repeat will play a selected song or album continuously. Available in CD, USB and SD mode.
Shuffle Shuffle will play all the songs random. Available in CD, USB and SD mode.
Track down/up In MP3 mode press this button to go up or down one track
fast forward/backward Long press to fast forward or backward in CD, USB or SD playback.
3,5mm AUX jack in To connect an external audiosystem.
USB port When inserting a USB stick the unit will switch to USB mode.
SD card input (behind panel) Remove the front panel to insert SD card. When inserting a SD card the unit will switch to SD mode. (Max 16GB card)
Reset (behind panel) Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.
Bluetooth mode Press the MENU button to activate the bluetooth dialing mode, then you can input the telephone number by using the "0~9", # or * button.Press and hold the MENU button to open bluetooth menu,
then press the MENU button repeatedly to view the menu items: PRE NUM - RECEIVED- DIALED - MISSED - AUTO ANS - DEL PAIR. And press the MENU button to enter.
Pairing Activate BlueTooth on your mobile phone, and search for available devices. Select "Caliber", password "0000". If successful connected "BT logo" is illuminated, if not "BT logo" keeps flashing.
The unit will go back to the previous mode.
Reconnect The unit will normally auto-reconnect.
Reject incomming call Press (BAND) button if you not wish to answer the call, and return to normal playing mode.
Transfer To audio transfer from headunit back to the mobile phone. Long press the Transfer (MODE) button to transfer the audio back to your mobile.
21 19 20
1 22 24 24
Tuner/DAB+
Short press long press
5
Clear DAB+
station memory
Scan DAB+
station
Mode
Band
Seek down/ Manual down
Previous
Seek up/ Manual up
Next
PTY/ Browse
DAB+ station
TA
M1 Store M1
M2 Store M2
M3 Store M3
M4 Store M4
M5 Store M5
M6 Store M6
17
12
7 4
8
25
CD/MP3/WMA
Short press long press Short press
Panel release
Disc slot
Eject
LCD display
6
USB port
Mode
Track down fast backward Track down
Track up fast forward Track up
Play/Pause Play/Pause
Scan (SCN)
Repeat
Shuffle
Folder -
Folder +
3,5mm AUX In Jack
SD card slot
3
18 11 15 1 22 24 24
26 5
BT Audio Bluetooth
long press Short press
#8
#9
#0
answer
incomming call
Reject incoming
call/end call
*
#
Dialing mode
#7
#1
#2
#3
#4
#5
#6
25
6
long press
Transfer
conversation to
mobile phone
Tel. menu
