IBIZA LIGHT LAS140RG-3D Bedienungsanleitung

IBIZA LIGHT LAS140RG-3D Bedienungsanleitung

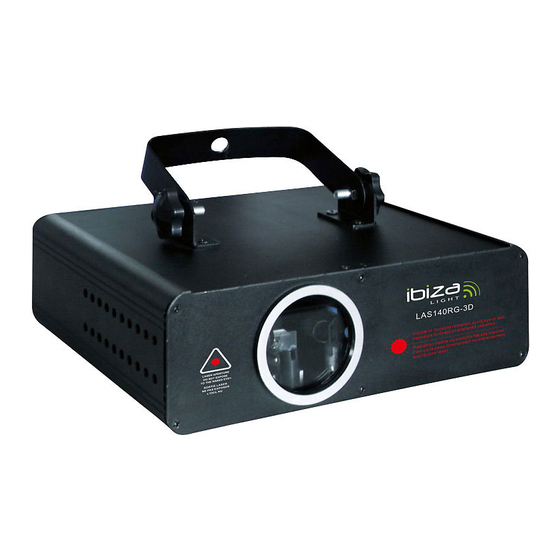

Dmx laser light 100mw red +40mw green

Werbung

Verfügbare Sprachen
  • DE

Verfügbare Sprachen

  • DEUTSCH, seite 6
D
M
X
L
A
D
M
X
L
A
1
0
0
m
W
R
E
D
1
0
0
m
W
R
E
D
LAS140RG-3D (15-1166)
GB - INSTRUCTION MANUAL
Please read this instruction manual before use
Please check when open the package
In order to use this product safety and correctly, please read this manual
carefully before using and follow this manual strictly to operate it. When you
receive this product, please take it carefully and check whether it has any
problem caused by transportation.
And also check the parts as follows:
 Laser light: 1 pc
 Power cable: 1 pc
 Instruction manual: 1 Ppc
INSTALLATION
Please make sure the voltage you are using complies with the marking
o
on the product before installation.
It must be installed by a specialist, fixed safely and adjusted to suitable
o
radiation angle.
Please make sure there isn't any flammable and volatile object such as
o
ornament etc. at the range of 0.5m when installing. The distance
between lighting and wall must be at least 15cm
Please make sure there isn't anything to obstruct the ventilation funs
o
and exhaust pipe.
Based on safety reason, please use a safety rope that can support 10
o
times the weight of the unit.
This product is for permanent installation.
o
For safety reasons, The unit must be earthed.
o
NOTE
 Please follow all instructions included in this manual. Don't open the
unit yourself. This product should be repaired by specialist if have any
problem.
 Please keep this product in dry air. Don't use it under rainy or wet or
dusty conditions.
©Copyright LOTRONIC 2012
S
E
R
L
I
G
H
T
S
E
R
L
I
G
H
T
+
4
0
m
W
G
R
E
E
N
+
4
0
m
W
G
R
E
E
N
 Fixed installation: Prevent this product from strong vibrations or impact.
Don't use it under shaking conditions.
 Ensure that no objects can enter the housing.
 Please make sure the exhaust channel is free during operation
 Please make sure that the plug is connected safely to the socket before
you turn on the power.
 Don't turn on or off this lighting frequently because it will shorten the life
time of the laser. Don't operate the laser for an extended period of time.
 The unit contains a semiconductor laser that needs to be turned off for
15 minutes after two hours of operation.
 Don't use any telescope to observe laser because it will become
dangerous.
 Don't touch the unit and pull the power cable powerfully with wet hands.
 The distance between lighting and objects is at least 1m.
 There aren't any parts for user to repair in this product. Don't open it.
 When the brightness of semiconductor laser becomes darker or shows
any other malfunction, please contact the dealer immediately.
 It is recommended to transport the unit in its original packaging to
prevent damages during transport.
WARNING
Please make sure the power has been cut off when do any installation and
repair.
This lighting laser danger rating is Class III B. It is dangerous to look into
the light beam. The minimum irradiated distance is 13CM and the longest
irradiated time is below 10 seconds.
Please make sure the distance between lighting and flammable objects is
at least 0.5m.
MAINTENANCE
Please clean the unit regularly. Use a cotton stick dipped into alcohol to
clean the glass to optimize light output. Don't use wet clothes or other
chemical solvents to clean glass. The cleaning frequency should be based
on the operation frequency and environmental circumstances. We suggest
cleaning it every 20 days.
Please use clean towel to wipe the surface of metal case, check and clean
the exhaust channel regularly.
SPECIFICATIONS
1. Laser type: Using full solid semiconductor laser. red laser wave length
650nm and green laser wave length 532nm.
2. Power supply: 110/220V, 50/60Hz
3. Laser power: 650nm-100mW; 532nm-40mW
4. Channels: 10channels
5. Control:DMX512 standard signal
6. Mode: Auto motion picture, single picture, beam controlled by sound,
lighting shelter.
LAS140RG-3D
1
