1. INTRODUCTION.
This Instruction sheet describes
termination procedures for AMP-
NETCONNECT* Category 6 DIN
Telecommunications Outlet: AMP-
TWIST*-6S Planar, 1 Port.
The connector accepts four twisted-
pair with conductor range from
nominal ∅ 0.50mm. to 0.65mm.
(From
24
to
22
AWG
conductors). The acceptable wire
insulation range is from ∅ 0.8mm. to
1.6mm. with cable jacket outer
diameter from 5 mm. to 10 mm.
National
and
local
(grounding)
bonding
regulations and procedures shall be
followed.
For other specific cable please
contact
your
local
NETCONNECT sales office.
For further information please see
the appropriate customer drawing.
2.
PRODUCT DESCRIPTION / PRODUKT BESCHREIBUNG.
Table 1 / Tabelle 1
PN
1711088-1
2-1711088-1
5-1711088-1
©2008 Tyco Electronics AMP España, S.A., Barcelona, (Spain)
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PN= Part Number; (#) LSA + is trade mark of Krone AG.
AMP NETCONNECT
AMP-TWIST-6S Planar, 1 Port
1
1 1
FACEPLATE KIT
FACEPLATE KIT
solid
GROUNDING KIT
GROUNDING KIT
earthing
and
EMC

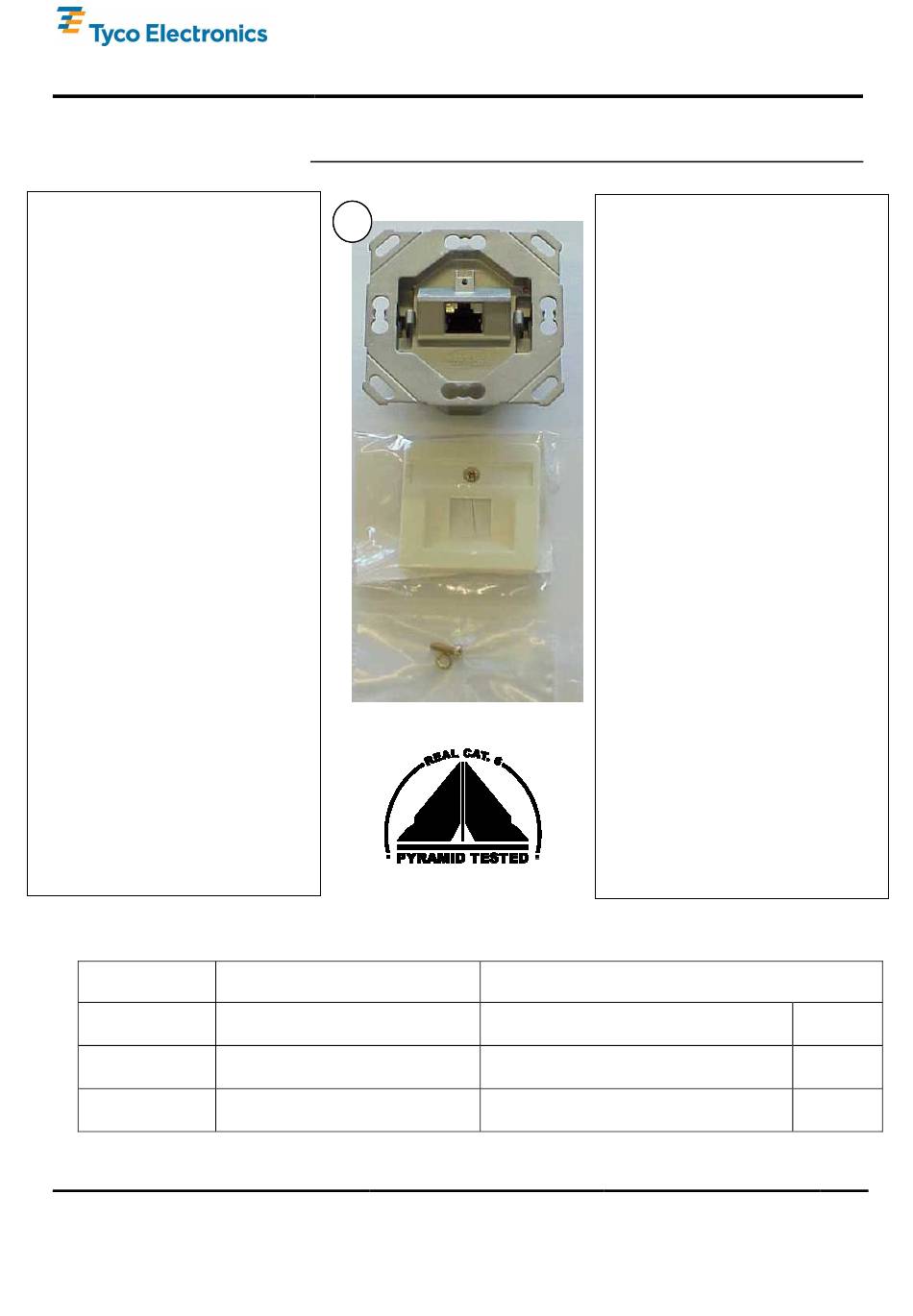

Figure 1 /Abbildung 1
AMP
Description / Beschreibung
AMP-TWIST-6S Planar, 1 Port
AMP-TWIST-6S Planar, 1 Port
AMP-TWIST-6S Planar, 1 Port
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
(*)
DIN OUTLET:
DIN OUTLET
DIN OUTLET
Faceplate Kit / Zentralplatte
Almond colour/ Perlweiss
White colour/ Reinweiss
Not included / Nicht im Lieferumfang
Instruction Sheet
411-93006
11/Feb/2008 Rev. A1
DEUTSCH
1.
EINFÜHRUNG.
Diese Spezifikation beschreibt die
Vorgaben an die Verarbeitung und
das Anschließen von Kabeln an das
AMP NETCONNECT Kategorie 6
DIN
Telecommunications
AMP- TWIST*-6S Planar, 1 Port.
Es dürfen 4-paarige Twisted-Pair-
Kabel mit einem Außen-
10mm, einem Drahtisolations-
0.8-1.6mm und einem Draht-
0.50-0.65mm (Massivleiter von AWG
24 – 22) verarbeitet werden.
Nationale
/
Erdungsrichtlinien
Regularien und -Prozeduren müssen
beachtet werden.
Weitere Informationen oder die
entsprechende
Kundenzeichnung
fordern Sie bitte bei Ihrem lokalen
AMP NETCONNECT Verkaufsbüro
an.
enthalten
This controlled document us subject to change.
For latest revision and Regional Customer
Service,
Visit our website at www.tycoelectronics.com
Outlet:
∅
von 5-
∅
von
∅
von
örtliche
und
EMV-
RAL
1013
RAL
9010
---
1 of 4
LOC IK
