Installation Manual

The ARD-AYH12 is a RFID proximity card reader to be installed
for use with access control systems.
This installation manual contains the following information:
–

Mounting Instructions

– Wiring Instructions
– Operation Instructions
– Technical Specifications
MOUNTING INSTRUCTIONS

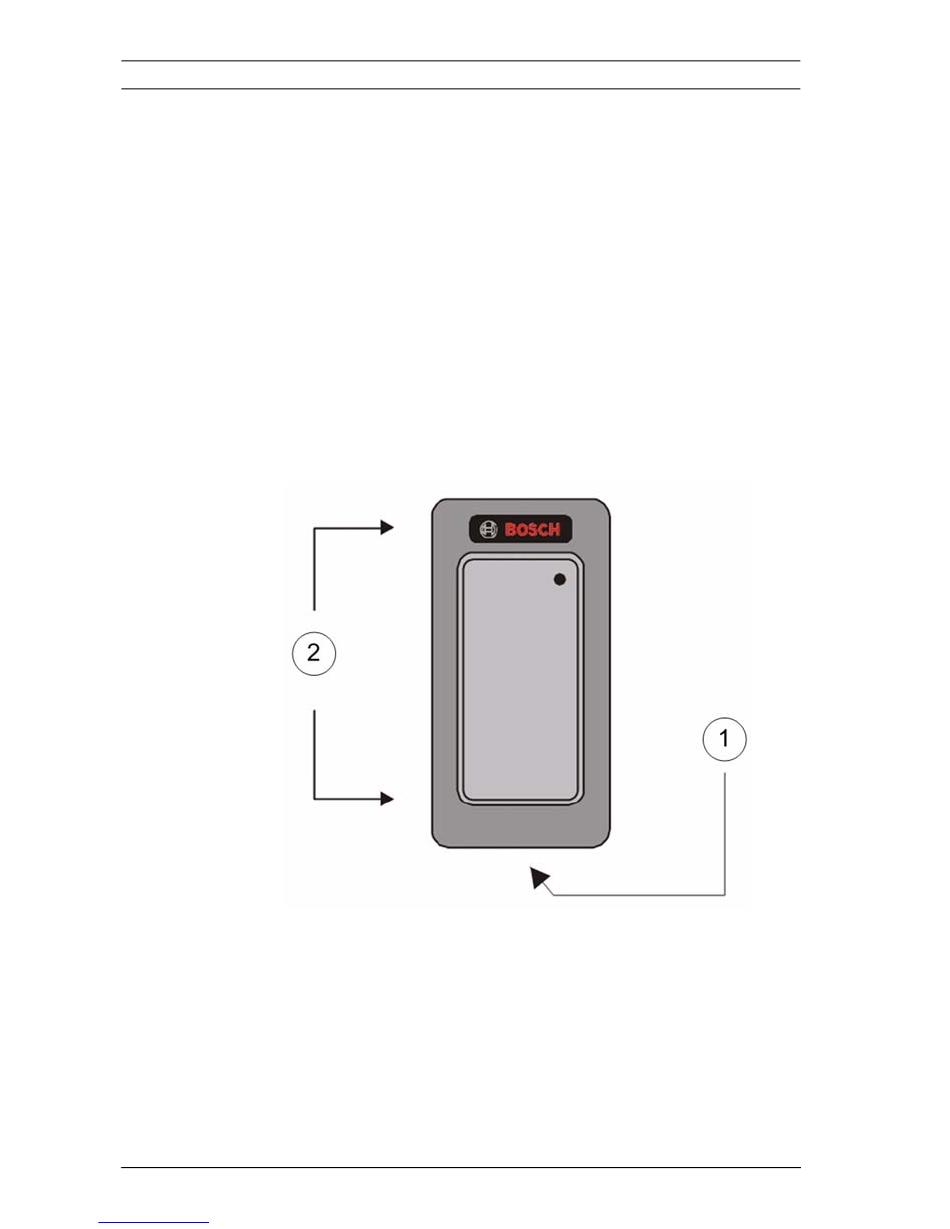

1 = To remove the top cover you need to unscrew the top
cover screw located on the bottom of the reader.
2 = Remove the top cover to reveal the screw holes for
mounting.
Mount the reader with the appropriate screws (not supplied) as
indicated on the template.
To mount the reader, perform the following:
