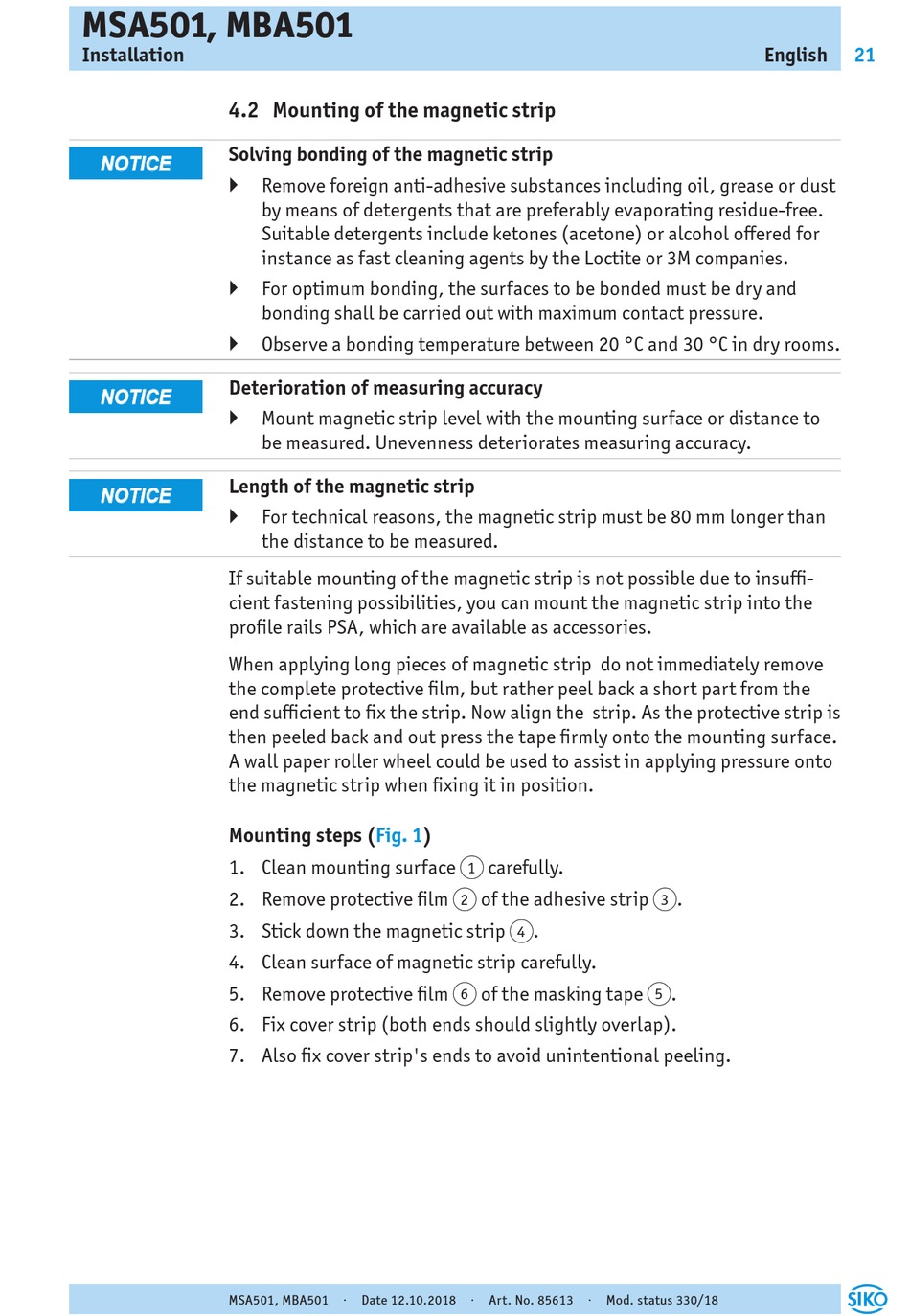

Mounting Of The Magnetic Strip - Siko MSA501 Originalmontageanleitung

MSA501, MBA501
Installation

4.2 Mounting of the magnetic strip

Solving bonding of the magnetic strip
NOTICE
` Remove foreign anti-adhesive substances including oil, grease or dust
` For optimum bonding, the surfaces to be bonded must be dry and
` Observe a bonding temperature between 20 °C and 30 °C in dry rooms.
Deterioration of measuring accuracy
NOTICE
` Mount magnetic strip level with the mounting surface or distance to
Length of the magnetic strip
NOTICE
` For technical reasons, the magnetic strip must be 80 mm longer than
If suitable mounting of the magnetic strip is not possible due to insuffi-
cient fastening possibilities, you can mount the magnetic strip into the
profile rails PSA, which are available as accessories.
When applying long pieces of magnetic strip do not immediately remove
the complete protective film, but rather peel back a short part from the
end sufficient to fix the strip. Now align the strip. As the protective strip is
then peeled back and out press the tape firmly onto the mounting surface.
A wall paper roller wheel could be used to assist in applying pressure onto
the magnetic strip when fixing it in position.
Mounting steps
1. Clean mounting surface
2. Remove protective film
3. Stick down the magnetic strip
4. Clean surface of magnetic strip carefully.
5. Remove protective film
6. Fix cover strip (both ends should slightly overlap).
7. Also fix cover strip's ends to avoid unintentional peeling.
MSA501, MBA501 · Date 12.10.2018 · Art. No. 85613 · Mod. status 330/18
by means of detergents that are preferably evaporating residue-free.
Suitable detergents include ketones (acetone) or alcohol offered for
instance as fast cleaning agents by the Loctite or 3M companies.
bonding shall be carried out with maximum contact pressure.
be measured. Unevenness deteriorates measuring accuracy.
the distance to be measured.
(Fig. 1)
carefully.
1
of the adhesive strip
2
.
4
of the masking tape
6
English
.
3
.
5
