3. Installation of the RKRTR

You can mount the RKRTR thermostat on the wall or use it as
table-top model.
3.1.
The RKRTR thermostat can be wall-mounted, with supplied
screws and plugs. Refer to figure 1.
This is the case when you want to install the optional EKRTETS
as external temperature sensor.
1
2
3
4
5
RKRTR + EKRTETS
Room thermostat
4PW56107-1
Downloaded from www.Manualslib.com

Wall-mounted installation

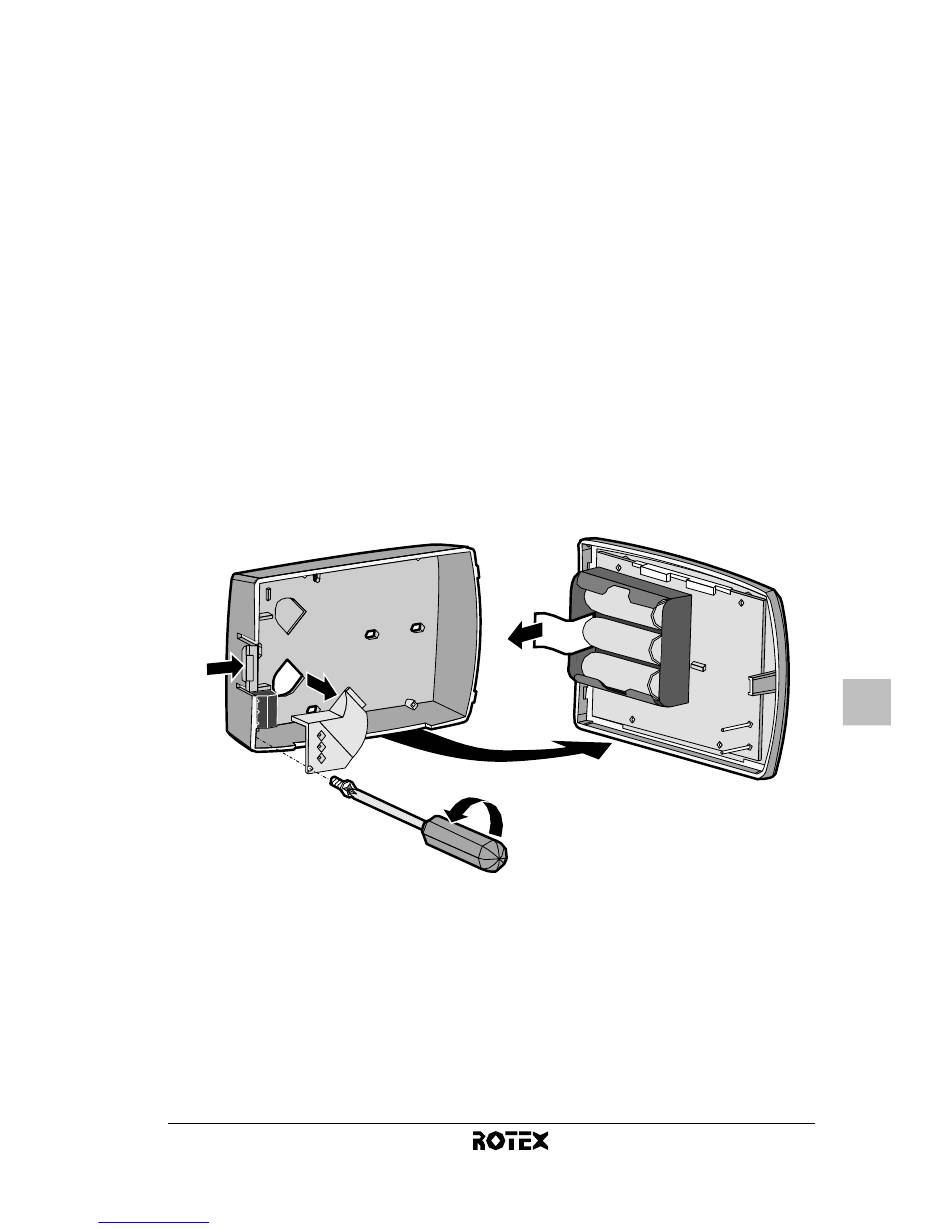

At the left of the thermostat, gently push the lid.
Remove the front cover by pulling it towards you.
Optionally for the EKRTETS, unscrew the screw of the cable
holder in the bottom left corner of the back part of the
thermostat and remove the transparent cable protection.
Remove the battery insulator.
1
3 3
Drill holes in the wall taking the dimensions of the thermostat
into account and insert the supplied plugs in the holes.
Refer to figure 4 (unit of measurement: mm).
manuals search engine
4
2
3
Installation manual
