Error signals

Whenever the TOF-Watch detects an error the stimulation is suspended and the user is alerted
by two short attention beeps followed by one of the following error symbols (Internal error and
Battery empty one long beep however):
+
9

Accessories

18 | TOF-Watch Operator manual 33.500/B
Downloaded from www.Manualslib.com

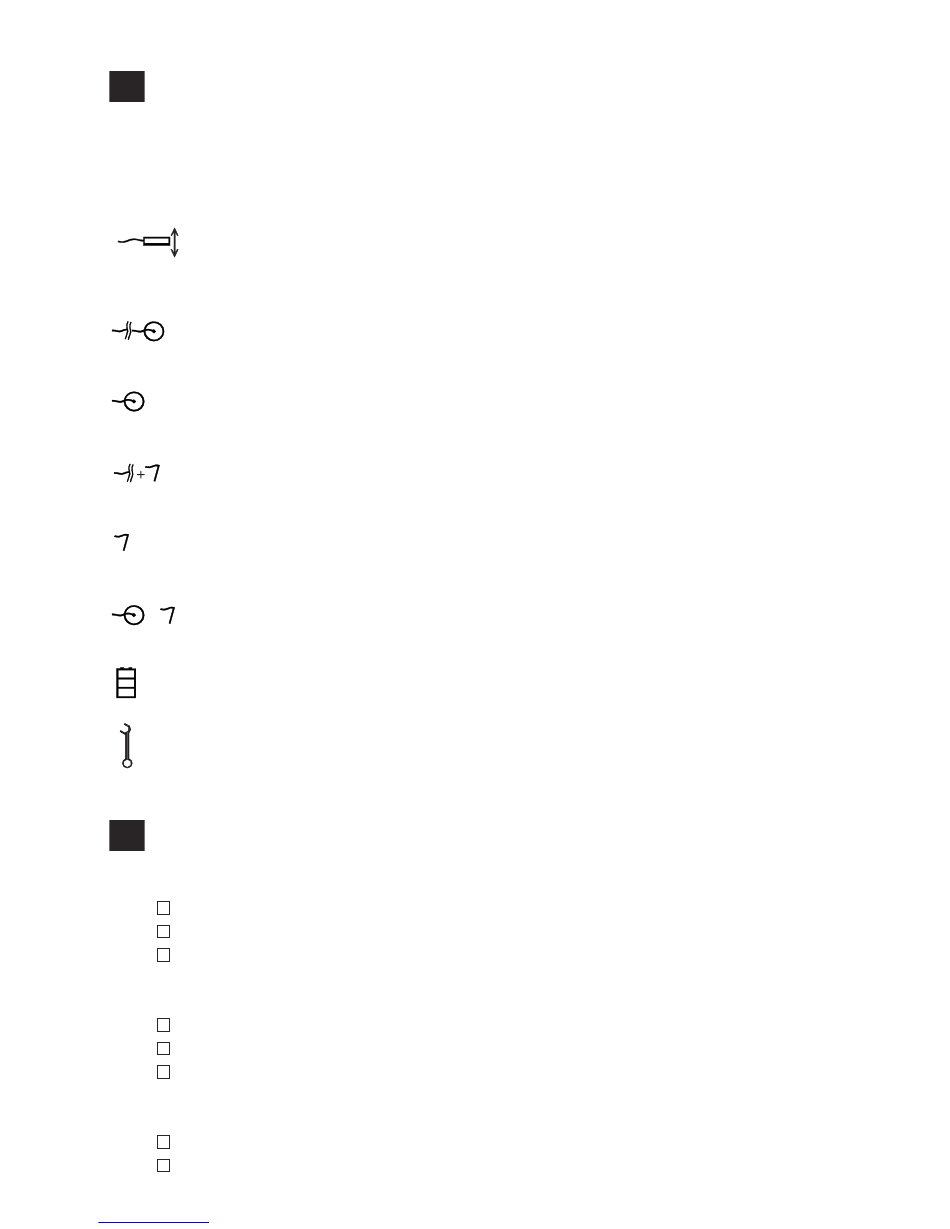

Flashing acceleration transducer symbol (11)
Normal mode: Acceleration transducer has been removed.
Calibration mode: Unstable or too low acceleration transducer signal.
Flashing bad surface electrode connection symbol (12)
All modes: Missing or bad electrode connection.
Flashing surface electrode symbol (12)
All modes: Skin resistance too high.
Flashing bad needle electrode connection symbol (13)
All modes: Missing or bad electrode connection.
Flashing needle electrode symbol (13)
All modes: Skin resistance too high.
Both symbols flashing simultaneously (12) + (13)
All modes: No stimulation cable connected to TOF-Watch
Battery empty symbol (8)
All modes: Battery empty.
Internal error symbol (9)
All modes: Internal error detected.
Standard (Included in TOF-Watch package)
Acceleration transducer with cable 1.5 m.
Stimulation cable for surface electrodes 1.5 m.
Operating manual.
Optional
Clamp for IV-pole mount.
Stimulation cable for a needle electrode 1.5 m (loco-regional anesthesia).
Surface electrodes.
Spare parts
Acceleration transducer with cable 1.5 m.
Stimulation cable for surface electrodes 1.5 m.
