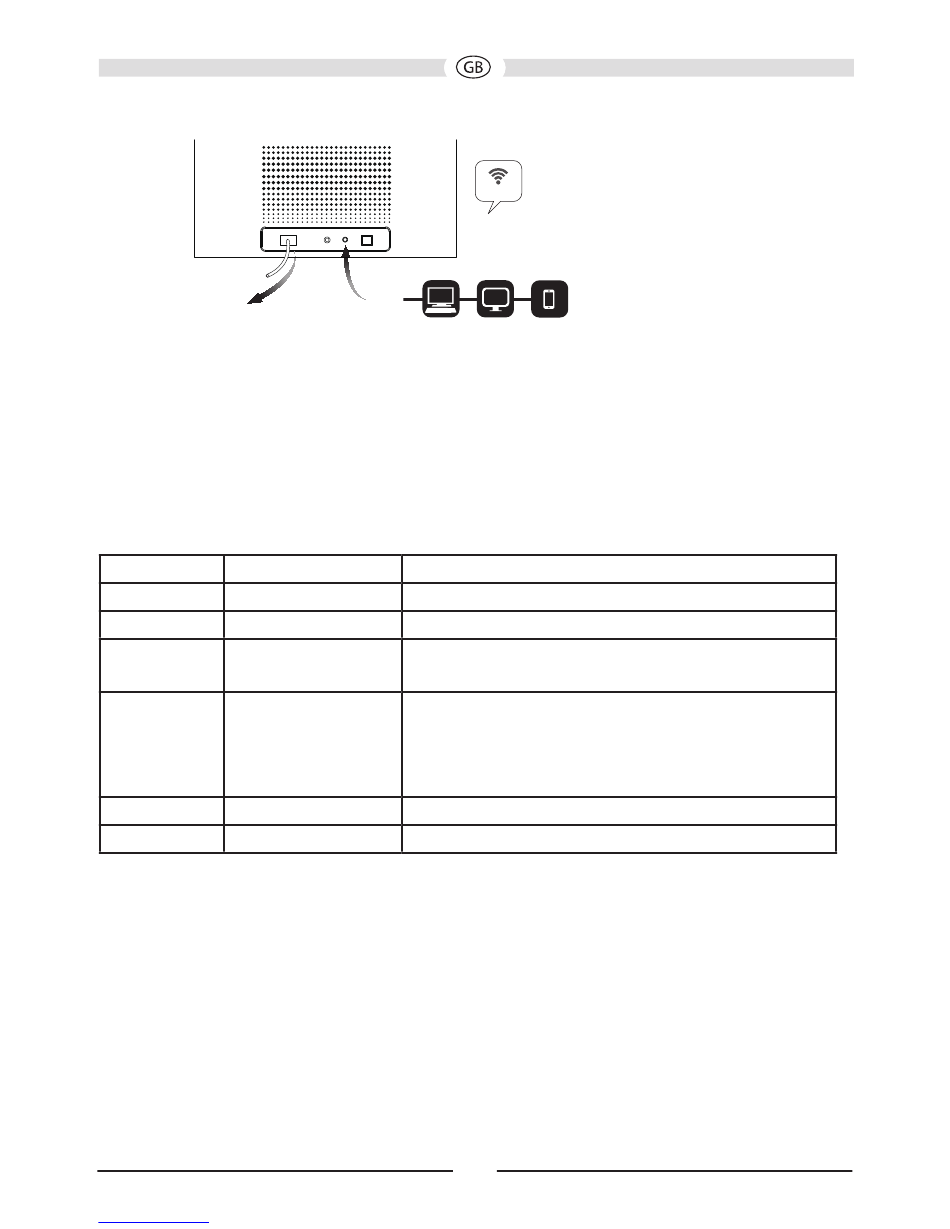

1.2 Rear
•
SET ( RESET/ WPS Mode): Press briefly to activate WPS mode; press and hold for about 5 sec. to
restore the speaker to the factory settings.
•
AC main power adapter: Connect the power adapter to power on the system automatically.
•
AUX-IN: Audio input, 3.5mm stereo socket
•
LAN: Ethernet LAN connection to connect your speaker to a LAN port of a router instead of WLAN
network.
1.3 LED Status
Button/LED
STANDBY
AUX IN
SET
WLAN
VOL -/+
MUTE

2. NETWORK CONFIGURATION

The speaker is connected to the network via WLAN. The WLAN antenna on the speaker receives the
signals from the network router.

3. CONNECTING THE POWER SUPPLY

Please connect the AC Connection cable with your wall AC outlet socket.
Downloaded from www.Manualslib.com
AC IN SET AUX LAN
AUX IN
AC IN
Displa
in Red
Lights up Orange
Flashes Green/Blue
Slowly
Flashes White
Lights up solid White
Flashes
Flashes Slowly
manuals search engine
Wi Fi
Desktop TV MP3/
Smart phone
Status
Standby mode after 15mins w/o any audio signal inputs
Connected via AUX IN
1. Reset to factory default
2. Firmware update
1. Booting process
2. WPS is processing
1. System is ready for WLAN connection
2. AP Mode
volume increase/decrease
Mute
18
