WV58MR
18 Installation
CAUTION
CAUTION
NOTICE
Downloaded from www.Manualslib.com
Forfeiture of guarantee
Improper coupling of the shaft, e. g. by using rigid couplers that exert
excessive force on the bearing of the shaft.
Absolute encoder failure
` When mounting pay attention to the IP type of protection (see chap-
ter 8).
` Do not open the absolute encoder yourself.
` Avoid impact on the device.
` Do not modify the device in any way.
Loss of type of protection
Sealing rings in the ball bearing are wearing parts! Therefore, the type of
protection depends on the service life and condition of the sealing rings.
Mounting the encoder
• Fasten the encoder by means of screws or servo clamps and clamping
of the shaft. Take care to mount the encoder free from distortion.
• No forces must be transferred through the housing. Forces must act
exclusively on the shaft of the instrument.
Shaft 10x20
dim. L 20
dim. ød ø10
dim. A 9
3
4
L

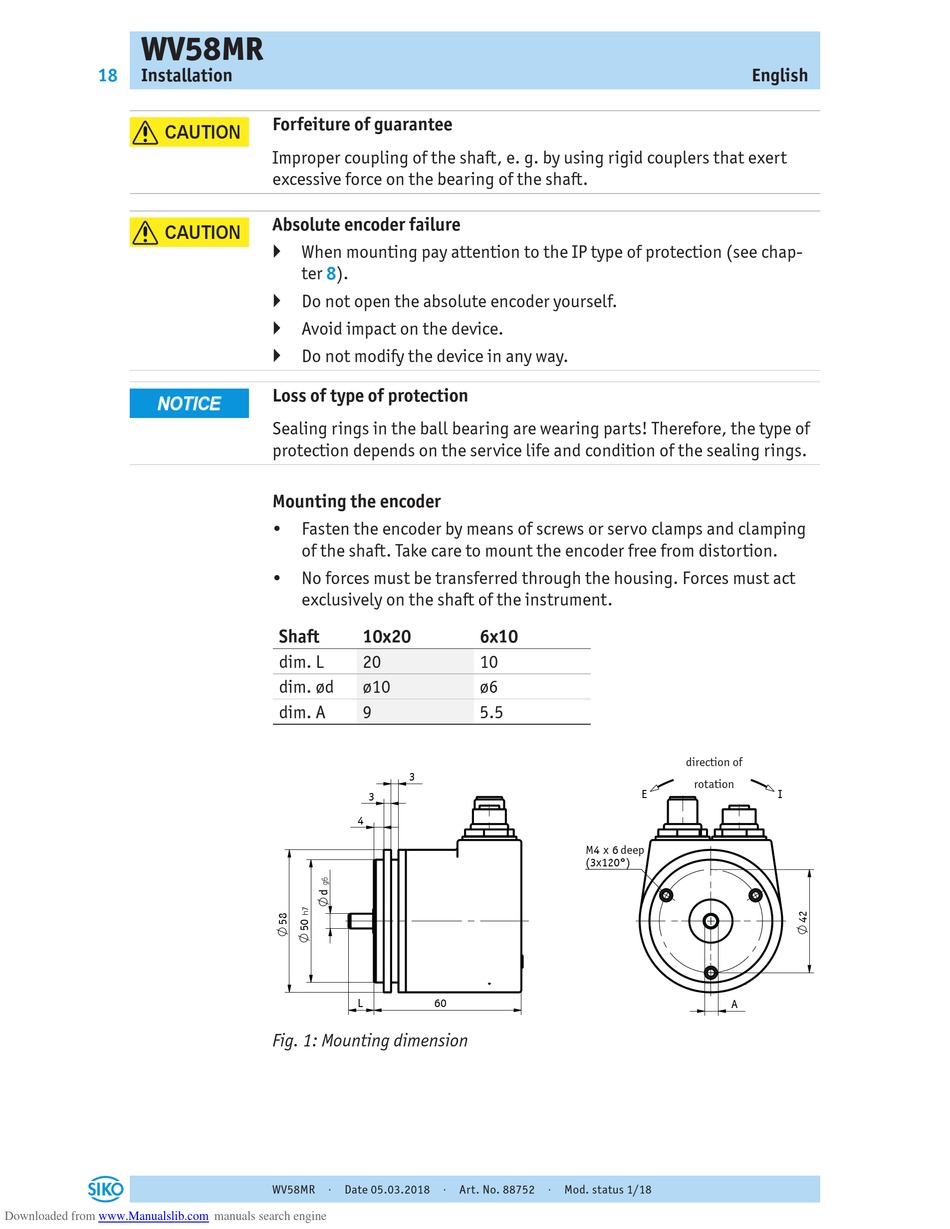

Fig. 1: Mounting dimension
WV58MR · Date 05.03.2018 · Art. No. 88752 · Mod. status 1/18
manuals search engine
6x10
10
ø6
5.5
3
M4 x 6 tief
(3x120°)
60
English
direction of
Drehrichtung
rotation
E I
deep
A
