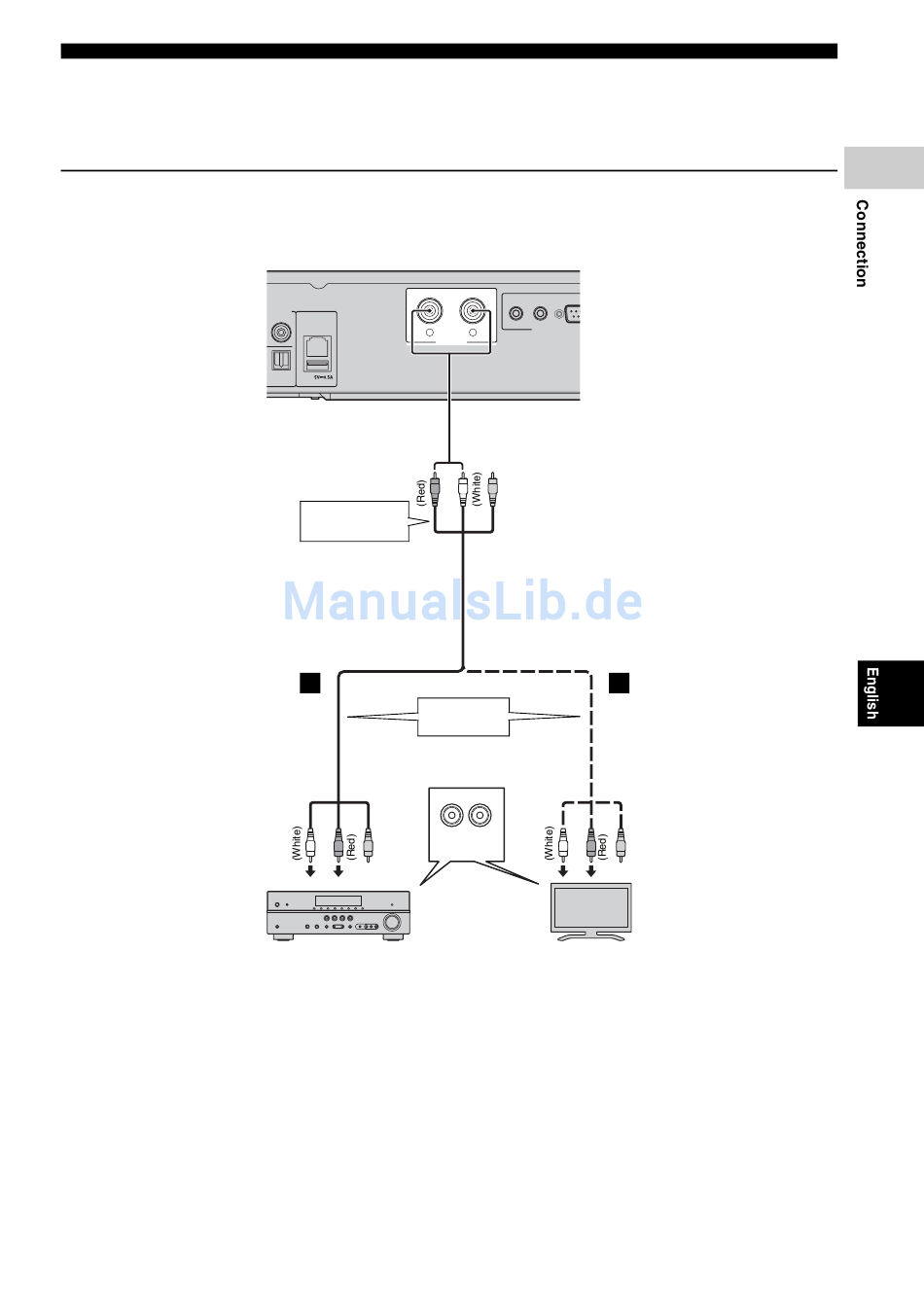

■ Connecting to the audio jacks

– You can connect audio equipment or the TV to the AUDIO OUT L/R jacks.
– Firmly connect an Audio/Video cable (supplied) to the AUDIO OUT L/R jack.
– See page 38 for information on the audio output formats.
Caution!
Do not connect the power cable of this Player until all connections are completed.
This Player
GITAL OUT
COAXIAL
NETWORK
R
AUDIO OUT
OPTICAL
USB
To AUDIO OUT
L/R jack
F
To audio L/R
input jack
(White) (Red)
AV receiver
OUT IN RS-2
REMOTE CONTROL
L
Audio/Video cable
(supplied)
F'
AUDIO
L R
AUDIO IN
TV
Audio connections
