INSTALLATION

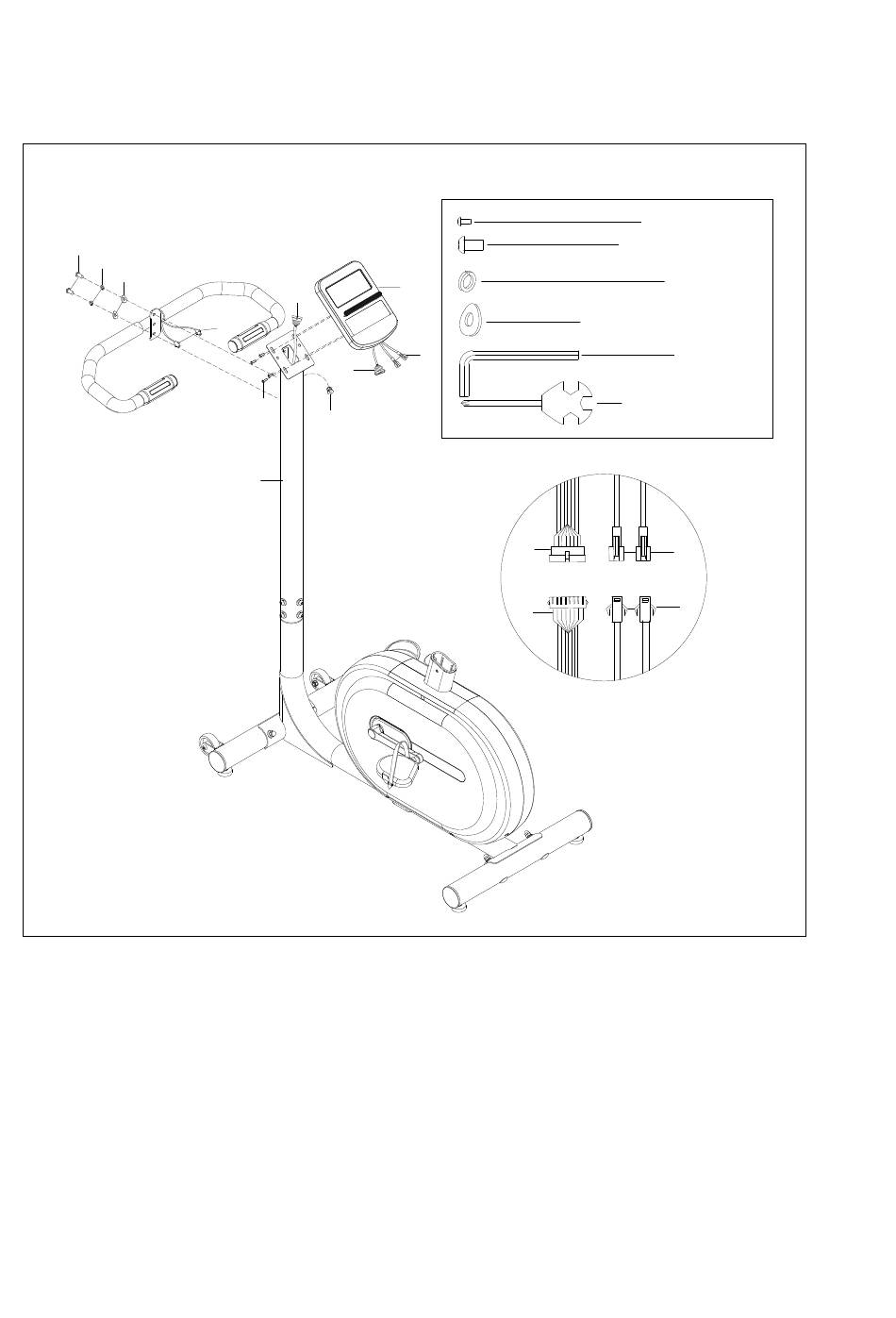

Step 3
12
13
14
• Fix handlebar(3) to handlebar post(2) with inner hex pan head bolts(12), spring washers(13) and
arc washers(14) by using spanner(A);
• Unlock screws(11) from computer(1) and then Insert handle pulse wire(9) into handlebar post(2),
and connect with display wire(1b); then connect extension wire (15) with display wire(1a), at last
press the end cap(10) on it;
• Fix display (1) on the handlebar post(2) with cross pan head screws(11) by wrench(B);
40
15
9
1a
11
10
2
1
1b
1a
15
#11 M5*10 4PCS
#12 M8*20*S5 2PCS
#13 d8 2PCS
#14 d8*Φ20*2*R30 2PCS
#A S5 1PC
#B S13-14-15 1PC
1b
9
