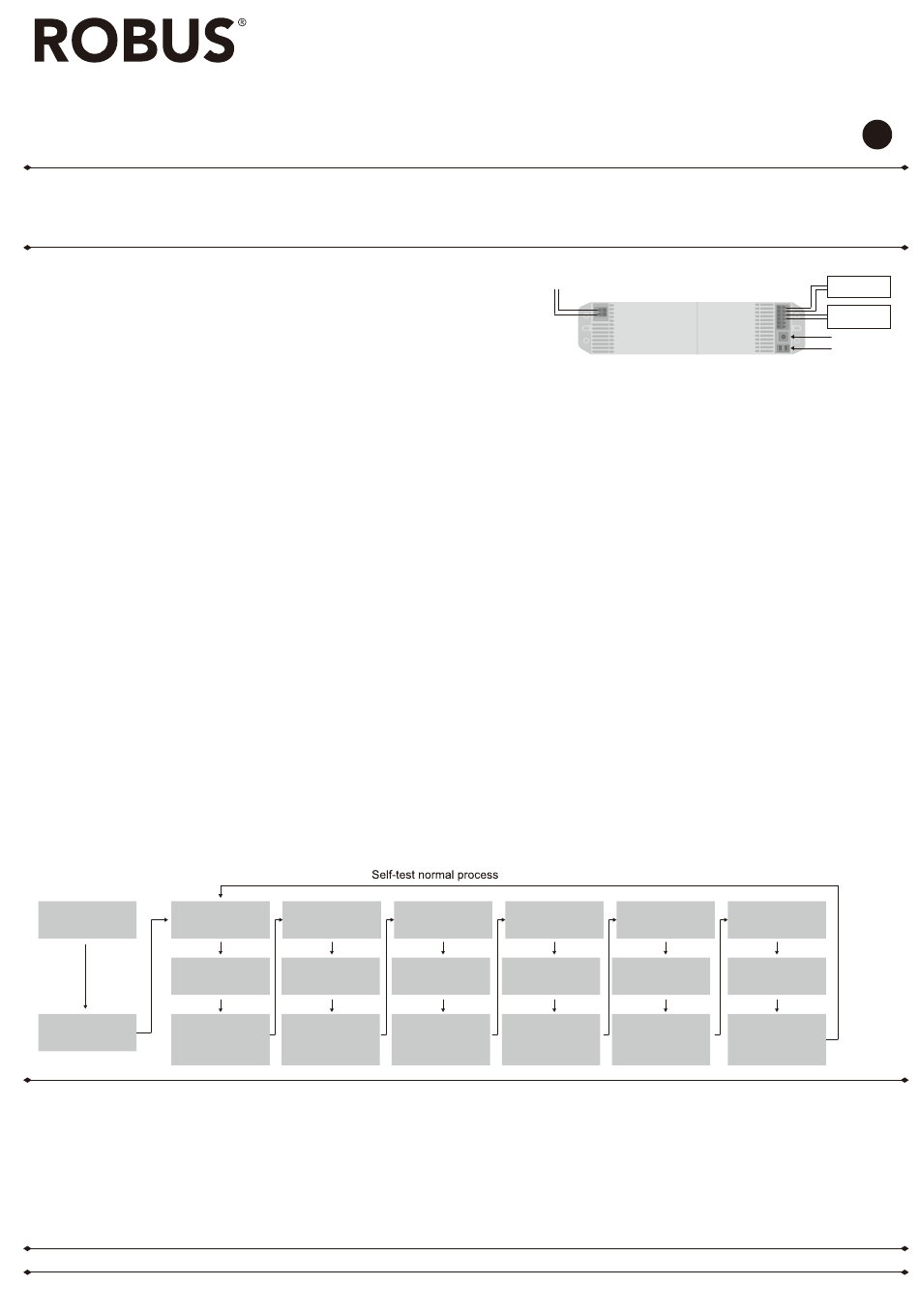

Robus RHA2WEMST-PSU Bedienungsanleitung

HARBOUR 2W, 3HOUR PLUG-IN EMERGENCY PACK WITH LIFEPO4
AND SELF-TEST
RHA2WEMST-PSU
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
! Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or use of this product, consult a competent electrician
Product technical information and specification may change over time without prior notification. For the latest technical information please visit our web site
www.robus.com or robusdirect.com
-10°C < Ta < +40°C, 220V – 240V ~ 50/60Hz, Class II, IP20, battery warranty 3 years
Luminaire is non-dimmable
Suitable for mounting on a normally flammable surface.
Installation
1. Ensure mains supply is switched off before commencing work
2. Safety note! The power supply cord must not be exposed to mechanical damage.
3. Disassemble the fitting base from the fitting.
4. Choose the suitable location on aluminium plate. Align the holes on the emergency pack and aluminium plate,
insert the push rivets into the holes and rotate 90 degree.
5. Fix the emergency indicators into aluminum plate.
6. Connect the wires as per figure 1 & 4.Connect wires from un-switched supply to terminals: Brown/Live to SL, Blue/Neutral to N and Green/ Yellow to
earth. For fitting always on, link terminal "SL" to terminal "PL". When controlled by switch connect switched live wire to terminal SL and permanent
live to PL. Note: if "PL" isn't connected, the light fitting would be non-maintained.
7. Write installation date on emergency pack.
8. Refit aluminum plate to base and ensure that it fits securely.
9. Attach diffuser to base using clips provided.
Note: Please note that when using the RHA2WEMST-PSU it is not possible to wire through the below fittings
RHA10402FT-24, RHA20404FT-24, RHA28405FT-24 & RHA34406FT-24
Self-Test
This is a maintained and non-maintained emergency fitting, when main power is connected, the green charging LED should come on and indicating the
correct battery has Started. When main power is lost, the fitting will go into emergency mode, the ermergency LEDs will be on. Press test button once,
the emergency LEDs will come on for a short period of time. Testing and inspection must be in accordance with local codes of practice.
1. Green LED indicator comes on: Normal charging mode
2. 1-Month Self-Test: Test duration 10s
Manual 1-Month Test: Hold and press test button for 3s and then release, there will be 2 beeps
3. 6-month Self-Test: Test duration 3 hours
Manual 6-month Test: Press and hold test button for 6s and then release, you will hear 3 beeps
LED Indicators
4. Red LED flashes (unit will beep every 45s): Battery fault or battery failure AND emergency LED failure
5. Yellow LED flashes, (unit will beep every 45s): Emergency LED failure
6. Clear memory and re-set test schedule: Disconnect supply to Live terminal, fitting will go into emergency mode. Press in and hold the test button for
more than10s and then release, the emergency LED will then go out. New schedule will start when supply to fitting is connected
After installation, the battery will charge for 24 hours. The self-test function will perform a 3-hour test within the next 24 hours. After the initial test, the
fitting will enter 1-Month Test and 6-Month Test schedules.
1. Daily check that charge indicator LED is working.
2. Monthly check: The status of LED indicator and emergency battery discharge.
3. 6-Month and one-year check: The self-test operation is working, that the LED indicators the Emergency LEDs come on and last for a minimum 3 hours
4. Complete record sheet on installation and retain in maintenance file.
5. Update file with ongoing test records for inspection by fire officer or other duly authorised person
Start: 24-Hour
1-Month Test
Charge
10s discharge
30th day
Emergency battery
During test, all LED
3-hour discharge
indicators are off.
within the next 24hour
After the test
green LED back on
Information for the Product user:
1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE marked with crossed
out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre for waste electrical
equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is important that it is separated
from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household waste, but should be
disposed of according to local WEEE regulations
Issue 1 240220
Note:
2-Month Test 3-Month Test
10s discharge 10s discharge
30th day 30th day
Emergency battery Emergency battery
During test, all LED During test, all LED
indicators are off. indicators are off.
After the test After the test
green LED back on green LED back on
The Installation must be carried out by a qualified electrician
220/240V
N L
~50/60Hz
4-Month Test 5-Month Test
10s discharge 10s discharge
30th day 30th day
Emergency battery Emergency battery
During test, all LED During test, all LED
indicators are off. indicators are off.
After the test After the test
green LED back on green LED back on
INSTRUCTION MANUAL
Figure1
+ Red
- Black
+ Red
- Black
Test Switch
LED indicator
6-Month Test
( Half a Year )
3hour discharge
30th day
Emergency battery
During test, all LED
indicators are off.
After the test
green LED back on
EN
From LED
Driver
Output
to LED
