3.2.2

Positioning for transport

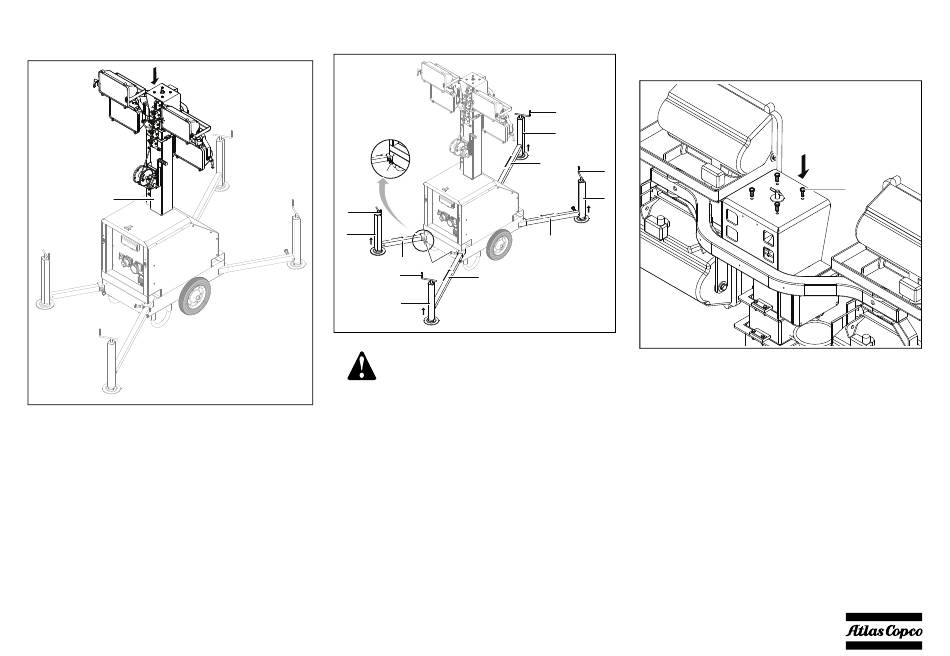

1. Make sure the mast is lowered (1).
1
2. Use the handle at the top of each foot (2) to retract
the 4 feet (3).
5
2
3
4
1
2 4
3
Adjust the height of the supporting
feet gradually in order to ensure the
stability of the unit.
3. Retract the stabilizers (4) and ensure their locking
pins (5) following the reverse order of the
procedure described in
operation" on page 19.
- 21 -
4. Loosen the 4 screws of the floodlight support (6)
and rotate the support 90° (transport position).
Tighten the 4 screws again.
2
3
4
2
3
4
"Positioning for
6
