Please read this operating instruction carefully before using
your Retevis RT30 two way radio, including the part on
Product Safety and RF Energy Exposure Compliance
CAUTION
Product Inspection
Before initial use, please check if the product
inside the box is in good condition or not. If
there are any signs of damage or missing
parts, please feel free to contact the carrier
or the seller.

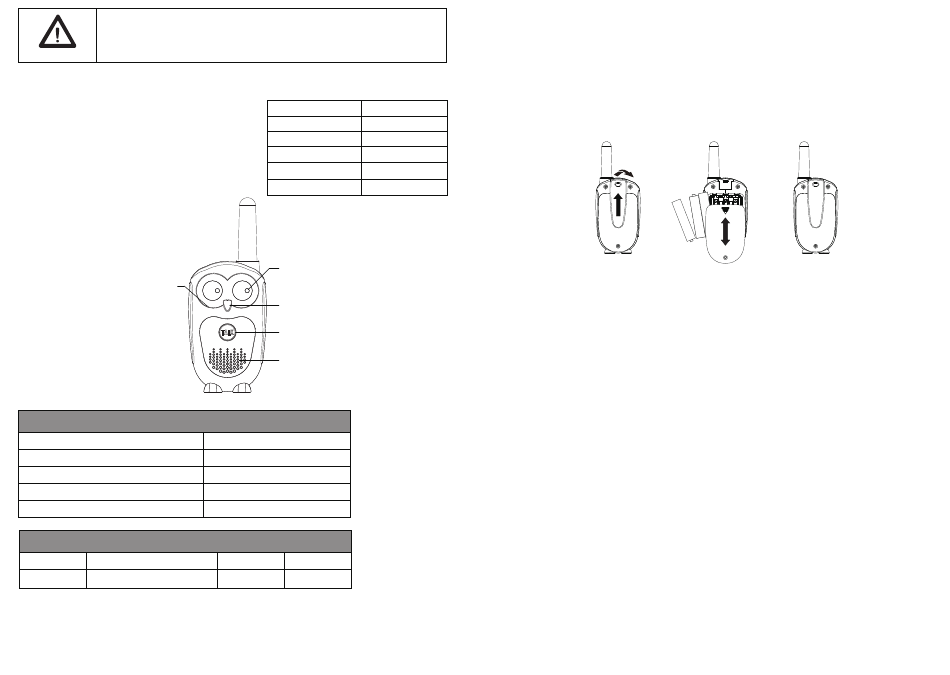

Radio Parts and controls
Microphone
Specification
TECHNICAL PARAMETERS
Operating voltage
Operating temperature range
Overall dimensions
Weight
Rf power
Working Frequency
Europe 446.09375MHz
US 467.5625MHz
Installation
How to assemble and remove the belt clip
Slide the clip into the slot on the back of the radio until it is snapped into place.
Item Included Quantity(Pcs)
Walkie Talkie
Belt Clip
Binoculars
Hand Strap
User's Guide
LED Indicator
On/Off Power Button
Call Tone
TALK Button
Speaker
3.6~4.5V
-20℃~50℃
119*48*35mm
96g
0.5W
DCS D503N
DCS D306N
1
-To remove
Gently pull the lock tab, and then push up the belt clip to remove it from the radio.
How to install or replace batteries
Make sure the radio is turned off;
Remove the belt clip;
Slide and lift the battery compartment cover;
Insert 3 AAA batteries with correct polarity into per radio;
Close the battery cover and attach the belt clip.
2
(Note: Please remove the batteries if the units are not used for a long time)
2
1
1
1
Operation
How to turn on/off the radio
• Press and hold (On/Off power button) for three seconds. A short audible beep and
a flash of the LED indicator shows that the radio is on;
• To turn off the radio, you need press and hold until an audible beep is heard.
Receiving
The radio is ready to receive signals when it is turned on and no transmitting is
made. The LED indicator glows green when signals are being received.
Transmitting
• To talk to another person, press and hold "TALK" button. The LED indicator glows
red when the radio is transmitting.
• Please speak directly to the microphone and keep it 2 inches from your mouth to
get maximum clarity.
• Release the button when you finish talking.
Call Tone
• Allow you to transmit a tone to other radios in your group to alert them that you
want to talk or you've finished talking.
• When the radio is on, press once to send a call alert. Then all the other radios
operating on the same channel and within the communication range will receive it.
(Note: There is only one call tone available on this unit)
TOT(Time-out Timer)
The radio will automatically stop transmitting when the "TALK" button is held for
180 seconds.
Automatic Turn off
The radio will automatically power off after 30 minutes of inactivity.
Pic 1 Pic 2
2
Pic 3
